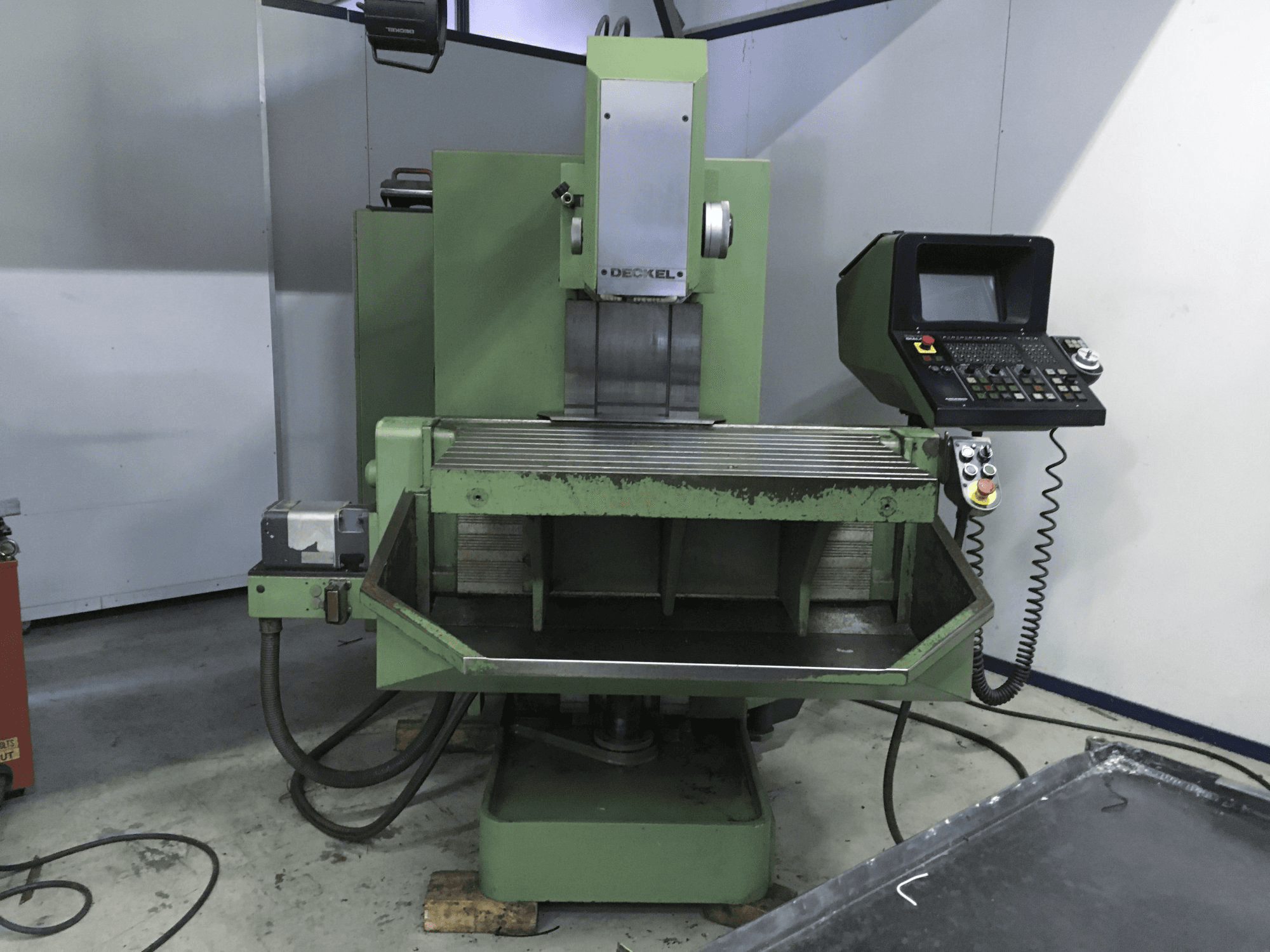

DECKEL FP4NC Milling Machine

Show in original language

This DECKEL FP4NC Milling Machine was made in Germany in 1991 and has been operative for approximately 28000 production hours since then. Equipped with a Grundig Dialog 11 Control unit, this model stands out due to its large table with 800 kg maximum workpiece weight and has mainly worked with aluminum and steel during the past. An additional toolholder is included.

Overview

brand: DECKEL
year: 1991
MODEL: FP4NC
production hours: 28000
application type: Milling
Location: Netherlands
machine type: Universal Machining Centre
availability: Sold

Technical Information - DECKEL FP4NC

General Data

Measurements width: 2200 mm
Measurements depth: 2000 mm
Measurements height: 1750 mm
Machine weight: 1600 kg

Control Unit

Model: Dialog 11

Main drive

Number of spindles: 1
Spindle speed range: 5000 1/min

Movement

X-AXIS Movement: 560 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 450 mm

Workpiece

Workpiece drm: 80 mm
Workpiece x: 485 mm
Workpiece y: 385 mm
Workpiece z: 420 mm
Workpiece weight: 800 kg

Table

Outer length: 800 mm
Outer width: 450 mm

Tools

Max weight: 450 kg
Max tool diameter: 40 mm
Max tool length: 180 mm

Media

Main electronic connection: 380 V
Power consumption: 18 kVA

Additional equipment

- 1x Toolholder

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
