DAEWOO Puma 230SC

Photo Gallery

DAEWOO - Puma 230SCIT-TUR-DAE-2001-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Daewoo Puma 230SC Lathe

Show in original language

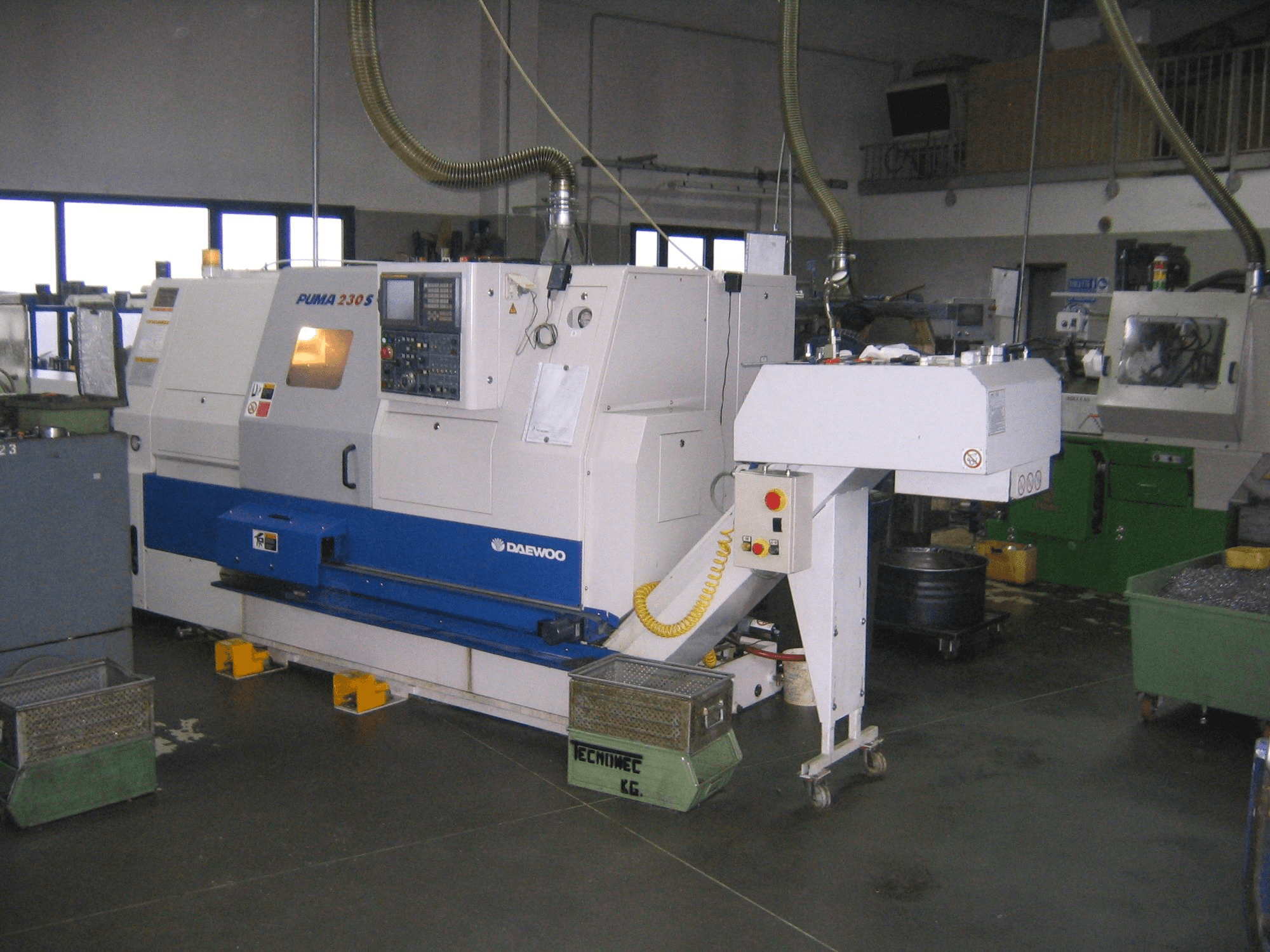

This Daewoo Puma 230SC Lathe was manufactured in the year 2001 in Korea. It is equipped with a FANUC Series 18iT control unit and has 4 axis. The machine has SPINDLE TURNS 1 of 3500 rpm and SPINDLE TURNS 2 of 6000 rpm, includes many original tool holders and tool holders, is in good condition, and is well maintained.

Overview

brand: DAEWOO
year: 2001
MODEL: Puma 230SC
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - DAEWOO Puma 230SC

Control Unit

Control Brand: FANUC
Control Model: Series 18iT

Dimensions

Machine Weight: 4240 kg

Movement

Number of Axes: 4
X-axis Travel: 205 mm
Z-axis Travel: 580 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Spindle original never used with 3 tender jaws.
Spindle bearings 1 and 2 replaced
Twisting on x, z axes redone, crankcase replaced
Many original tool holders and tool holders, some never used.
Machine in production and fully functional.
Bar loader with 2 series of guides
Overhauled air system in 2021 and oil pump guide replaced in 2018, fully functional.
N. Spindle turns 1: 3500 rpm
N. Spindle turns 2: 6000 rpm

Technical Machine Benefits

Bar passage diameter : 75 mm
Main spindle and diameter sub spindle: 42 mm
Spindle 1 with ba60 toolholder (many included) bellegrandi asa8
Reduction diameter :42 mm
Reduction for double cone collets (some included) up to diameter 75 mm
Counter spindle with jaws and soft jaws
(many included, collet holder bellegrandi from d. 42
Numerous ba42 pliers.
B axis guides from year 2017, spindle belts and spindle fan 1 replaced in 10/2022.
Lns sprint 2: 80mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
