- Correa A-20/44 Milling Machine

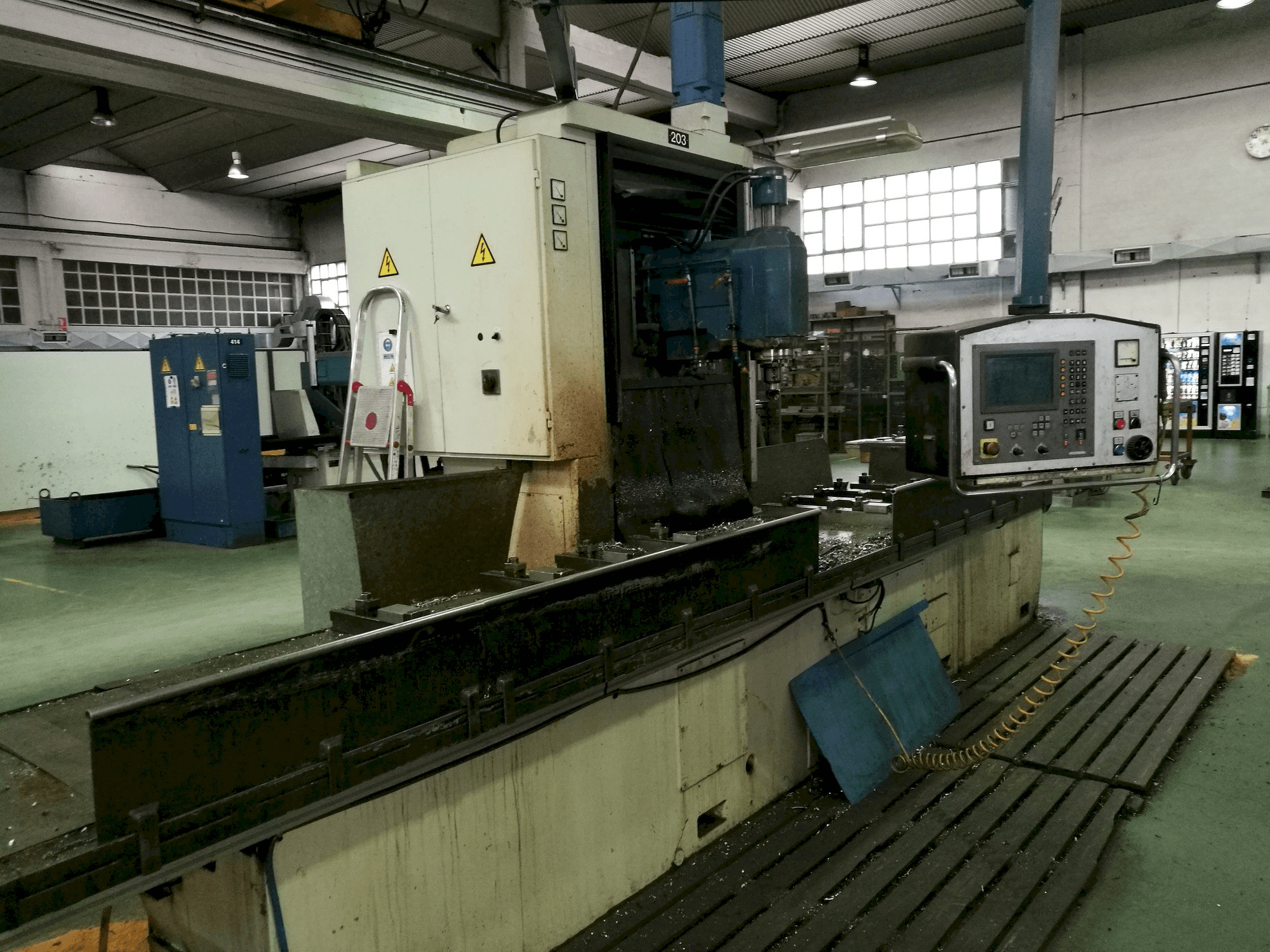

This Correa A-20/44 Milling Machine was manufactured in Spain in 1983 and has been operative for 60000 hours since then. Equipped with a Heidenhain 310 Control unit, this double spindled machine can operate with a speed up to 2000 rpm. It stands out for its wide range of movements and a well maintained status.
Overview
- brand: Correa
- year: 1983
- MODEL: A20-44
- production hours: 60000
- application type: Milling
- Location: Spain
- machine type: Bed Type Milling Machine
- control unit brand: HEIDENHAIN
Technical Information - Correa A20-44
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: 310
Dimensions
- Machine Depth: 2200 mm
- Machine Height: 2750 mm
- Machine Weight: 12500 kg
- Table Length: 4400 mm
- Table Width: 800 mm
Movement
- X-axis Travel: 4100 mm
- Y-axis Travel: 1000 mm
- Z-axis Travel: 1000 mm
Technical Specification
- Spindle Speed: 2000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- 2 spindles
- Wide range of movements
Machine History
End product
Blades
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
