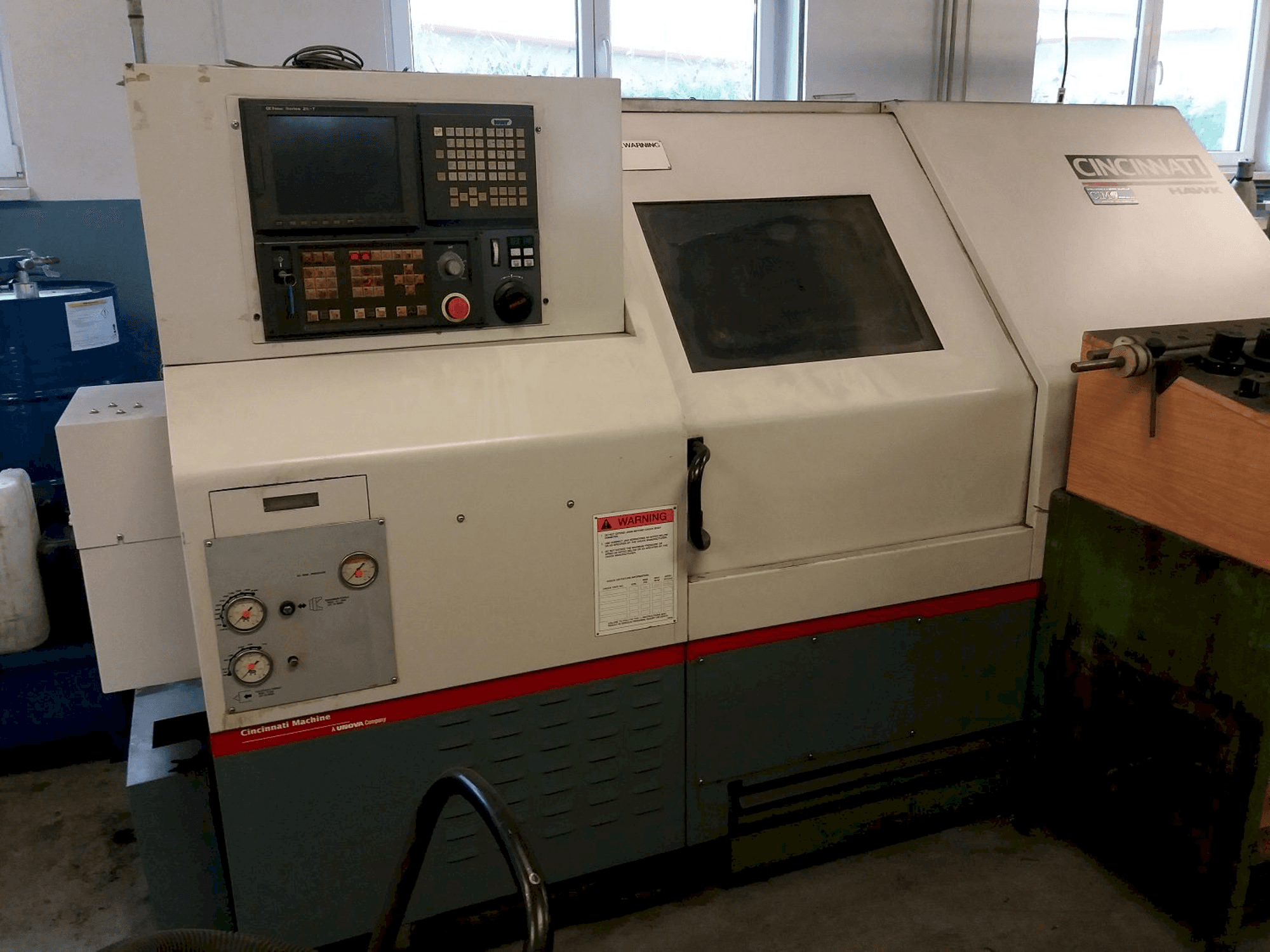

This Cincinnati HAWK-200M Lathe was built in 2002 in the United Kingdom and has been operative for 20000 hours since then. Equipped with a FANUC 21iT Control unit, this machine can perform with a spindle speed up to 4500 rpm. It presents excellent conditions.
Overview
- brand: Cincinnati
- year: 2002
- MODEL: HAWK-200M
- production hours: 20000
- application type: Turning
- Location: Czech Republic
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Cincinnati HAWK-200M
Control Unit
- Control Brand: FANUC
- Control Model: 21iT
Dimensions
- Machine Depth: 1900 mm
- Machine Height: 1800 mm
- Machine Weight: 4500 kg
Movement
- X-axis Travel: 245 mm
- Z-axis Travel: 520 mm
Technical Specification
- Number of Tools: 12
- Spindle Power: 15 kW
- Spindle Speed: 4500 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Very good condition, has been rarely used in the last 10 years
Technical Machine Benefits
- Max. Turning diameter 324 mm
- Max. Swing over bed 530 mm
- Max. Turning length 520 mm
- Max. Bar thru spindle dia. 65 mm
- Spindle nose a2-6
- Tailstock quill dia. 95 mm (taper 5mt)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
