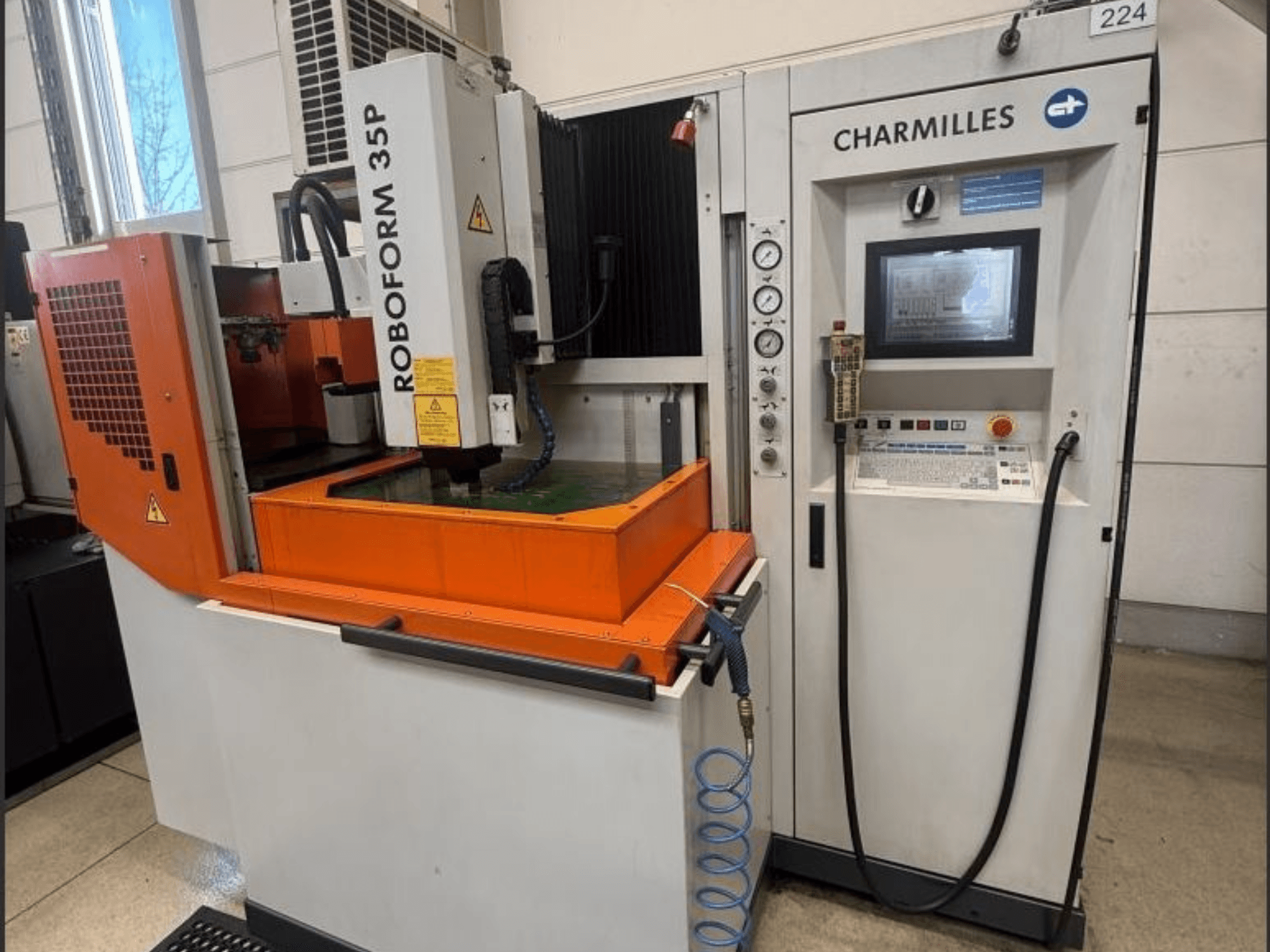

This 3-axis CHARMILLES ROBOFORM 35P die-sinking EDM machine was manufactured in 2002. It features a travel range of 350 mm in the X-axis, 250 mm in the Y-axis, and 300 mm in the Z-axis, with a maximum workpiece weight of 500 kg. The machine is equipped with a 32-position rotary tool changer and a high-speed Z-axis for enhanced performance. If you are looking to get high-quality die-sinking capabilities, consider the CHARMILLES ROBOFORM 35P machine we have for sale. Contact us for further details.
Overview
- brand: CHARMILLES
- year: 2002
- MODEL: ROBOFORM 35P
- application type: EDM
- Location: Germany
- machine type: Die-Sinking EDM Machine
- control unit brand:
Technical Information - CHARMILLES ROBOFORM 35P
Dimensions
- Machine Weight: 2500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 350 mm
- Y-axis Travel: 250 mm
- Z-axis Travel: 300 mm
Additional Information
Table dimensions: 400 x 500 mm
Maximum workpiece weight: 500 kg
Dielectric capacity: 400 l
Rotational axis: C-axis
Z-axis type: High-speed Z-axis
Tooling interface: Combi chuck
Tool changer: 32-position rotary changer
Electrical: 380 V, 3 Ph, 50 Hz, 5 kVA, 5 A
Safety: Integrated fire extinguishing system
Additional equipment
Eckert cooling unit
Measuring probe (touch probe)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
