- C.B. Ferrari D432 Machining Center

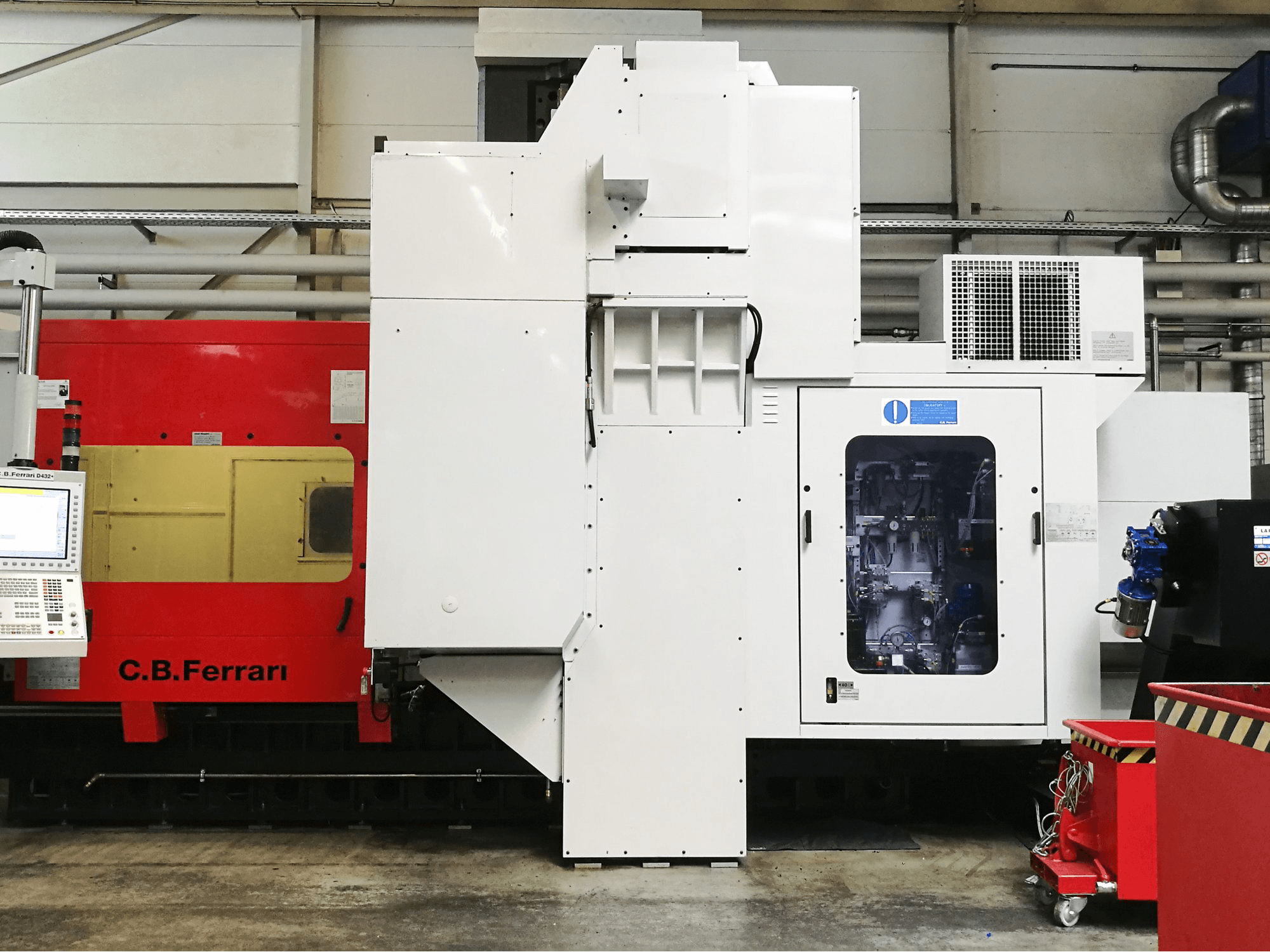

This C.B. Ferrari D432 Machining Center was built in 2014 and constitutes the very promise of quality and reliability. This machine has a production record of 14891 working hours, of which 6534 hours correspond to its spindle, and operates through an HEIDENHAIN iTNC530 Control unit with remote control. This machine is equipped with its own internal cooling system and integrated 48-fold zero-point clamping system for maximum process efficiency, and stands out through its large working table (2500 x 1000 mm). In the past, this D432 has produced dies and molds for a variety of industries, and has received a careful maintenance by German producer.
Overview
- brand: C.B. Ferrari
- year: 2014
- MODEL: D432
- production hours: 14891
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - C.B. Ferrari D432
General Data
- Measurements width: 8000 mm
- Measurements depth: 6000 mm
- Measurements height: 5200 mm
- Machine weight: 20000 kg
Control Unit
- Brand: HEIDENHAIN
- Model: iTNC530
- Remote control: Yes
Main drive
- Number of spindles: 1
- Spindle speed range: 24000 1/min
- Tool taper: HSK 63
Movement
- X-AXIS Movement: 3000 mm
- X-AXIS Feed Force: 10000 kg
- X-AXIS Rapid traverse: 40 m/min
- Y-AXIS Movement: 2200 mm
- Y-AXIS Feed Force: 10000 kg
- Y-AXIS Rapid traverse: 40 m/min
- Z-AXIS Movement: 1000 mm
- Z-AXIS Feed Force: 10000 kg
- Z-AXIS Rapid traverse: 40 m/min
Table
- Outer length: 2500 mm
- Outer width: 1000 mm
Tools
- Slots in storage: 60
Media
- Chip conveyor: Yes
- Internal cooling: Yes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
