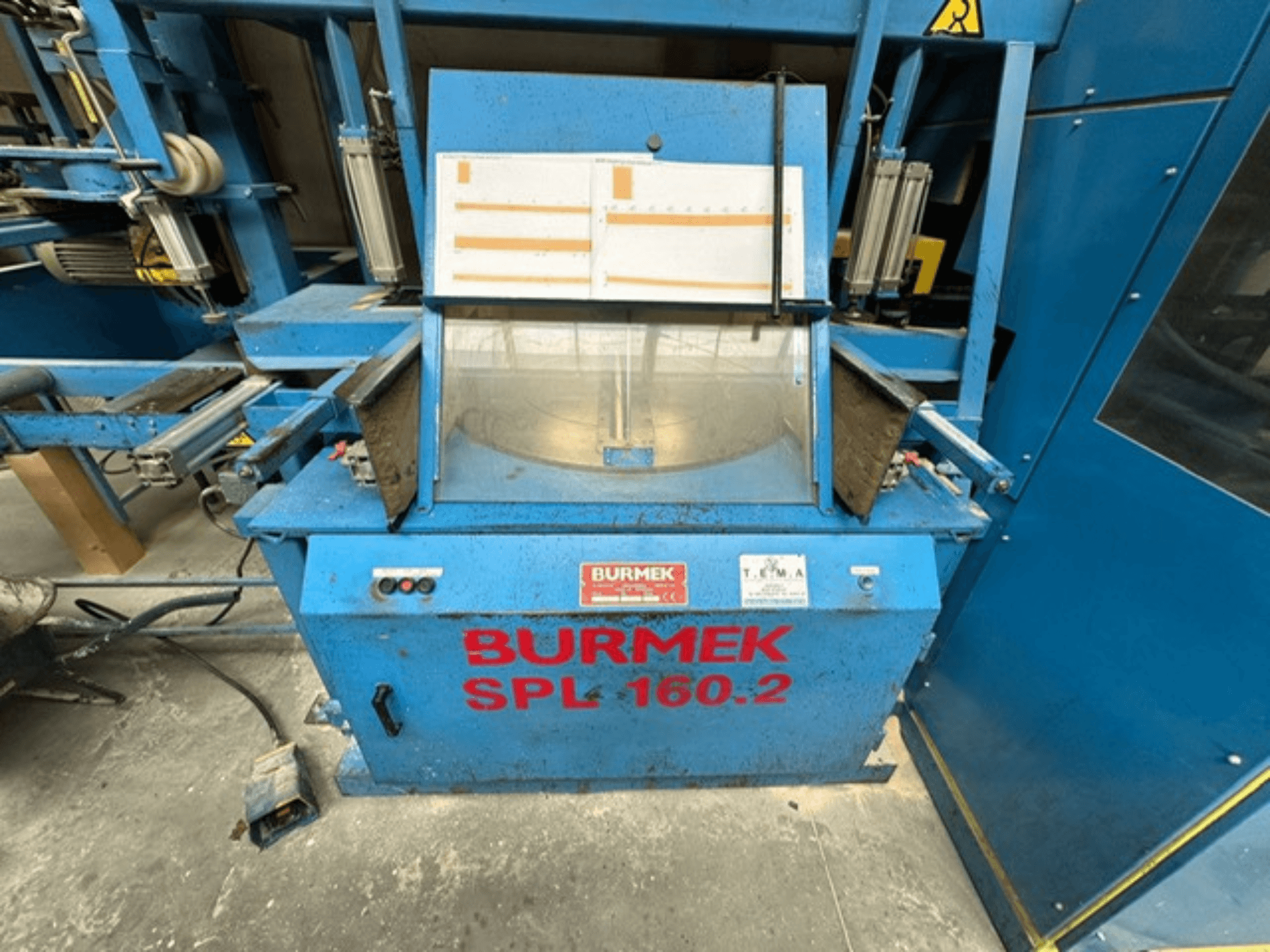

This 3-axis BURMEK SPL 160.2 was manufactured in 1996. It features a maximum workpiece length of 13,000 mm, a maximum workpiece height of 180 mm, and a maximum workpiece width of 250 mm. With a robust machine weight of approximately 3,900 kg, it is designed for durability. If you are looking to get high-quality woodworking capabilities, consider the BURMEK SPL 160.2 machine we have for sale. Contact us for further details.
Overview
- brand: BURMEK
- year: 1996
- MODEL: SPL 160.2
- application type: Other Woodworking Machinery
- Location: Germany
- machine type: Other (Wood)
Technical Information - BURMEK SPL 160.2
Dimensions
- Machine Weight: 3900 kg
Additional Information
Max. workpiece length: 13,000 mm
Max. workpiece height: 180 mm
Min. workpiece height: 25 mm
Max. workpiece width: 250 mm
Min. workpiece width: 50 mm
Operating temperature: 5–45 °C
Required floor: concrete floor 100 mm
Relative humidity: 10–80% (no condensation)
Operating voltage: 3x380 VAC
Frequency: 50 Hz
Electrical connection value: 3x35 A
Pneumatic connection: 6 bar (3/4")
Air consumption: 1,000 l/min
Extraction nozzle diameter: 200 mm
Extraction air speed: 25 m/s
Extraction air capacity: 2,500 m³/h
Extraction pressure drop: 565 Pa
Noise level (operating): 79 dB(A)
Noise level (idle): 72 dB(A)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
