- BOSCHERT EL 500 Digital Punching machine

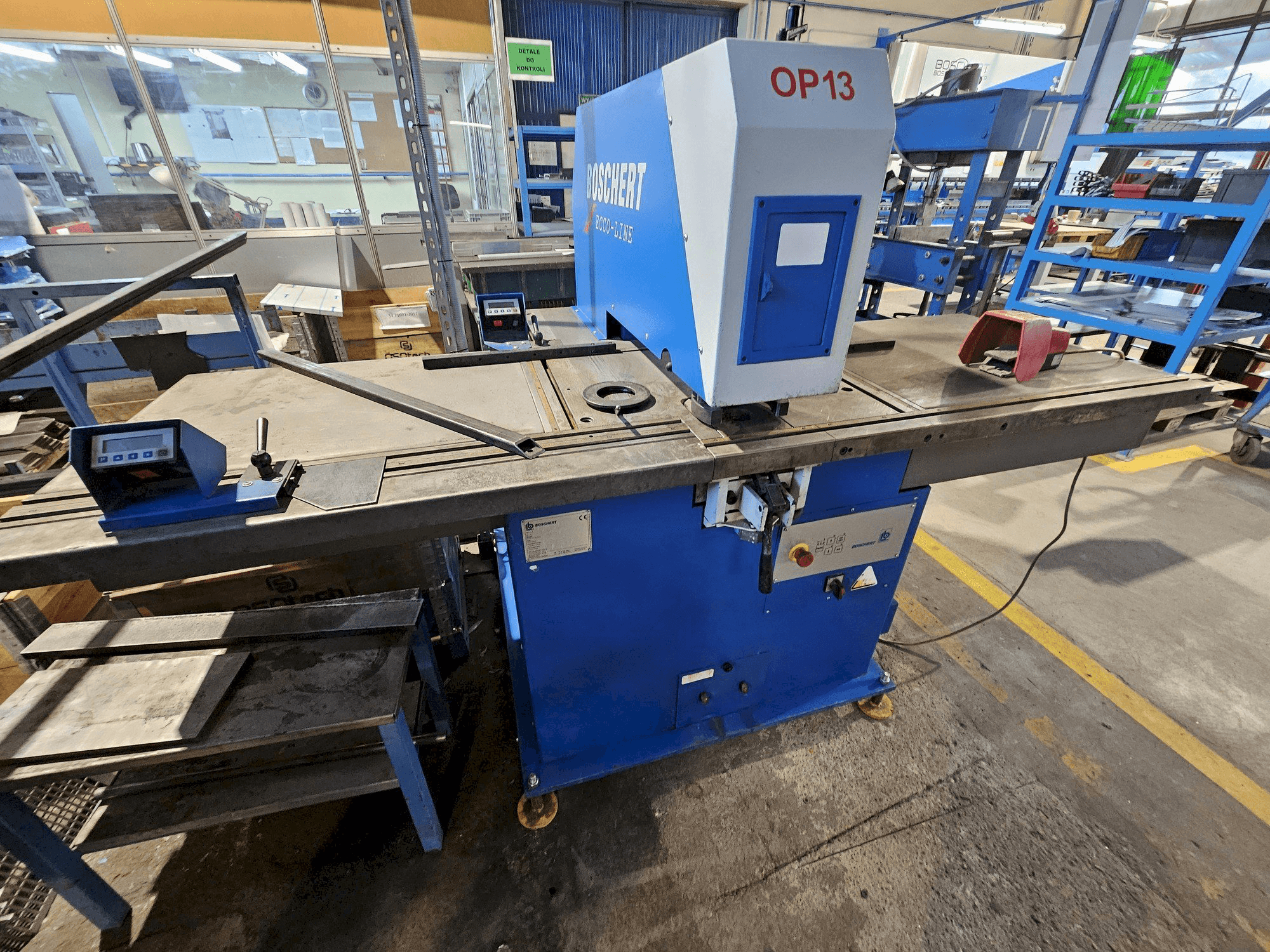

This BOSCHERT EL 500 Digital Punching machine was manufactured in the year in Germany. It is equipped with a Boschert control unit. The machine has a punching force of 280 kN.
Overview
- brand: BOSCHERT
- year: 2015
- MODEL: EL 500 Digital
- application type: Punching
- Location: Poland
- machine type: Turret Punch Press
- availability: Sold
- control unit brand: BOSCHERT
Technical Information - BOSCHERT EL 500 Digital
General Data
- Measurements width: 2400 mm
- Measurements depth: 1580 mm
- Measurements height: 1540 mm
- Machine weight: 2500 kg
Control Unit
- Brand: BOSCHERT
Main drive
- Punching force: 280 kN
Additional Information
- Technical Machine Benefits:
- - Working area: 570 x 1200 mm
- - Machine frame reach (y-axis): 500 mm
- - Economical, rigid construction
- - Easy access to the tool station for retooling
- - Capability to mount tools up to Ø 105 mm in size
- - Max material thickness for processing up to 12. 7 mm
- - Standard trumpf tool system providing short retooling time of about 15 s
- - Extended head stroke allowing punching of holes in profiles
- - T-slots along with a built-in ruler in the machine table enable precise basing of the material being processed
- - Passive and active scraper system
- Qualitative Machine Benefits:
- - 3 types of operation: setting, single stroke, continuous stroke
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
