Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
BORCHÊ - BS400 EconomicPL-INJ-BOR-2017-00001
Do you have further questions? Contact us.

Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com

- GINDUMAC
- Products
- Plastics Processing Machinery
- BORCHE BS400 Economic Injection moulding machine

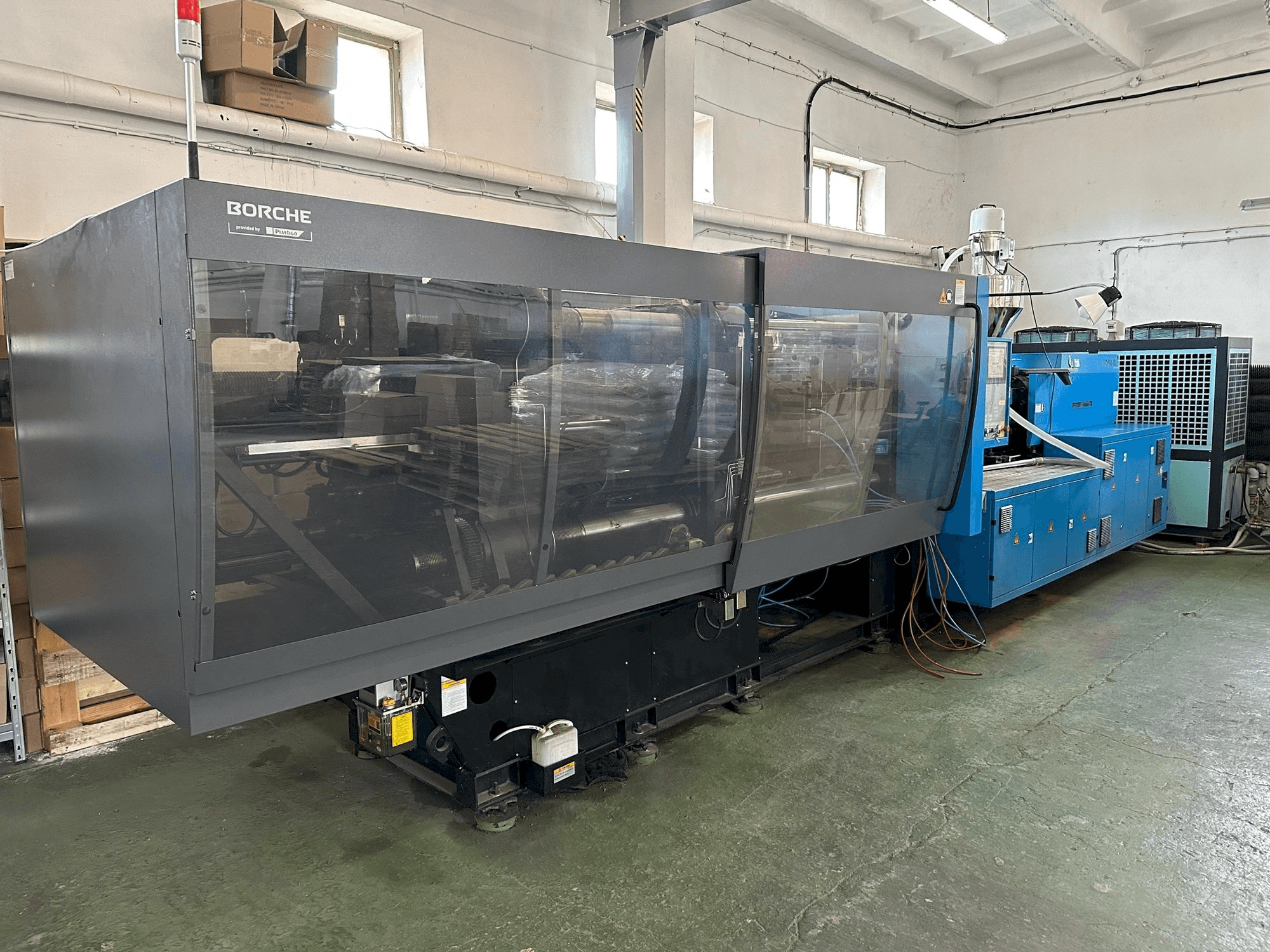

This BORCHE BS400 Economic Injection moulding machine was manufactured in the year 2017 in China and has 2453 production hours. It is equipped with a KEBA BORCHE control unit. The machine has a clamping force of 4000 kN and a screw diameter of 80 mm.
Overview
- brand: BORCHÊ
- year: 2017
- MODEL: BS400 Economic
- production hours: 2453
- application type: Injection Moulding
- Location: Poland
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
Technical Information - BORCHÊ BS400 Economic
General Data
- Measurements width: 8400 mm
- Measurements depth: 2180 mm
- Measurements height: 2240 mm
- Machine weight: 15500 kg
Control Unit
- Model: BORCHE
Injection Unit
- Screw diameter: 80 mm
- Stroke volume: 2010 CM³
- Injection pressure: 162 MPa BAR
Clamping unit
- Clamping force: 4000 kN
- Opening stroke: 655 mm
- Max open daylight: 1375 mm
- Distance between bars: 730 x 1030 mm
- Mould height min: 245 mm
- Mould height max: 720 mm
- Size of mold platens: 1060 x 1030 mm
- Ejector stroke: 205 mm
- Ejector force for / back: 111.3 kN
Media
- Main electronic connection: 380V / 50 Hz
- Power consumption: 74.3 kW
Additional Information
- Technical Machine Benefits:
- - Number of heating zones: 6
- - Motor power: 45 kw
- - Hydraulics pressure: 17. 5 mpa
- - Number of ejector pins: 8 + 4 + 1
- Qualitative Machine Benefits:
- - Machine connected ready for tests. Full documentation available. Very good condition.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Alessandro Martini
Payment Terms
Payment in advance
Asset Financing
