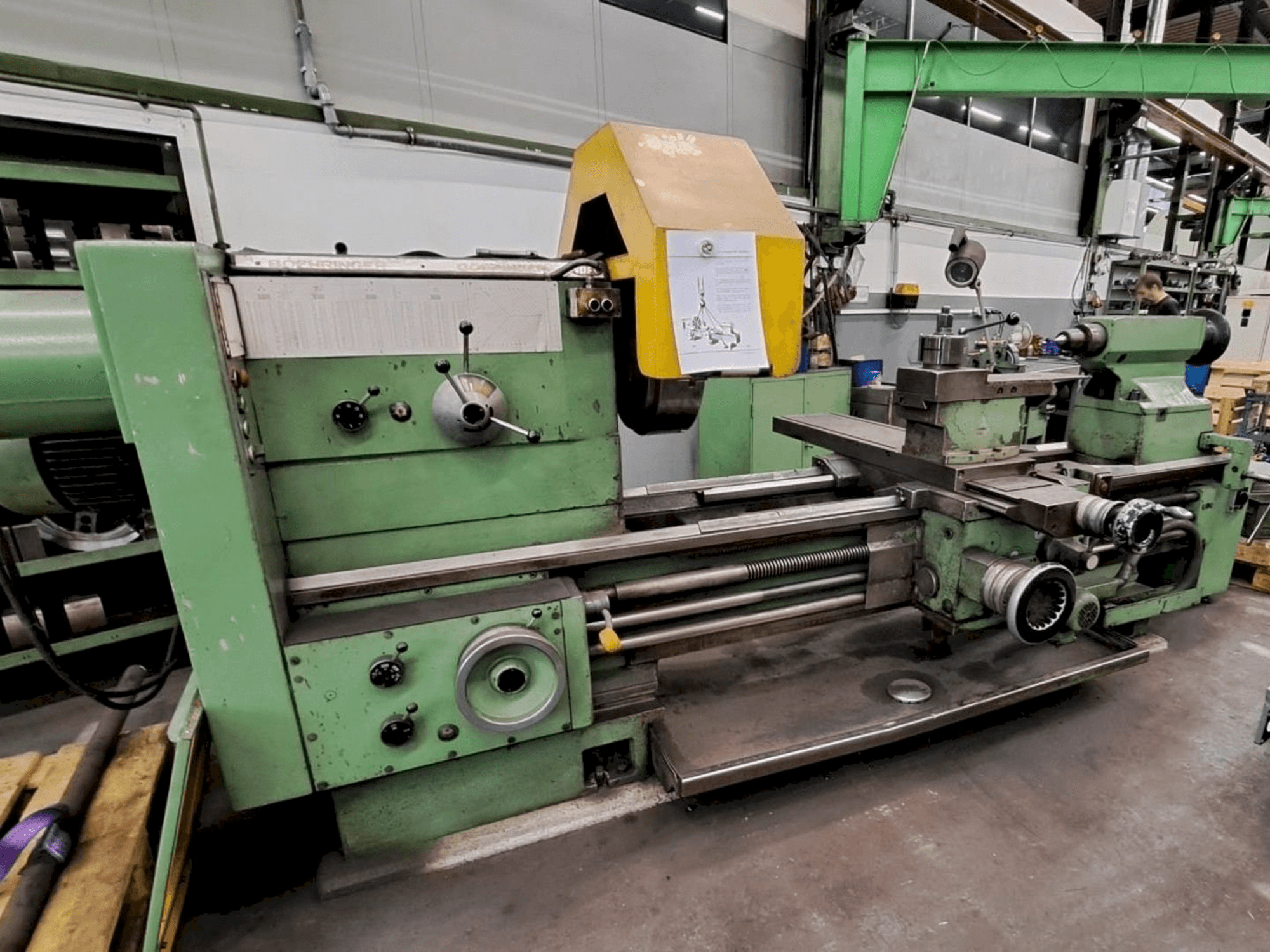

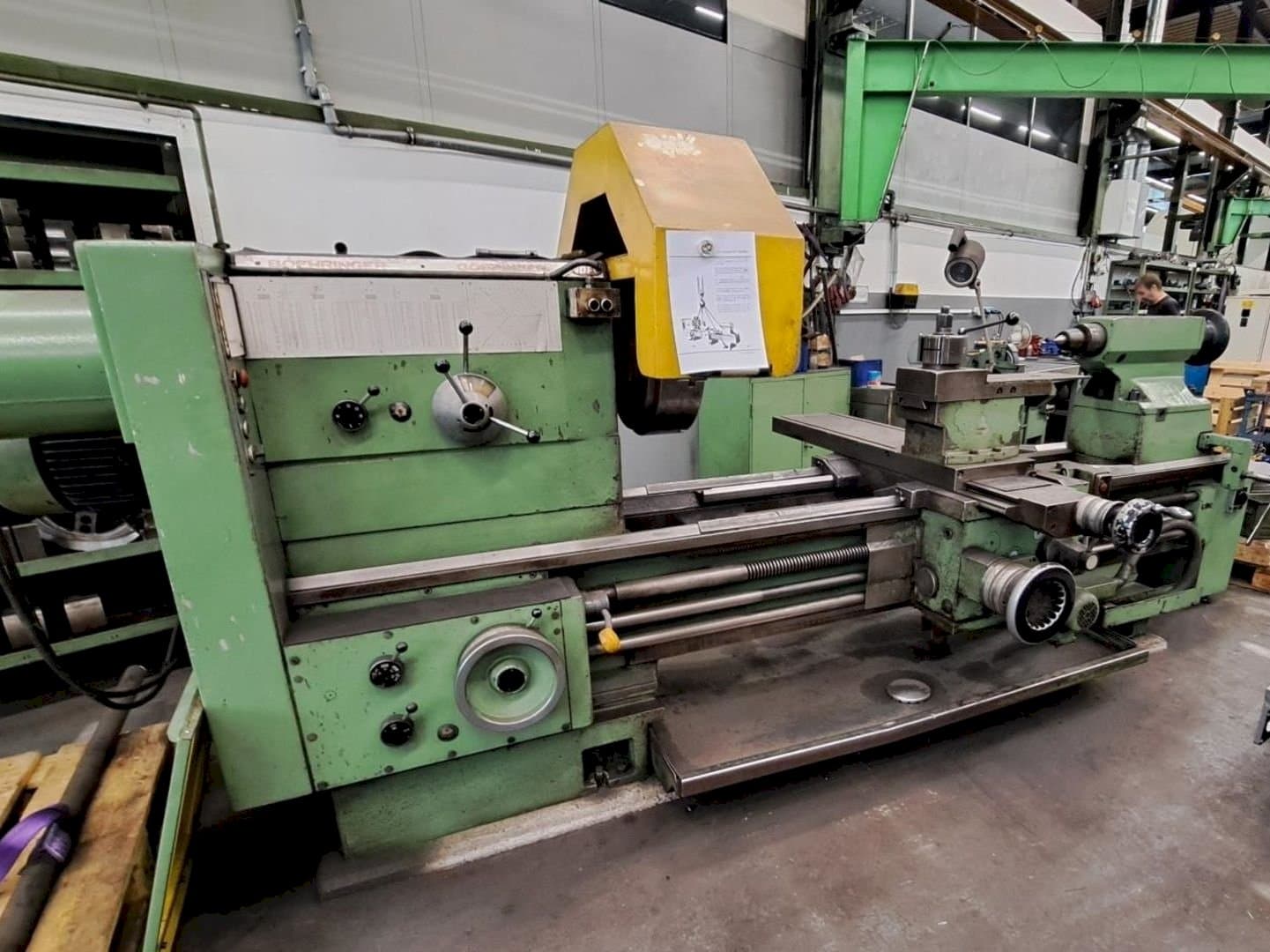

BOEHRINGER VDF V 800 lathe

Show in original language

This BOEHRINGER VDF V 800 lathe was manufactured in the year 1977. The machine has a spindle speed of 5.6 - 1120 rpm, max. turning diameter over bed of 820 mm and a max. turning length of 2000 mm.

Overview

brand: BOEHRINGER
year: 1977
MODEL: VDF V 800
application type: Turning
Location: Poland
machine type: Lathe
availability: Immediately
GINDUMAC ID: PL-TUR-BOE-1977-00001

Technical Information

General Data

Measurements width: 5000 mm
Measurements depth: 2000 mm
Measurements height: 1600 mm
Machine weight: 5400 kg

Main drive

Spindle speed range: 5.6 - 1120 rpm 1/MIN

Media

Main electronic connection: 380 / 220 V
Power consumption: 25 kw

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum turning diameter over the bed: 820 mm
- - Maximum turning diameter over slide: 575 mm
- - Maximum turning length: 2000 mm
- - Center distance: 2200 mm
- - Center height: 320 mm
- - Spindle opening: 82 mm
- - Number of spindle speed stages: 24
- - Minimum spindle speed: 18 1/min
- - Maximum spindle speed: 1400 1/min
- - Feed rate - longitudinal: 0. 05 - 2. 8 mm/u
Qualitative Machine Benefits:
- - Feed rate - transverse: 0. 04 - 1. 4 mm/u
- - Spindle opening: 120 mm
- - Spindle head: din 55022

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
