Biglia B 500 M

Photo Gallery

Biglia - B 500 MIE-TUR-BIG-1994-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Biglia B 500 M Lathe

Show in original language

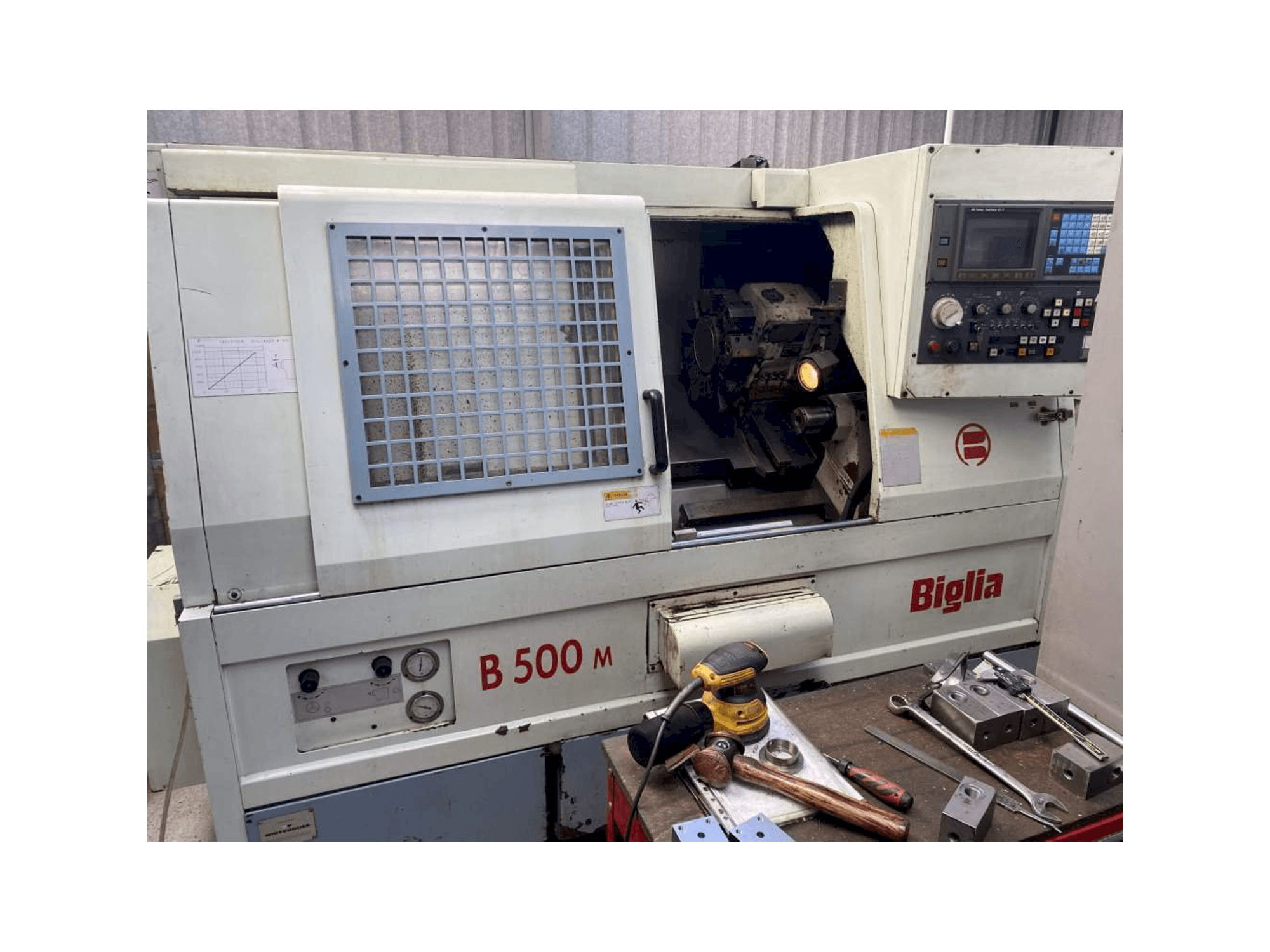

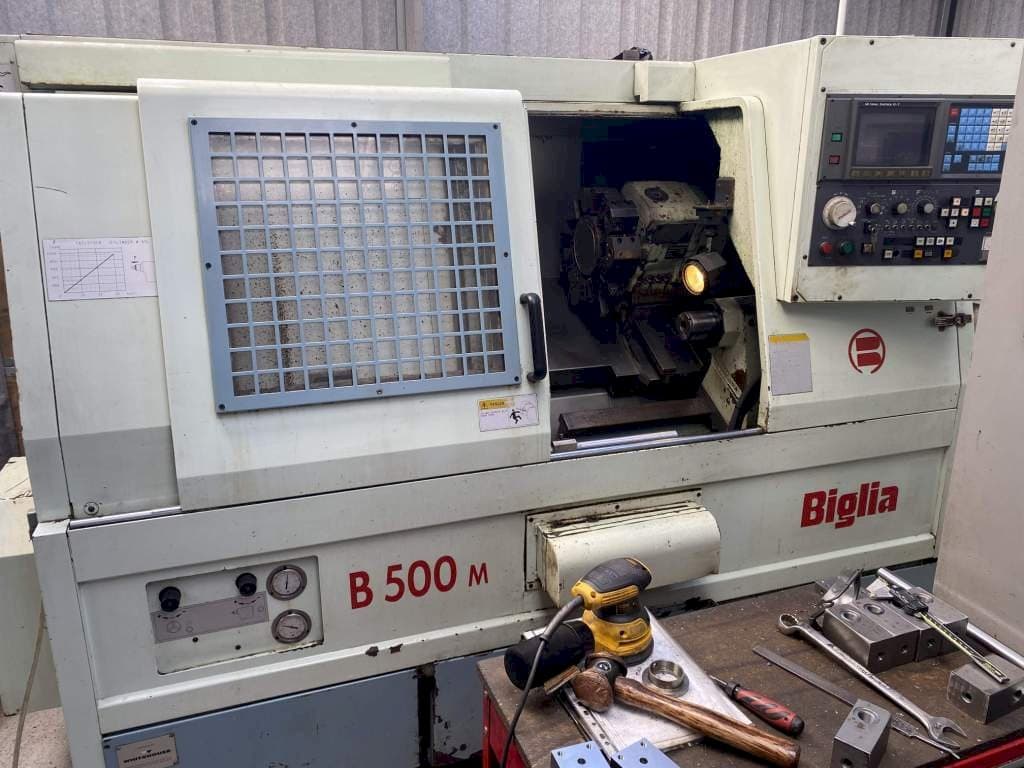

This Biglia B 500 M Lathe was manufactured in Italy in the year 1994. It is operated through a FANUC O-T control unit. This machine can work with a spindle speed up to 4000 rpm. It includes a hydraulic collect chuck.

Overview

brand: Biglia
year: 1994
MODEL: B 500 M
application type: Turning
Location: Ireland
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - Biglia B 500 M

Control Unit

Model: O-T
CNC main language: English
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 4000 1/MIN

Movement

X-AXIS Movement: 220 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece drm: 520 mm
Workpiece z: 500 mm

Tools

Slots in storage: 12

Media

Main electronic connection: 400 V

Additional equipment

- Hydraulic Collet Chuck

Additional Information

Machine history

Material type: Steel
End product: Components

Machine Benefits

Technical Machine Benefits:
- - Turret: duplomatic bsv-n 200-12
- - Turret type: 12 station turret with 4 driven stations
- - Tailstock: yes
- - Includes: hyd collect chuck, parts catcher + swarf conveyor
- - Spindle bore: 70mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
