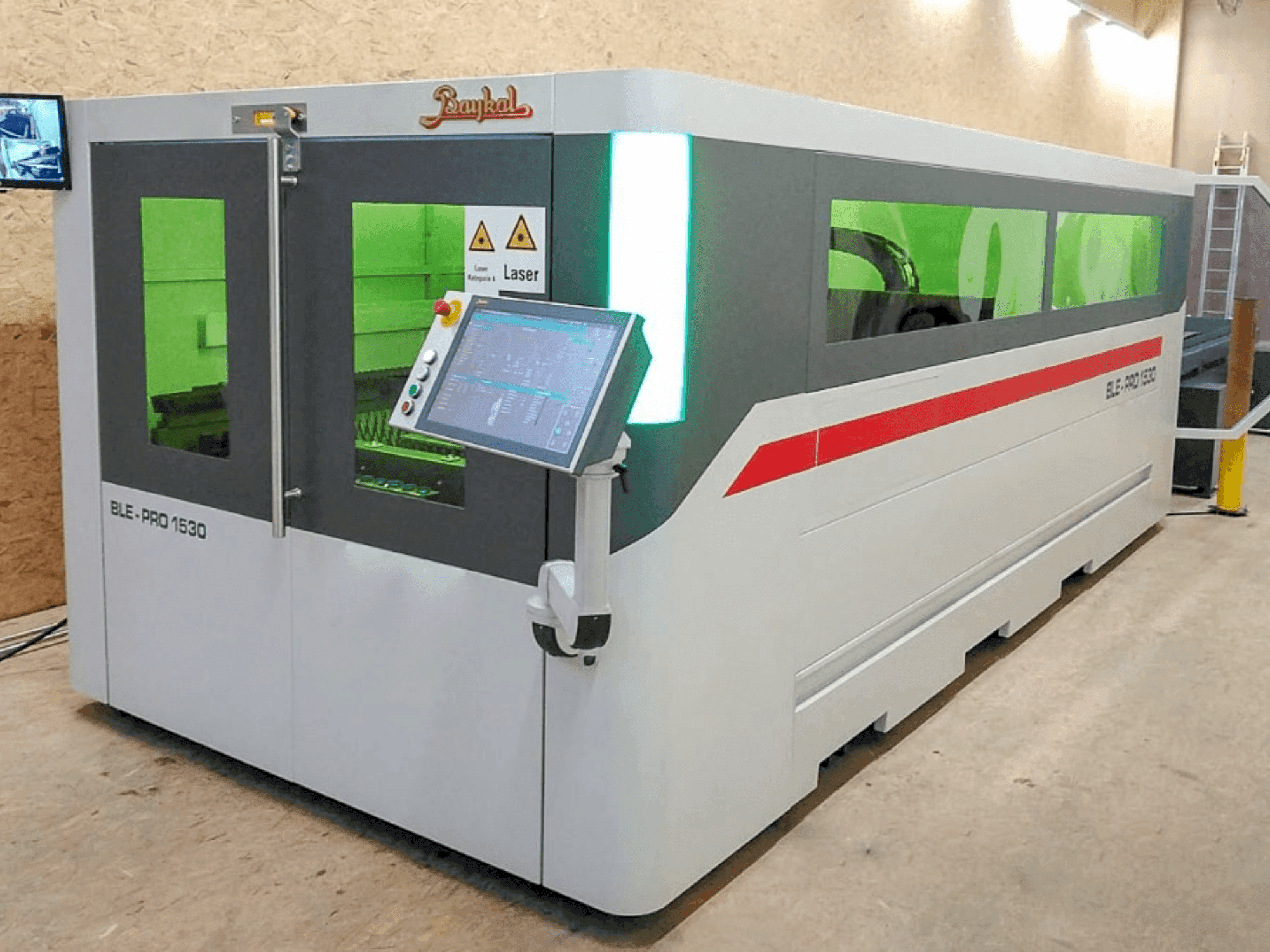

Baykal - BLE PRO 1530HU-CUT-BAY-2022-00001

Additional equipment

• Precitec cutting heads
• nLIGHT alta fiber laser source
• Autofocus cutting head Precitec ProCutter 2.0
• Built-in sectional dust and smoke extraction 4000 m3/h
• 2 camera surveillance system
• UPS uninterruptible power source
• Nesting software: Lantek Expert Cut II/ Metalix Autonest Pro (option)

Machine Benefits

Technical Machine Benefits

• X-axis: related to max. Cutting width 1500 mm // y-axis: related to max. Cutting length 3000 mm
• Cnc controller: beckhoff, with 18. 5" monitor
• Servo drive: beckhoff
• Rack and pinion drive: wittenstein
• Max cutting width: 1500 mm // max cutting length: 3000 mm
• Drive (x, y axis): servo motor, rack, and pinion // drive (z axis): ball screw
• Vector speed: 135 m/sec (2060s)
• Axial acceleration: 1. 5 g (15 m/s²) (2060s)
• Programmable feed speed (max): 50 m/sec
• Absolute positioning accuracy: ± 0. 03 mm

Extra Information

Repeatability (X and Y axis): ± 0.05 mm Type of Beam Transport: Fiber optic Automatic Nozzle Cleaning and Calibration: Yes Dual Circuit Water Cooling System: Yes Air-Conditioned Electrical Cabinet: Yes Lens Protector: Yes Waste Collection Trays: Yes Load Capacity of the Pallet Changing System: 1250 kg/pallet Autofocus Cutting Head: Precitec ProCutter 2.0 Dust and Smoke Extraction System: PL4000 built-in sectional, 4000 m³/h Laser Source (Resonator): 4kW nLIGHT alta Camera Surveillance System: 2 cameras UPS (Uninterruptible Power Source): Yes Nesting Software: Lantek Expert Cut II
