Battenfeld - TM 2700 / 1330 B4BE-INJ-BAT-2006-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- Battenfeld TM 2700 / 1330 B4 Injection moulding machine

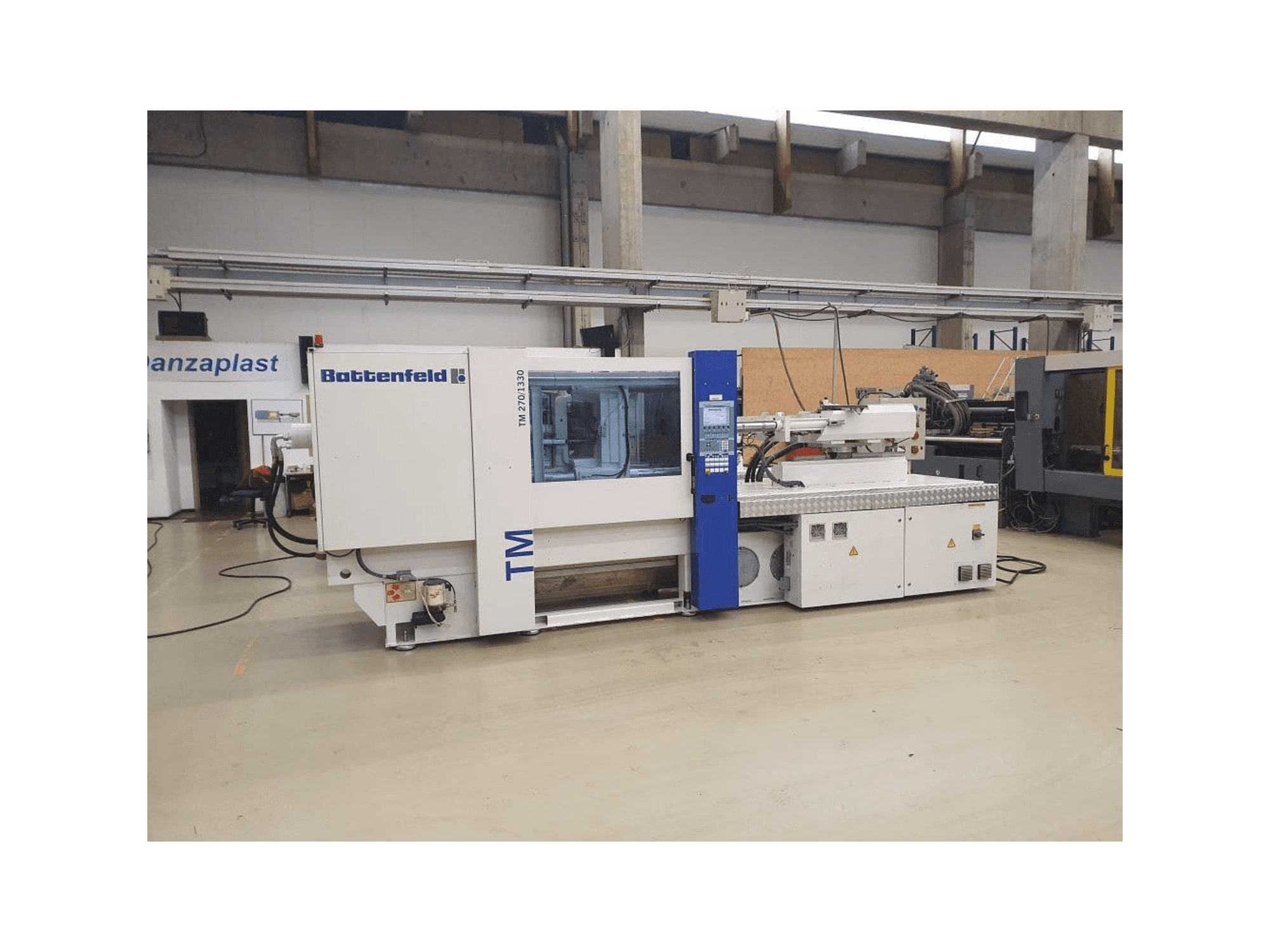

This Battenfeld TM 2700 / 1330 B4 Injection moulding machine was made in 2006 in Austria and has 29624 production hours. The machine has a clamping force of 2700 kN. It includes a Robot Interface Euromap 67.
Overview
- brand: Battenfeld
- year: 2006
- MODEL: TM 2700 / 1330 B4
- production hours: 29624
- application type: Injection Moulding
- Location: Belgium
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
Technical Information - Battenfeld TM 2700 / 1330 B4
General Data
- Measurements width: 1700 MM
- Measurements depth: 5800 MM
- Measurements height: 2300 MM
- Machine weight: 10800 kg
Injection Unit
- Screw diameter: 65 mm
- Shot weight: 831 g
- Stroke volume: 913 CM³
- Injection pressure: 1461 bar
- Plasticizing rate max.: 46,2 g/s
- Screw speed: 207 1/min
- Heating capacity: 20,9 kW
- Adjustable heating zones: 1+4
- Nozzle pressure: 100 kN
Clamping unit
- Clamping force: 2700 kN
- Opening stroke: 600 mm
- Max open daylight: 1250 mm
- Distance between bars: 630 mm x 630 mm
- Mould height min: 250 mm
- Mould height max: 650 mm
- Size of mold platens: 940 mm x 940 mm
- Ejector stroke: 600 mm
- Ejector force for / back: 59 kN
Media
- Pump drive power: 37 Kw
- Oil tank: 550 L
Additional Information
- Technical Machine Benefits:
- - Tiebar pulling manual
- - 2 x core hydraulic
- - 2 x air valve
- - 16 x hotrunner controllers
- - Anti vibration pads
- - Robot interface euromap 67
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Sergi Guardia
Payment Terms
Payment in advance
