AWEA AF 610

Photo Gallery

AWEA - AF 610MD-MIL-AWE-2008-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used AWEA AF 610 For Sale | gindumac.com

Show in original language

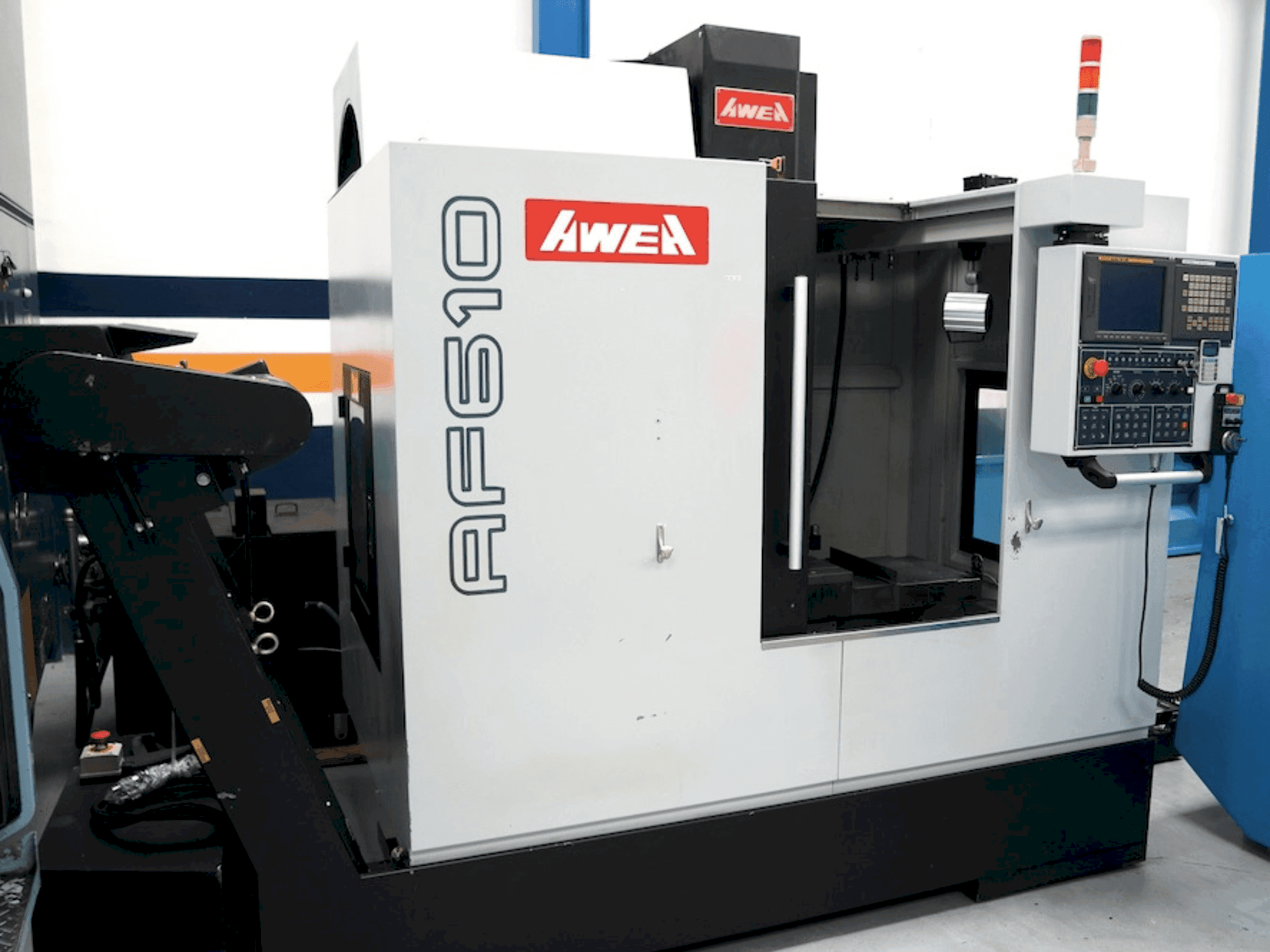

This 3-axis AWEA AF 610 vertical machining centre was manufactured in 2008. It features a FANUC 18i-MB control, with X-axis travel of 610mm, Y-axis of 420mm, and Z-axis of 450mm. The spindle can reach speeds up to 12,000 rpm, supported by a tool magazine with 24 stations. Additional features include a chip conveyor and a coolant system with a 300-liter tank. If you are looking to get high-quality milling capabilities consider the AWEA AF 610 machine we have for sale. Contact us for more information.

Overview

brand: AWEA
year: 2008
MODEL: AF 610
application type: Milling
Location: Moldova
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - AWEA AF 610

General Data

Measurements width: 2150 mm
Measurements depth: 2600 mm
Measurements height: 2500 mm
Machine weight: 3500 kg

Control Unit

Brand: FANUC
Model: 18i‑MB

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 7.5 / 11 kW
Number of axis: 3

Movement

X-AXIS Movement: 610 mm
X-AXIS Rapid traverse: 36 m/min
Y-AXIS Movement: 420 mm
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 450 mm
Z-AXIS Rapid traverse: 24 m/min

Workpiece

Workpiece weight: 450 kg

Tools

Number of stations: 24
Max weight: 7 kg
Max tool diameter: 100 mm
Max tool length: 250 mm
Type of tool holder: ISO-40

Media

Chip conveyor: Yes

Additional equipment

- Chip conveyor
- Manuals
- Remote manual pulse generator
- Work light

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Feed max: 10000 mm/min
- - Worktable dimensions: 700 x 450 mm
- - Cooling through the spindle
- - Coolant tank: 300 liters
- - Tool diameter with free neighboring places: 150 mm
- - Tool changer: random

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
