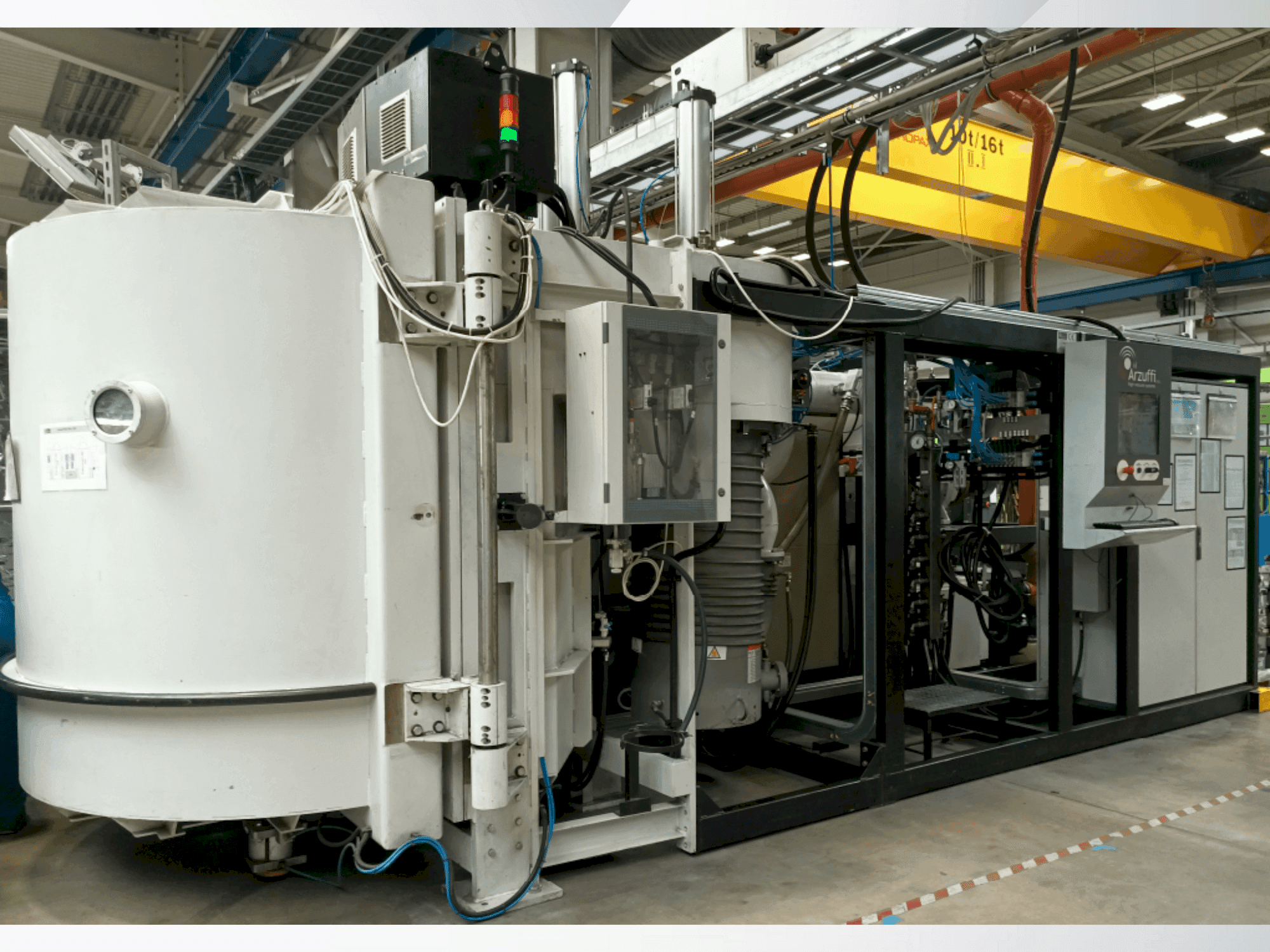

Front view of ARZUFFI AM/KW 1DA2 1900/1800 IC MF  machine

ARZUFFI AM/KW 1DA2 1900/1800 IC MF

ARZUFFI - AM/KW 1DA2 1900/1800 IC MF

2013

Rs. 21,060,850

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This ARZUFFI AM/KW 1DA2 1900/1800 IC MF Other machine was manufactured in the 2013. This machine has a loading system which inside each door is installed a planetary that allows to charge 7 fixtures.

Overview

  • brand: ARZUFFI
  • year: 2013
  • MODEL: AM/KW 1DA2 1900/1800 IC MF
  • application type: Other
  • Location: Czech Republic
  • machine type: Other
  • availability: Immediately
  • GINDUMAC ID: CZ-OTH-ARZ-2013-00001

Technical Information

General Data

  • Measurements width: 6500 mm
  • Measurements depth: 7550 mm
  • Measurements height: 3270 mm
  • Machine weight: 10500 kg

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - High vacuum coating system
      • - Chamber dimension: diameter 1. 900 mm, height 1. 800mm, chamber volume 5,1 m3
      • - Electrical drawing: tension 440, volt frequency 50 hz, power 106 kw, max current consumption 108 amp.
      • - Power distribution: diffusion pump no. 2 12 kw each // rotary pump no. 1 15 kw // roots pump no. 1 11 kw // polycold 1102 pfc no. 1 15,3 kw // motoreducer no. 2 0,75 kw // evaporation transformer no. 1 25 kw // power supply mf no. 1 10 kw // hmdso heating no. 1 0,3 kw each
      • - Cooling system pressure 2 / 3 bar
      • - Cooling system capacity 90 - 100 lt/min
      • - Pneumatic system pressure 6 - 7 bar
      • - Diameter of fixture 6 - 560 mm / 8 - 460 mm
      • - Total height of fixture 1600 mm
      • - Useful height of fixture 1500 mm

    Extra information

    • - Loading system: Inside each door is installed a planetary that allows to charge n. 7 fixtures

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
