- ➤ Used Dunkes HR75 - 2018 - Press For Sale | gindumac.com

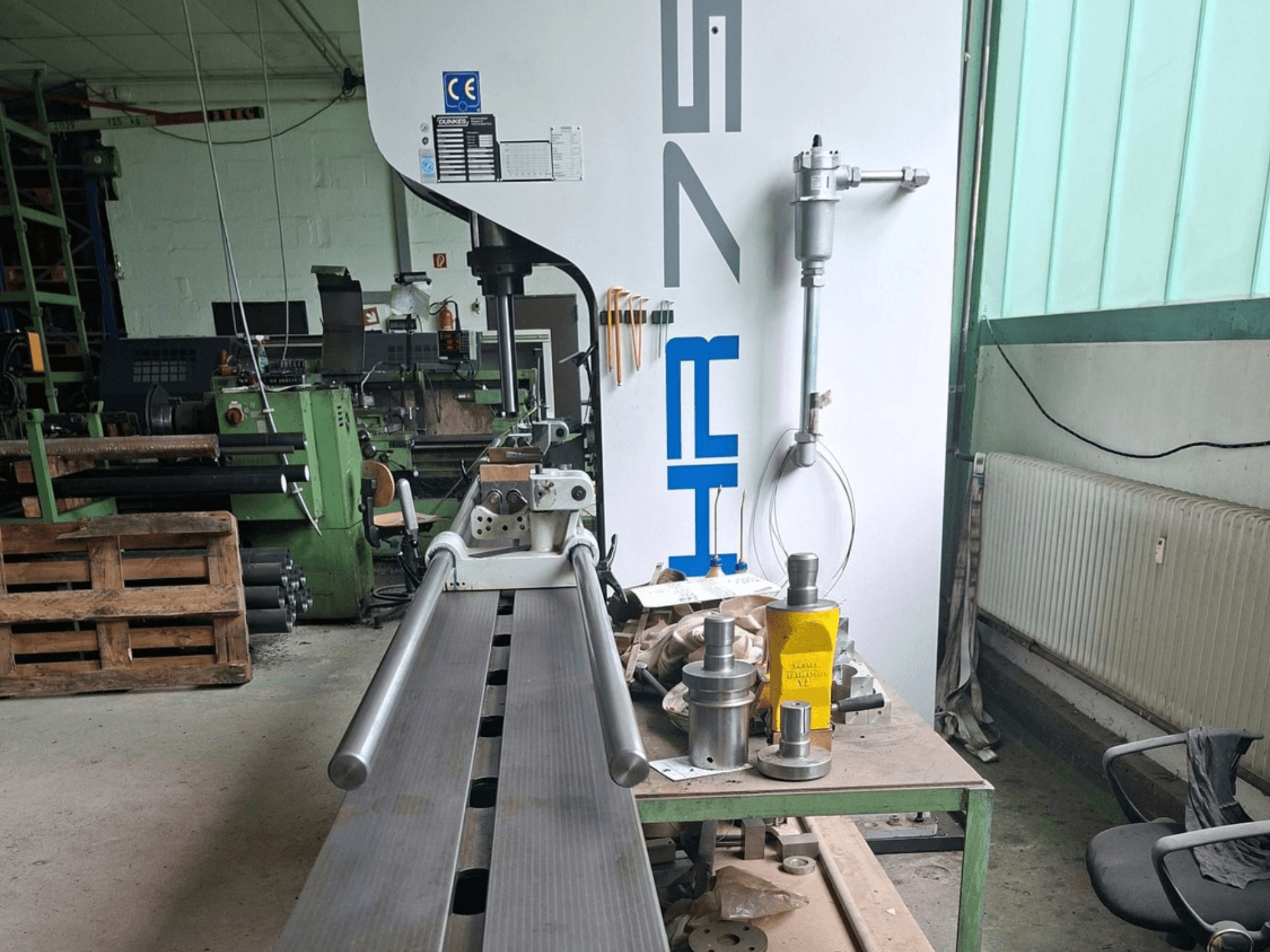

Metal press manufactured in 2018. This Dunkes HR75 features a nominal straightening force of 750 kN and a maximum ram stroke of 160 mm. The machine has a usable shaft length of 3000 mm and a throat depth of 250 mm. If you are looking to get high-quality straightening capabilities, consider the Dunkes HR75 machine we have for sale. Contact us for further details.
Overview
- brand: Dunkes
- year: 2018
- MODEL: HR75
- application type: Forming
- Location: Germany
- machine type: Metal Press
Technical Information - Dunkes HR75
Dimensions
- Machine Height: 2780 mm
- Machine Length: 7060 mm
- Machine Weight: 4100 kg
- Machine Width: 1810 mm
Technical Specification
- Max. Stroke: 160 mm
- Pressing Force: 750 Kn
Additional Information
- Max. Installation Height: 885 mm
- Min. Installation Height: 725 mm
- Throat Depth: 250 mm
- Ram Speed "DOWN": 2 - 30 mm/s
- Ram Speed "UP": 15 - 68 mm/s
- Press Table Height above Floor (with / without oil pan): 730 / 700 mm
- Usable Shaft Length: 3000 mm
- Usable Shaft Diameter: ø 120 / ø 170 mm
- Straightening Bridge Length: 2000 mm
- Extension Bed Extension: 2 x (1010 + 1520 mm) / Attached tables 2.5 m length each
- Main Pump Drive Power: 7.5 kW
- Network Type: L1-3/N/PE (TN-S)
- Frequency: 50 Hz
- Operating Voltage: 400 V~
- Connected Load: 9 kVA
- Nominal Current: 14.5 A
- Supply Line / Fuse: 32 A CEE / 32 A
- Hydraulic Tank Capacity: approx. 280 Liters
- Weight (without tools and additional equipment, without hydraulic oil): approx. 4100 kg
- Emission Sound Pressure Level Lpa: 78.5 dB(A)
- Uncertainty Kpa: 8 dB(A)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
