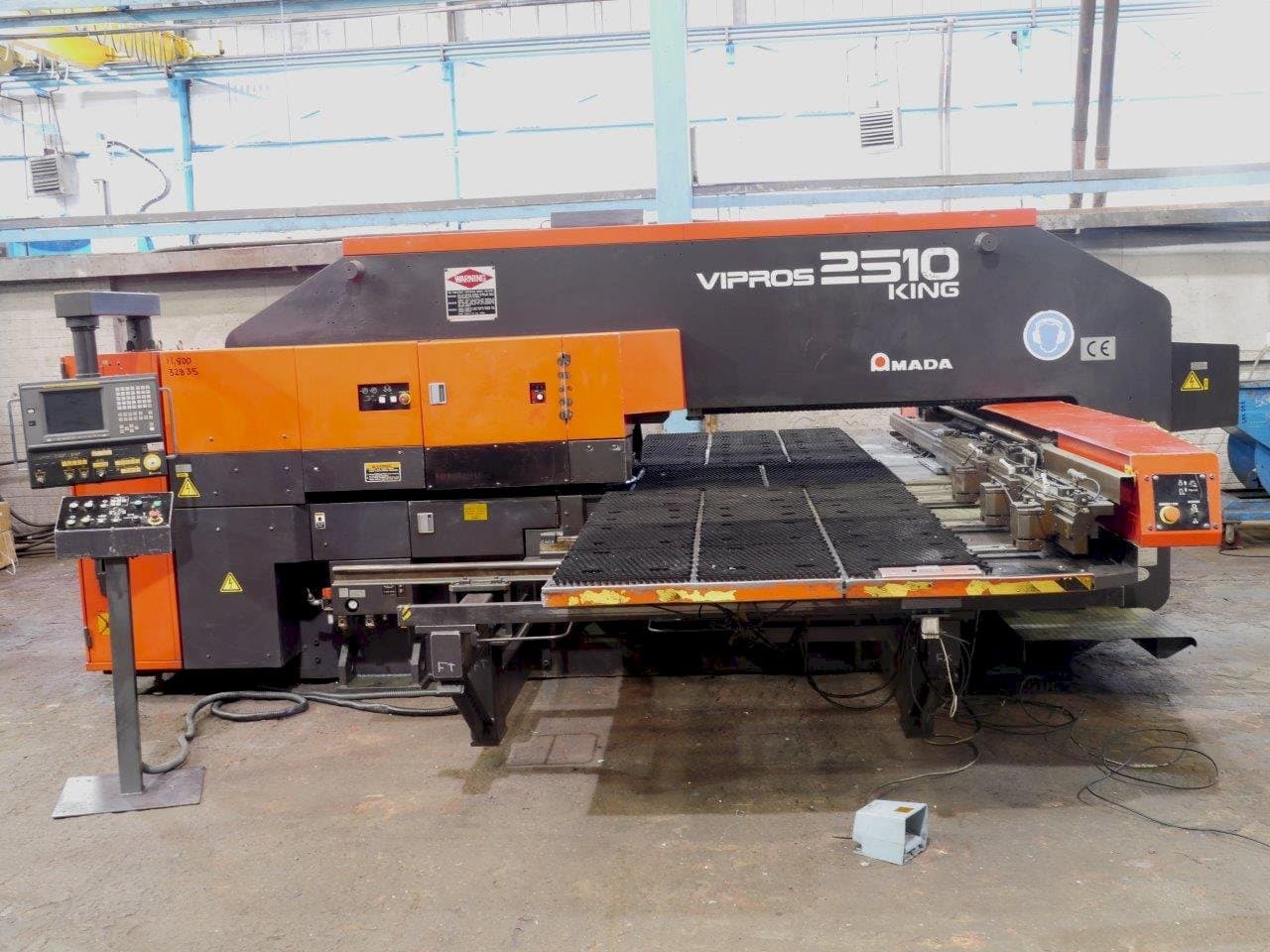

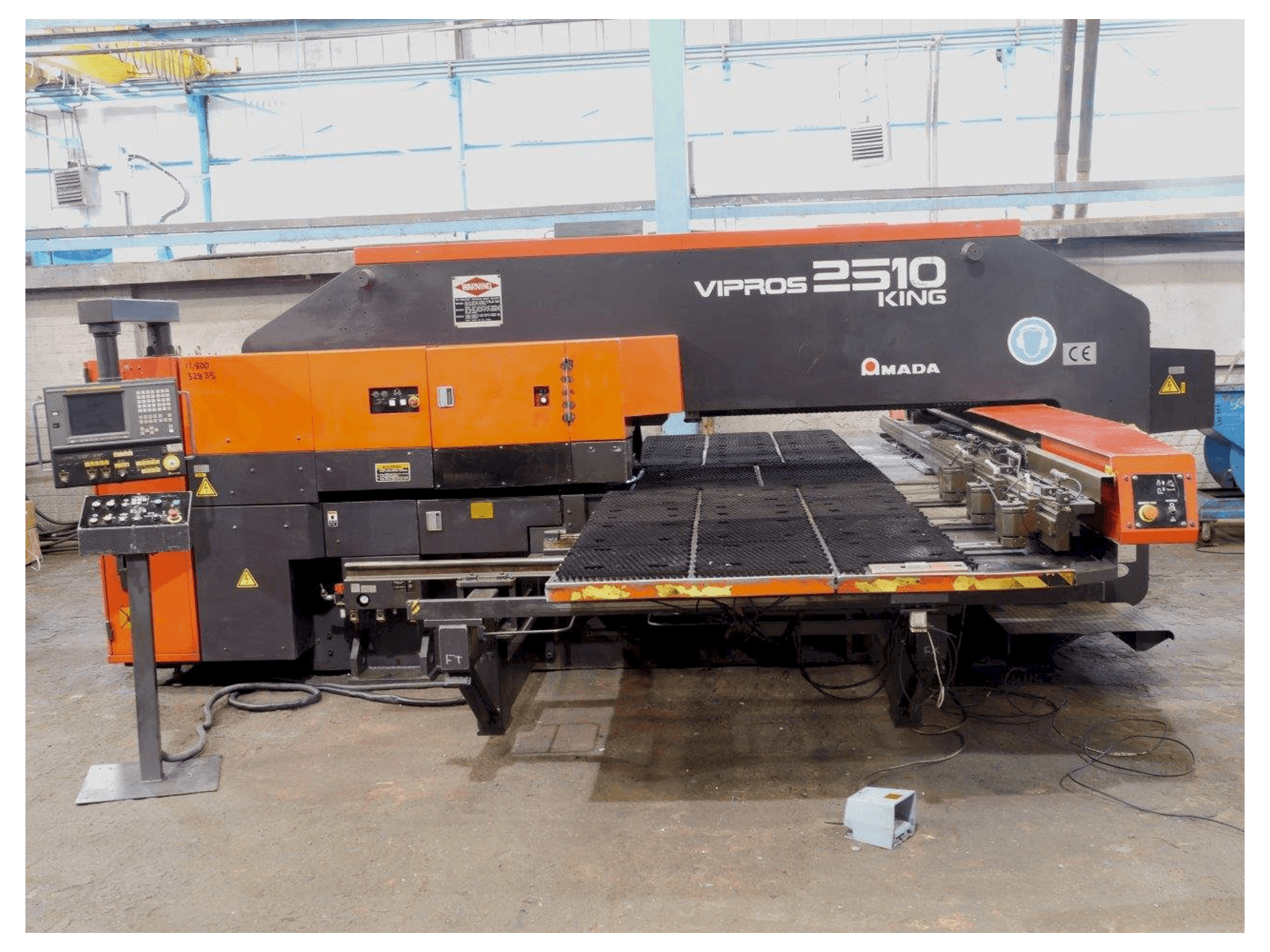

Front view of AMADA Vipros S2510 machine
Front view of AMADA Vipros S2510 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

AMADA - Vipros S2510GB-PUN-AMA-1999-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This AMADA Vipros S2510 Punching Machine was built in 1999 in Japan. It is operated through a FANUC Series 18-P control unit. This machine can work with a punching force of 200 kN.

Overview

  • brand: AMADA
  • year: 1999
  • MODEL: Vipros S2510
  • production hours: 424
  • application type: Punching
  • Location: United Kingdom
  • machine type: CNC Punch Press
  • availability: Sold
  • control unit brand: FANUC

Technical Information - AMADA Vipros S2510

General Data

  • Measurements width: 5790 mm
  • Measurements depth: 2280mm
  • Machine weight: 12680 kg

Control Unit

  • Model: Series 18‑P
  • Brand: FANUC

Main drive

  • Punching force: 200 kN

Movement

  • X-AXIS Movement: 2500 mm
  • Y-AXIS Movement: 1270 mm

Additional Information

    Machine history

    • Material thickness: 6. 4 mm

    Machine Benefits

    • Technical Machine Benefits:
      • - Press stroke length: 40 mm
      • - Sheet size: 250 mm x 2500 mm or 1250 mm x 5000 mm with 1 reposition
      • - Sheet weight: 150kgs
      • - Hit rate: x axis 25. 4mm pitch = 350, y axis 25. 4 mm pitch = 280
      • - Feed rate: x axis = 100 m/min , y axis = 80 m/min
      • - Input: 415/3/50
      • - Fitted with: brush tables, "sick " infra red lightguards, quantity of tooling
      • - Equipment: dryer
      • - Length: floor area required 6. 09 m

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
