AMADA Vipros 357
AMADA - Vipros 357
1995
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- AMADA Vipros 357 Turret Punching Machine

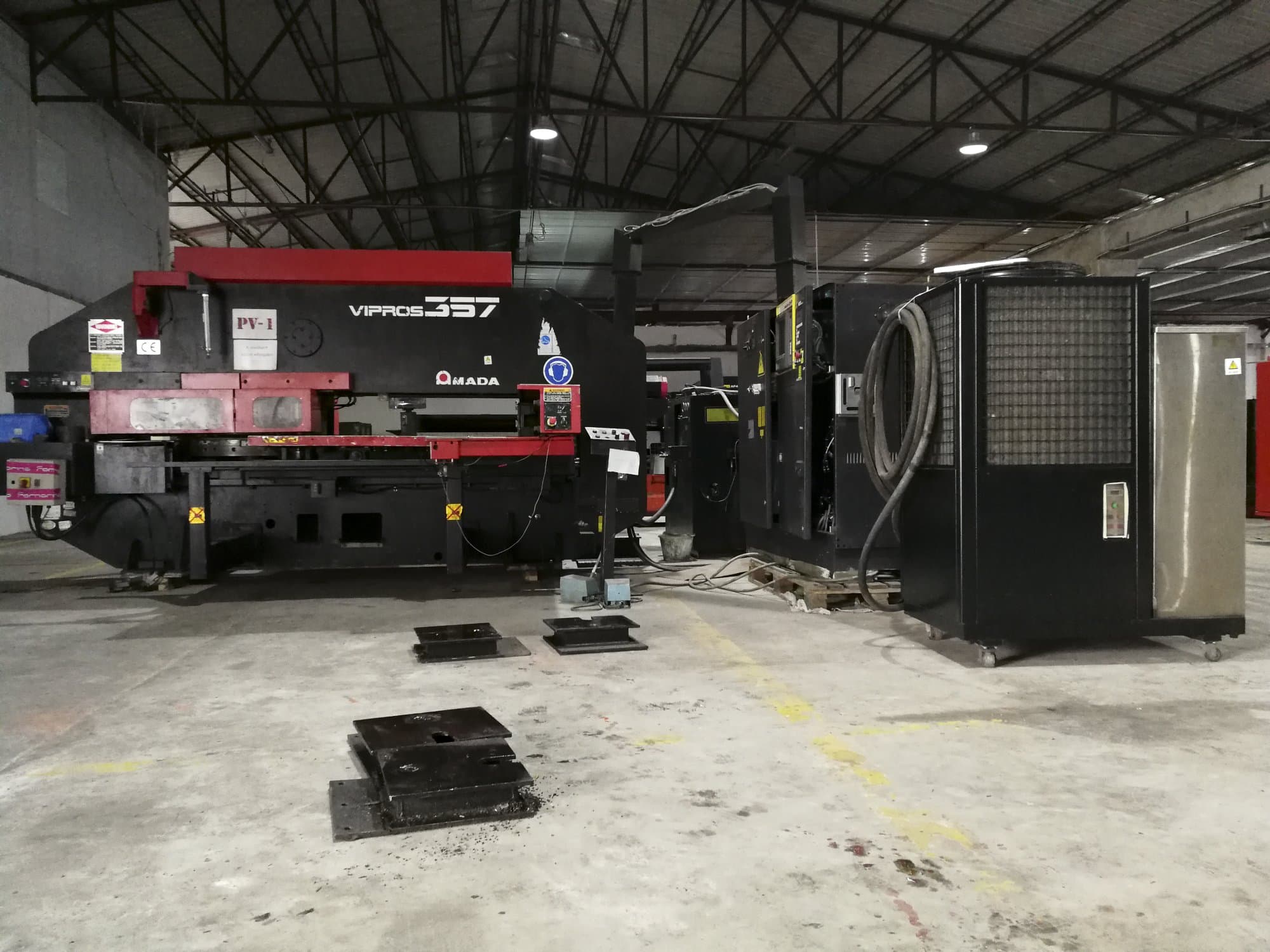

This AMADA Vipros 357 Turret Punching Machine from 1995 has a production record of 79200 hours. Operated through an AMADA AMADAN 04P-C control unit with RS232 Interface, the model is very silent, thanks to its hydraulic system. The Vipros 357 is a full-size machine with 30 Ton of pressure, a feature that makes it stand out within the Punching machines market.
Overview
- brand: AMADA
- year: 1995
- MODEL: Vipros 357
- production hours: 79200
- application type: Punching
- Location: China
- machine type: Turret Punching Machine
- availability: Sold
- control unit brand: FANUC
- GINDUMAC ID: CN-PUN-AMA-1995-00001
Technical Information
General Data
- Measurements width: 5000 mm
- Measurements depth: 5000 mm
- Measurements height: 2700 mm
- Machine weight: 13500 kg
Control Unit
- Brand: AMADA
- Model: AMADAN 04P-C
- Interface: RS232
Main drive
- Maximum sheet thickness: 6.25 mm
Movement
- X-AXIS Movement: 1780 mm
- Y-AXIS Movement: 1250 mm
Tools
- Number of index: 2
- Max tool diameter: 88.9 mm
Media
- Air pressure: 6 bar
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
