AMADA Vipros 255

Photo Gallery

AMADA - Vipros 255IN-PUN-AMA-2006-00003

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ AMADA Vipros 255 Turret Punching Machine

Show in original language

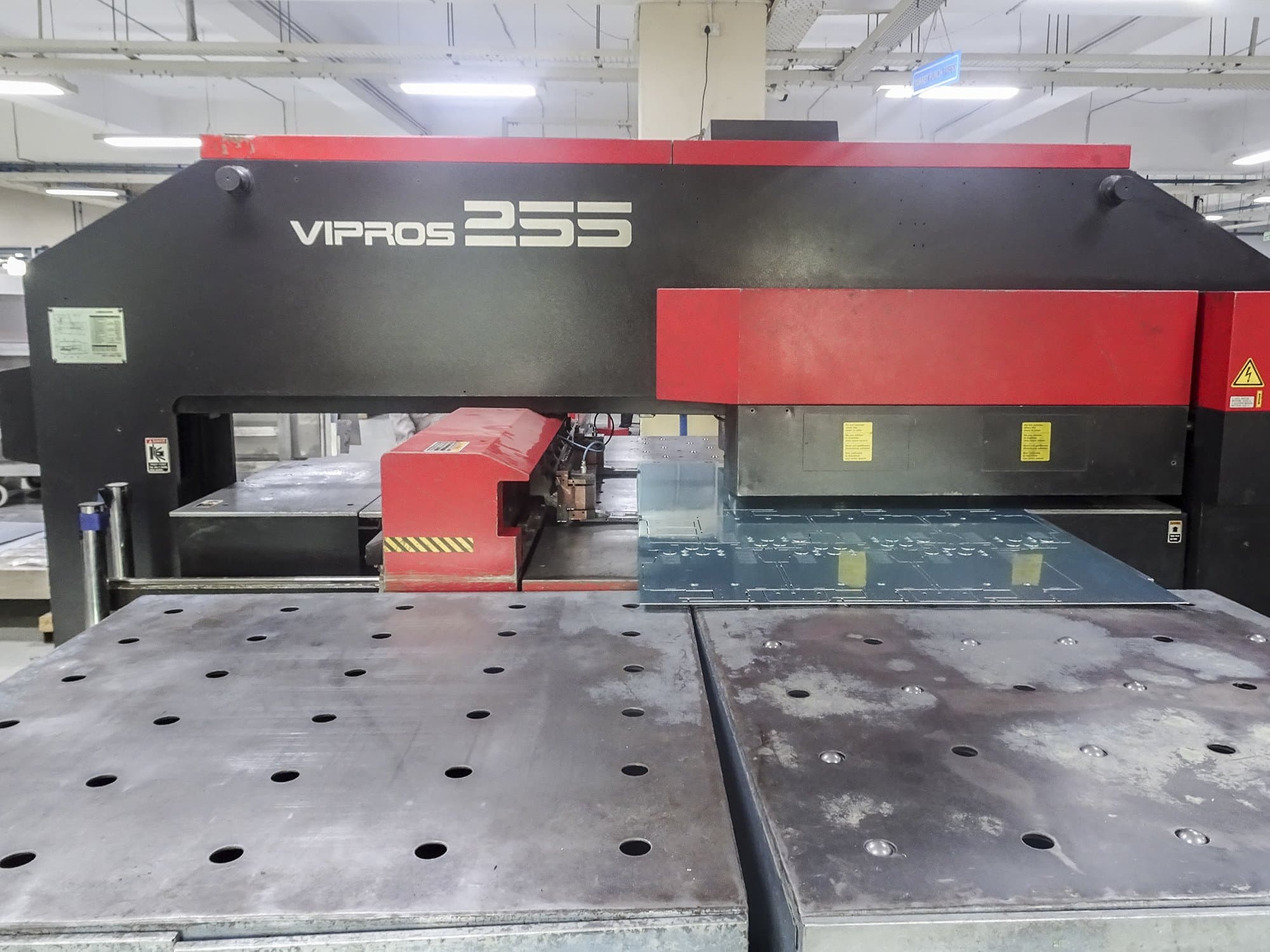

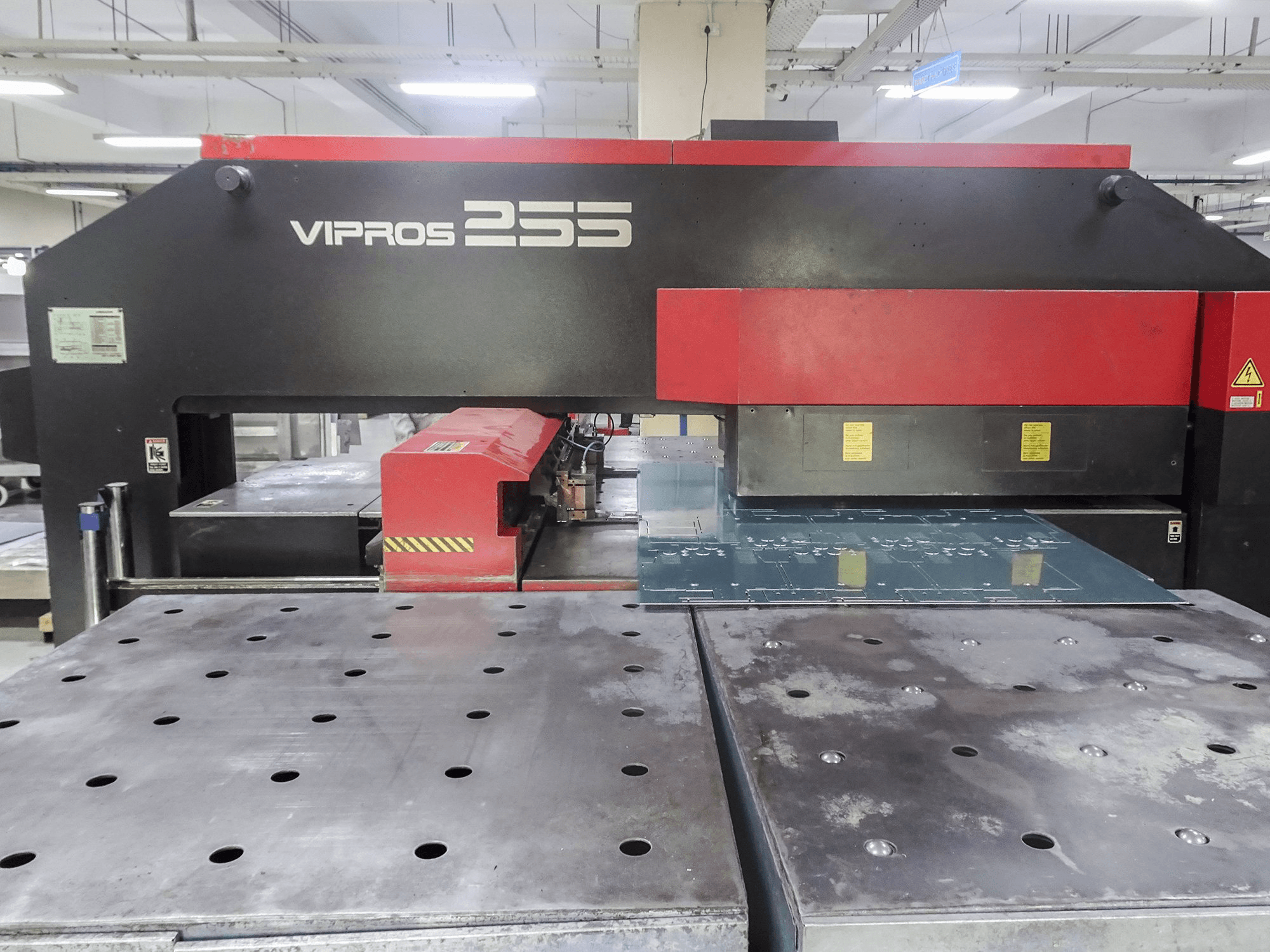

This AMADA Vipros 255 Turret Punching Machine, made in Japan in 2006, has a working time of approximately 65000 production hours. Equipped with a FANUC 18-P Control unit, this well maintained machine for large format workpieces has mainly worked with 3 mm steel sheets during the past and comes with an additional chiller unit included.

Overview

brand: AMADA
year: 2006
MODEL: Vipros 255
production hours: 65000
application type: Punching
Location: India
machine type: CNC Punch Press
availability: Sold
control unit brand: FANUC

Technical Information - AMADA Vipros 255

General Data

Measurements width: 5030 mm
Measurements depth: 2630 mm
Measurements height: 2160 mm
Machine weight: 9200 kg

Control Unit

Brand: FANUC
Model: 18-P
CNC main language: English

Main drive

Punching force: 300 kN
Maximum sheet thickness: 6.4 mm

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 1270 mm

Tools

Number of index: 3
Number of stations: 31

Max Material thickness

Steel: 6 mm
Stainless steel: 2 mm
Aluminum: 4 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 27 kVA

Additional equipment

- Chiller

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
