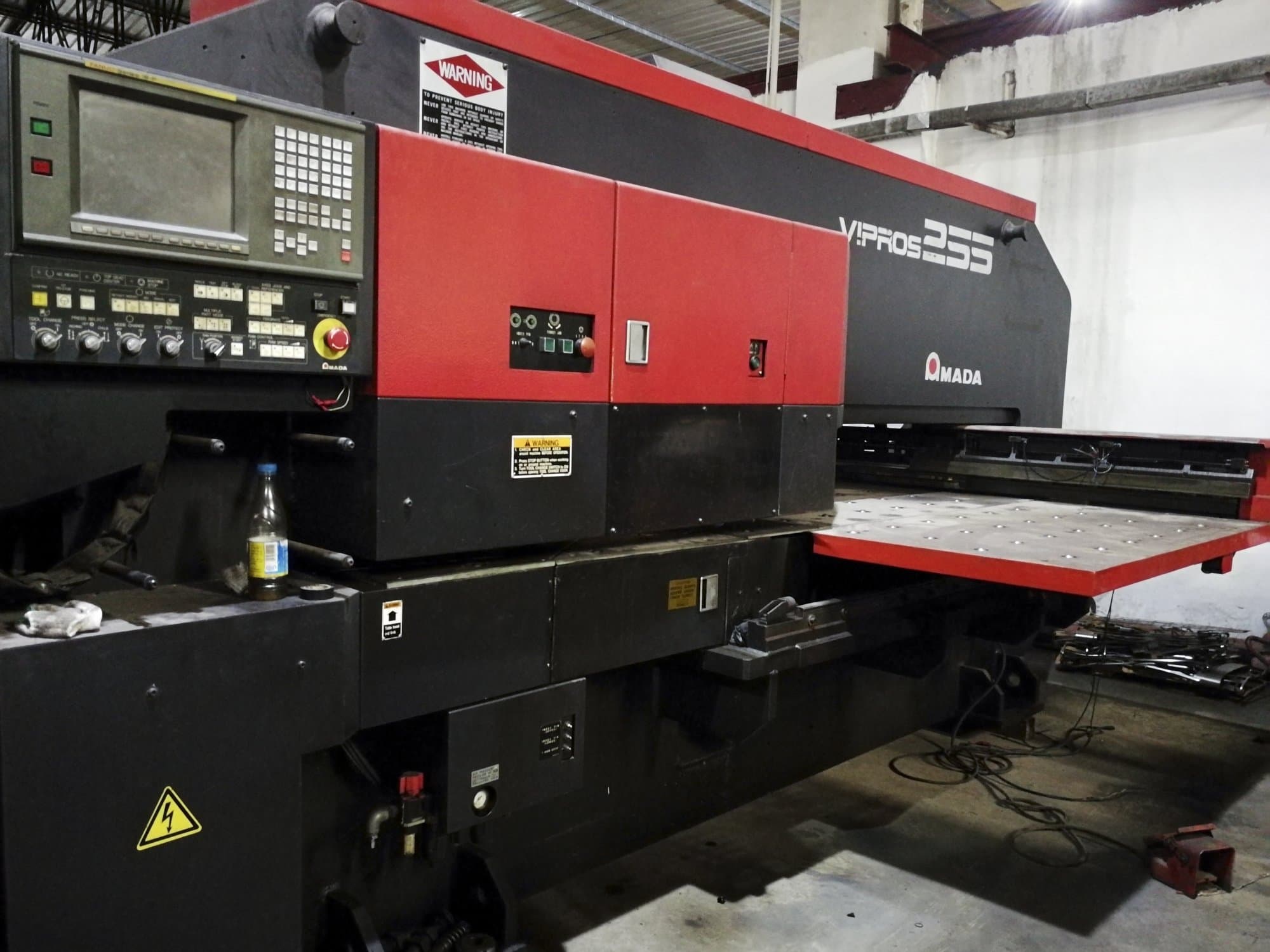

This AMADA Vipros 255 Turret Punching Machine from 1998 has a record of 68400 working hours. Operated through a FANUC 18-P with RS232 interface control unit, the model is a highly energy-efficient equipment with an incorporated hydraulic system. On top, the VIPROS 255 allows RAM control, a feature that enables a better forming operation.
Overview
- brand: AMADA
- year: 1998
- MODEL: Vipros 255
- production hours: 68400
- application type: Punching
- Location: China
- machine type: Turret Punching Machine
- availability: Sold
- control unit brand: FANUC
- GINDUMAC ID: CN-PUN-AMA-1998-00001
Technical Information
General Data
- Measurements width: 4826 mm
- Measurements depth: 4953 mm
- Measurements height: 2500 mm
- Machine weight: 9200 kg
Control Unit
- Brand: FANUC
- Model: 18-P
- Interface: RS232
Main drive
- Maximum sheet thickness: 5 mm
Movement
- X-AXIS Movement: 1250 mm
- Y-AXIS Movement: 1250 mm
Tools
- Number of index: 3
- Number of stations: 31
- Max tool diameter: 88.9 mm
Media
- Air pressure: 6 bar
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
