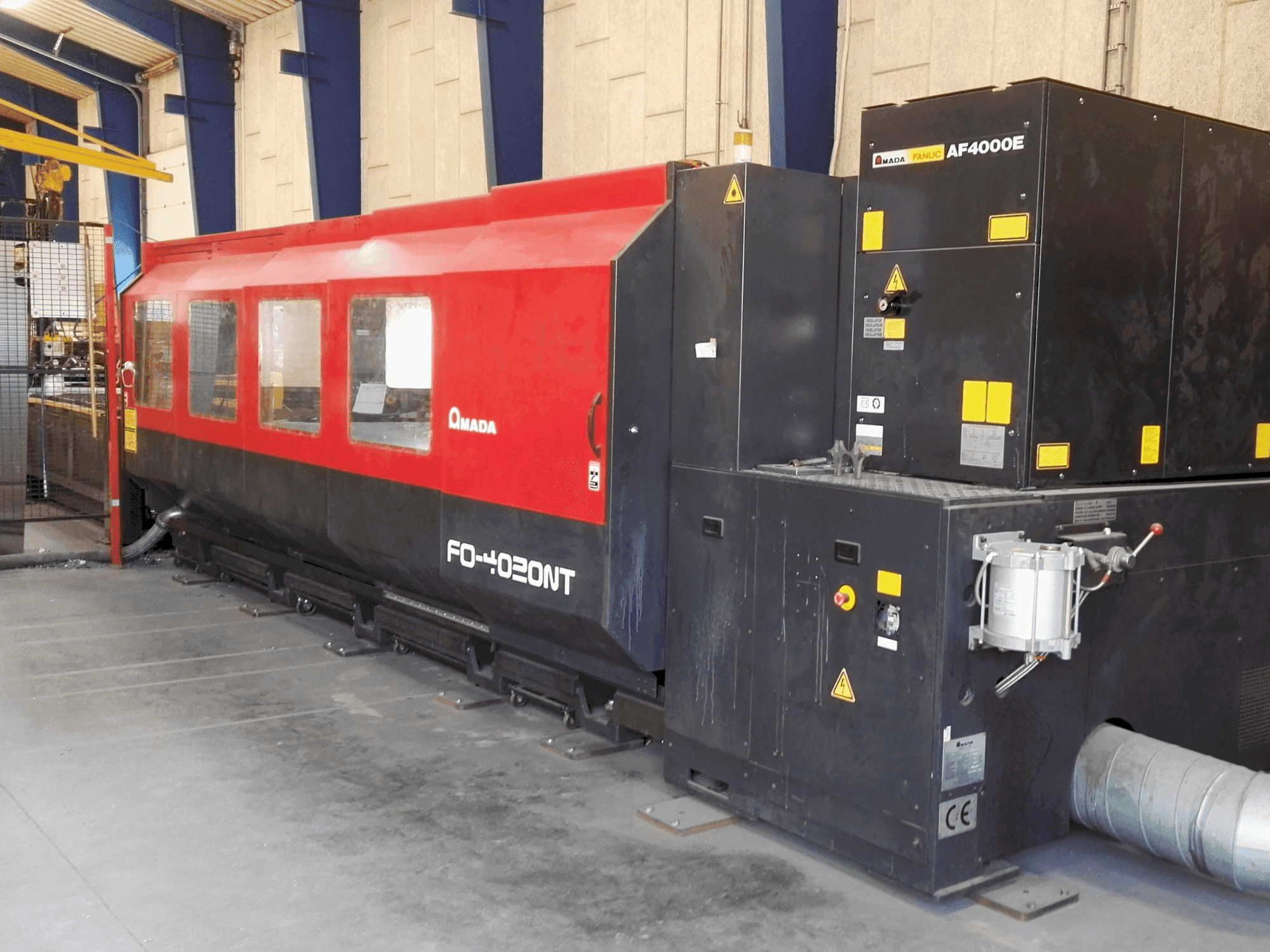

Front view of AMADA FO-4020NT (2005)  machine

AMADA - F0-4020NTDE-LAS-AMA-2005-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This AMADA F0-4020NT CO2 Laser Cutting Machine was manufactured in 2005 in Japan. It is equipped with a 4 kW CO2 laser (FANUC, AF4000E). The axis travel range is: X = 4420mm, Y = 2050mm and Z = 200mm. This machine can operated with a max. worksheet weight (stand alone machine and with LST) of both 1570 kg. It is no longer under power, but all maintenance has been carried out annually and the machine is technically in perfect condition. Recently it has been professionally dismantled and is ready for dispatch. In total machine hours are at 37500. 5 inch and 7.5 inch lens holders are included. See photo gallery for more details. In addition, you will find a summary of all maintenance reports attached as PDF (German). Contact us anytime for further questions!

Overview

  • brand: AMADA
  • year: 2005
  • MODEL: F0-4020NT
  • production hours: 37500
  • application type: Cutting
  • Location: Germany
  • machine type: CO2 Laser Cutting Machine
  • availability: Sold
  • control unit brand: AMADA

Technical Information - AMADA F0-4020NT

Control Unit

  • Brand: AMADA

Main drive

  • Laserpower: 4 KW
  • Laser type: CO2
  • Laser brand: FANUC AF4000E

Movement

  • X-AXIS Movement: 4420 mm
  • Y-AXIS Movement: 2050 mm
  • Z-AXIS Movement: 200 mm

    Additional equipment

    • - 5 inch and 7.5 inch lens holders included (5 inch lens is in the machine and the 7.5 inch is stored)

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Axis travel: x 4420mm, y 2050mm, z 200mm
        • - Cutting feed rate: x 0 to 20m/min, y 0 to 20m/min
        • - Max. Rapid feed: x 80m/min, y 80m/min, z 60m/min
        • - Max. Worksheet weight (stand alone machine and with lst): both 1570 kg
        • - Table height: 940mm
        • - Weight with oscillator (stand alone machine): 12t
        • - Weight with oscillator (stand alone machine + prfo): 13,7t
        • - No. Of bend mirrors including collimator: 5
        • - Adaptive optics (optional): 1, power supply: 13 kva
      • Qualitative Machine Benefits:
        • - All maintenance has been carried out annually and the machine is technically in perfect condition.

      Extra information

      • - It is no longer under power, but all maintenance has been carried out annually and the machine is technically in perfect condition. Recently it has been professionally dismantled and is ready for dispatch. All accessories are available as they were when the machine was delivered. 5 inch and 7.5 inch lens holders. A lens is also installed in each one. However, there are no pictures of this, the 5 inch lens is in the machine and the 7.5 inch is stored in a box with the documentation. Complete documentation in paper, parts list and circuit diagram also digital. With a Fanuc resonator, the complete resonator does not have to be replaced, only the turboblower, which has to be replaced every 24,000 hours and the one installed still has a remaining service life of just under 13,000 hours.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
