AMADA - EMZ 3612 M2HU-PUN-AMA-2016-00001

Name: AMADA EMZ 3612 M2
Brand: AMADA
SKU: HU-PUN-AMA-2016-00001
Price: 22991508 INR
Availability: InStock

Rs. 22,991,508

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used AMADA EMZ3612M2 For Sale | gindumac.com

Show in original language

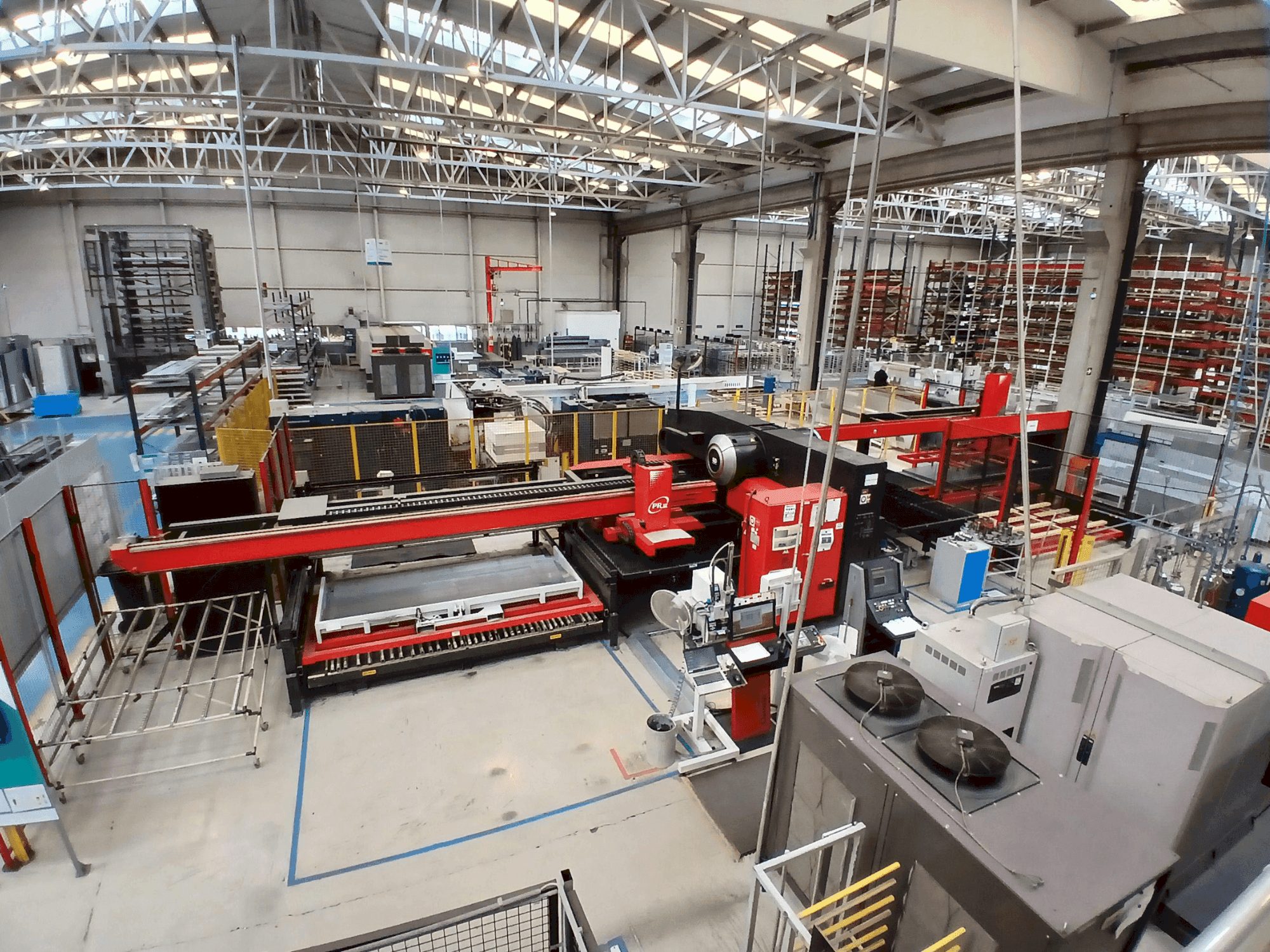

This 4-axis AMADA EMZ3612M2 was manufactured in 2016, featuring a high-speed servo-electric turret punch press with twin AC servo direct drive. It boasts a 33-ton press capacity and an AMNC-F / AMNC-4ie CNC system for enhanced control. The machine handles sheet formats up to 3050x1525 mm and includes a "King" turret with up to 58 stations. Energy efficiency is optimized with AC servo drives. If you are looking to get high-quality punching capabilities consider the AMADA EMZ3612M2 machine we have for sale. Contact us for more information.

Overview

brand: AMADA
year: 2016
MODEL: EMZ 3612 M2
application type: Punching
Location: Hungary
machine type: Turret Punch Press

Technical Information - AMADA EMZ 3612 M2

Dimensions

Machine Depth: 5436 mm
Machine Height: 2342 mm
Machine Weight: 21500 kg

Movement

Number of Axes: 4
X-axis Travel: 3050 mm
Y-axis Travel: 1525 mm
Z-axis Travel: 37 mm

Additional Information

Additional equipment

Air-blow oil-mist lubrication
Slug-vacuum system
Digital tool ID / barcode system
Integrated tapping: inch/metric taps (M2.5–M8)
Marking & deburring tools: on-board marking and deburring options

Machine Benefits

Technical Machine Benefits

Type: high-speed servo-electric turret punch press with twin ac servo direct drive
Press capacity: 33 tons (300 kn)
Maximum sheet format (without repositioning): 3050 × 1525 mm
Turret type: “king” turret – triple-track, available in 55-station multi-purpose or 58-station version, with 4 auto-index stations including tapping units
Turret rotation speed: up to 30 rpm
Feed clearance: 25 mm between turret plates
Max sheet thickness: 4. 5 mm
Positioning speed (x/y): 100 m/min / 80 m/min

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
