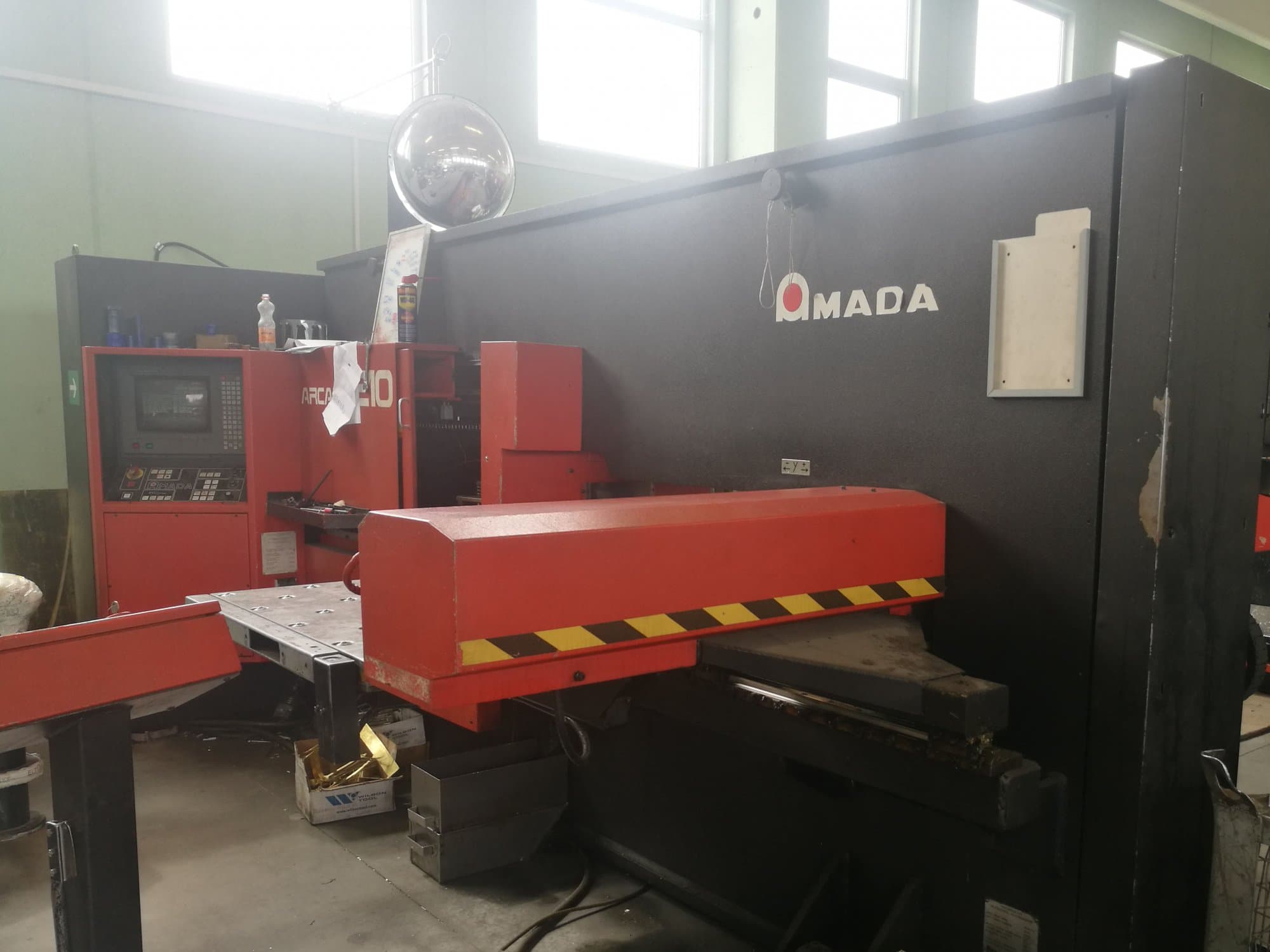

This AMADA ARCADE 210 Turret Punching Machine was built in 1995 in France and has been operative for approximately 35000 working hours since then. With a FANUC Series 16-P Control unit, this fast and efficient model has mainly worked with steel sheets with around 2.5 mm of thickness during the past.
Overview
- brand: AMADA
- year: 1995
- MODEL: ARCADE 210
- production hours: 35000
- application type: Punching
- Location: Croatia
- machine type: Turret Punching Machine
- availability: Sold
- control unit brand: FANUC
- GINDUMAC ID: HR-PUN-AMA-1995-00001
Technical Information
General Data
- Measurements width: 2750 mm
- Measurements depth: 4500 mm
- Measurements height: 2050 mm
- Machine weight: 10000 kg
Control Unit
- Brand: FANUC
- Model: Series 16-P
- CNC main language: English
Main drive
- Punching force: 200 kN
- Maximum sheet thickness: 6 mm
Movement
- X-AXIS Movement: 2450 mm
- Y-AXIS Movement: 1000 mm
Workpiece
- Workpiece weight: 100 kg
Tools
- Number of index: 3
- Number of stations: 19
Max Material thickness
- Steel: 4 mm
Media
- Main electronic connection: 380 V / 50 Hz
- Power consumption: 25 kVA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
