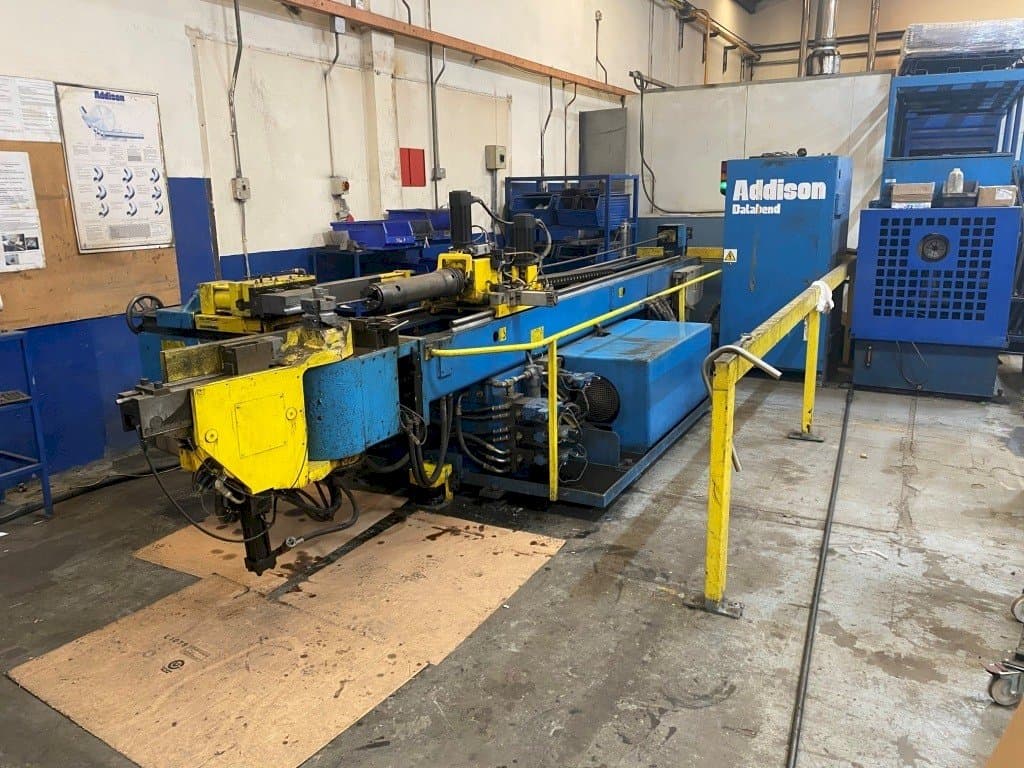

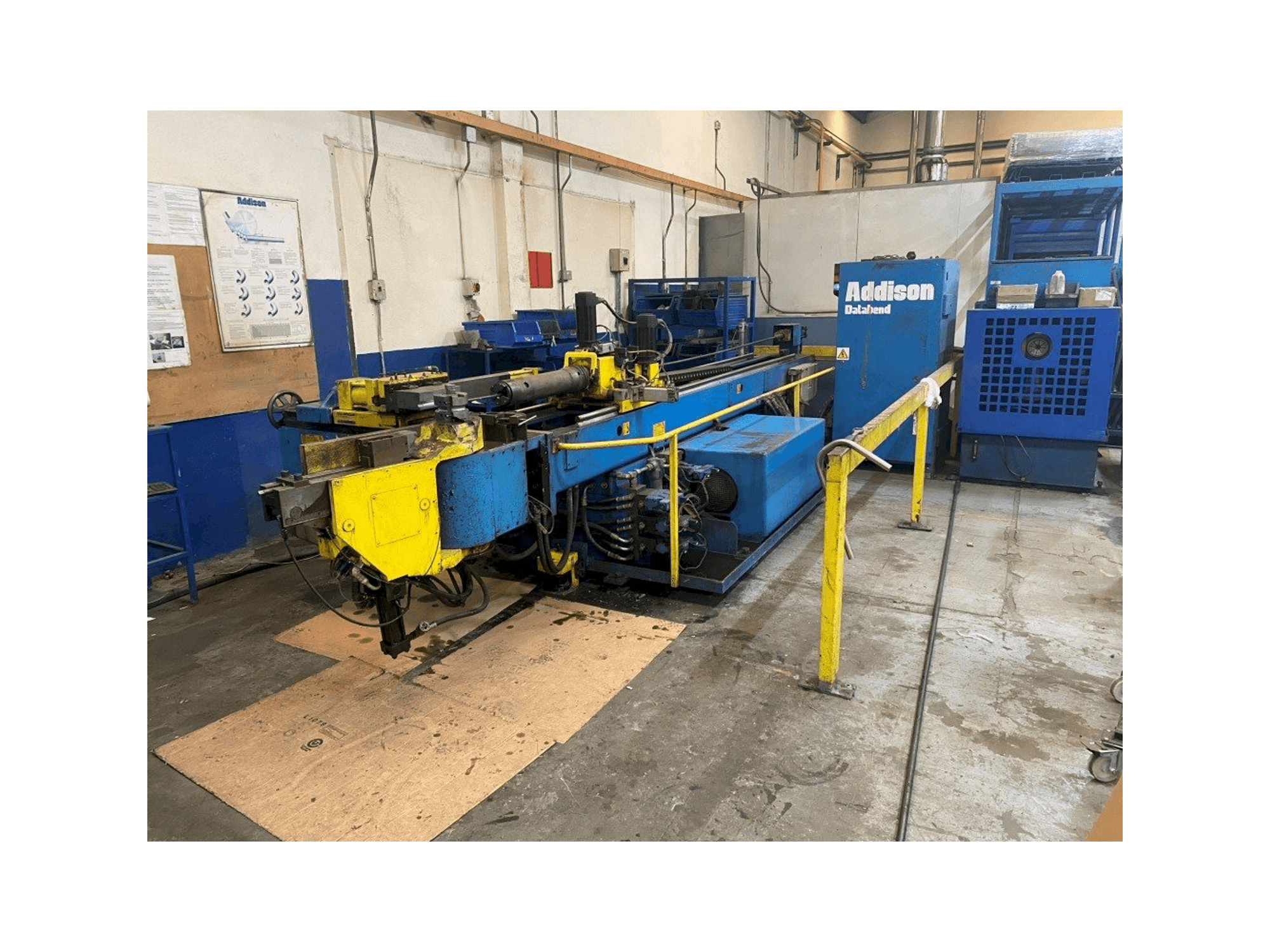

Addison DB-76 3D CNC Bending Machine

Show in original language

This Addison DB-76 3D CNC Bending Machine was manufactured in the year 2000 in the United kingdom. It is operated through an Addison DataBend control unit. This machine can work with a bending length of 6000 mm. During the past, this Addison has been working with mild steel up to 2 mm of thickness. It includes a 5 set of tooling.

Overview

brand: Addison
year: 2000
MODEL: DB-76 3D CNC
application type: Bending
Location: Ireland
machine type: Roll Bending Machine
availability: Sold

Technical Information - Addison DB-76 3D CNC

General Data

Machine weight: 6100 kg

Control Unit

Model: DataBend
CNC main language: English
CNC language customizable: Yes

Media

Main electronic connection: 380 V

Additional equipment

- 5 Sets of Tooling - 1", 1.5",35mm, 45mm & 52mm

Additional Information

Machine history

Material type: Mild steel
Material thickness: 2 mm
End product: Machine parts

Machine Benefits

Technical Machine Benefits:
- - 76mm capacity
- - Max wall thickness - 3mm
- - Max bending radius: 190 degrees
- - Max backstop length - 6000mm
- - Max bend centre line radius - 250mm
- - Min bend centre line radius - 25mm
- - Y axis speed: 60rpm
- - B axis speed: 50rpm
- - C axis speed: 13rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
