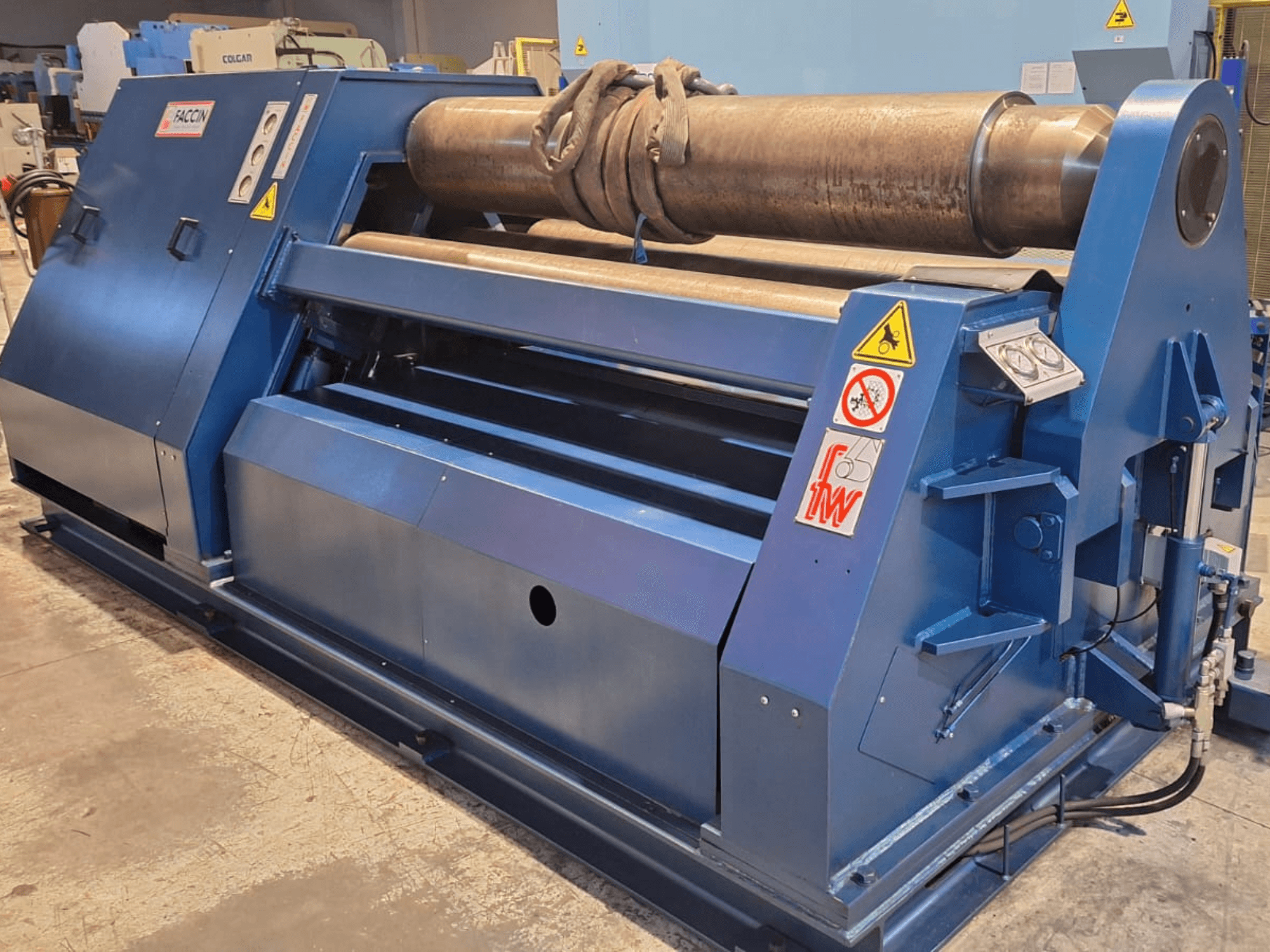

Roll bending machine manufactured in 2006. This FACCIN 4HEL 2134 features a maximum plate width of 2,100 mm and a maximum plate thickness of 28 mm. It is equipped with linear guides and has a top roll diameter of 350 mm. If you are looking to get high-quality rolling capabilities, consider the FACCIN 4HEL 2134 machine we have for sale. Contact us for further details.
Overview
- brand: FACCIN
- year: 2006
- MODEL: 4HEL 2134
- application type: Bending
- Location: Italy
- machine type: Roll Bending Machine
Technical Information - FACCIN 4HEL 2134
Dimensions
- Machine Height: 1650 mm
- Machine Length: 4200 mm
- Machine Weight: 11500 kg
- Machine Width: 1950 mm
Additional Information
Geometry: Linear guides
Max. plate width: 2,100 mm
Max. plate thickness: 28 mm
Top roll diameter: 350 mm
Pinching roll diameter: 330 mm
Side roll diameter: 240 mm
Main motor power: 18.5 kW
Rolling speed: 7 m/min
Feature: Visualized/digital roll position indicators
Rolling performance:
Full width: up to 25 mm rolling / 20 mm pre-bending at Ø1,700 mm, 260 N/mm²
Full width: 20 mm / 16 mm at Ø400 mm, 260 N/mm²
Full width: 20 mm / 16 mm at Ø1,700 mm, 360 N/mm²
Full width: 18 mm / 14 mm at Ø400 mm, 355 N/mm²
Half width: up to 30 mm rolling / 25 mm pre-bending at Ø1,700 mm, 260 N/mm²
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
