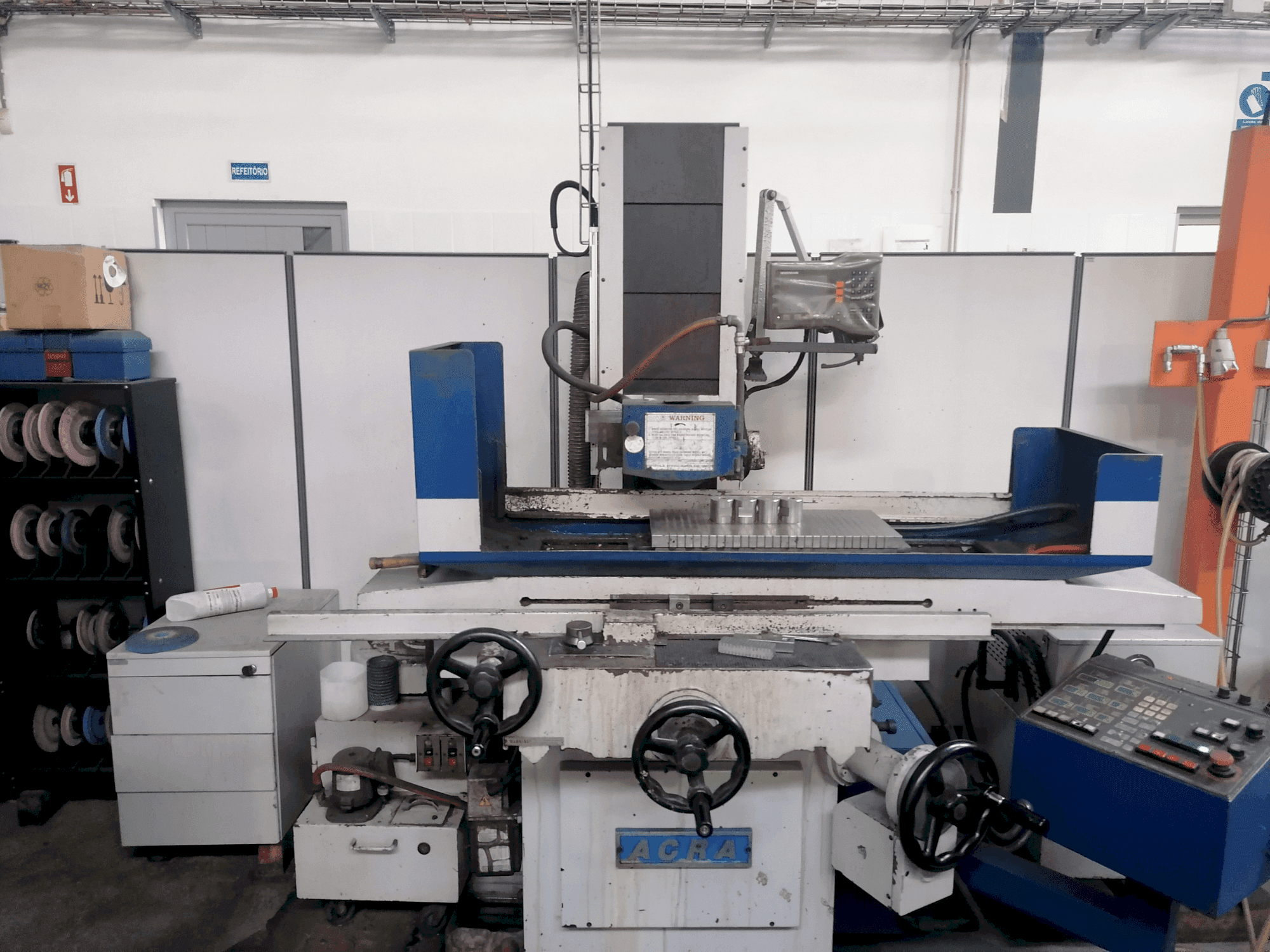

This ACRA ASG 1224HS was manufactured in 2003. A robust grinding machine featuring a table size of 12” X 24” and a maximum table travel of 14.5” X 27.5”. It supports a table load of 660 lbs and operates with a spindle motor of 5 HP. Ideal for handling substantial grinding tasks, the ACRA ASG 1224HS machine we have for sale is a significant asset for any workshop. Contact us for more information.
Overview
- brand: ACRA
- year: 2003
- MODEL: ASG 1224HS
- application type: Grinding
- Location: Portugal
- machine type: Surface Grinding Machine
- availability: Sold
Technical Information - ACRA ASG 1224HS
General Data
- Measurements width: 7100 mm
- Measurements depth: 9000 mm
- Measurements height: 8800 mm
- Machine weight: 2200 kg
Main drive
- Number of spindles: 1
- Spindle speed range: 1,750 RPM 1/MIN
- Spindle motor power: 5 HP
- Number of axis: 2
Movement
- X-AXIS Movement: 145 mm
- Y-AXIS Movement: 275 mm
Table
- Table load: 660 lbs
Additional equipment
- - Hydraulic pump motor: 1 HP.
Additional Information
- Technical Machine Benefits:
- - Robust grinding wheel speed and size, auto cross feed increment feature.
- - Table size: 305 x 610 mm
- - Maximum table travel: 370 x 699 mm // maximum surface ground: 305 x 610 mm
- - Table to spindle center: 635 mm
- - Grinding wheel size: 355 x 38 x 127 mm
- - Table speed: 16 – 82 fpm.
- - Table guideway: f-v.
- - Auto cross feed increment: 0. 004” – 0. 8”.
- - Cross feed on hand wheel (rev/gra): 0. 2”/0. 001”. // vertical feed in hand wheel (rev/gra): 0. 05” /0. 0002”.
- - Electrics: 220 volts, 3 phase, 60 cycles.
- Qualitative Machine Benefits:
- - Precision controls, adjustable table and spindle settings.
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Alessandro Martini
Payment Terms
Payment in advance
Asset Financing
Products related to ACRA ASG 1224HS

CP 200
VOLLMER - Grinding Machine

S40
STUDER - Cylindrical Grinding Machine

Rundschleiftechnik K52
WEISS - Grinding Machine

LCM 220/4-220/3
SUPFINA - Surface Grinding Machine

30-15 S 2525
WALDRICH COBURG - Grinding Machine

PSGS-3060AH
Proth - Surface Grinding Machine

Fasen Fix 4.1-1500
KUHLMEYER - Grinding Machine

LINEA Iron 08.6
ROSA ERMANDO - Surface Grinding Machine

KGS 615 WMA1
Kent - Surface Grinding Machine

EL 1006
ABA - Surface Grinding Machine

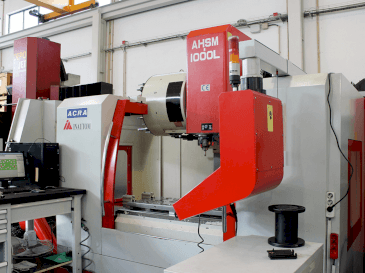

AHSM 1000 L
