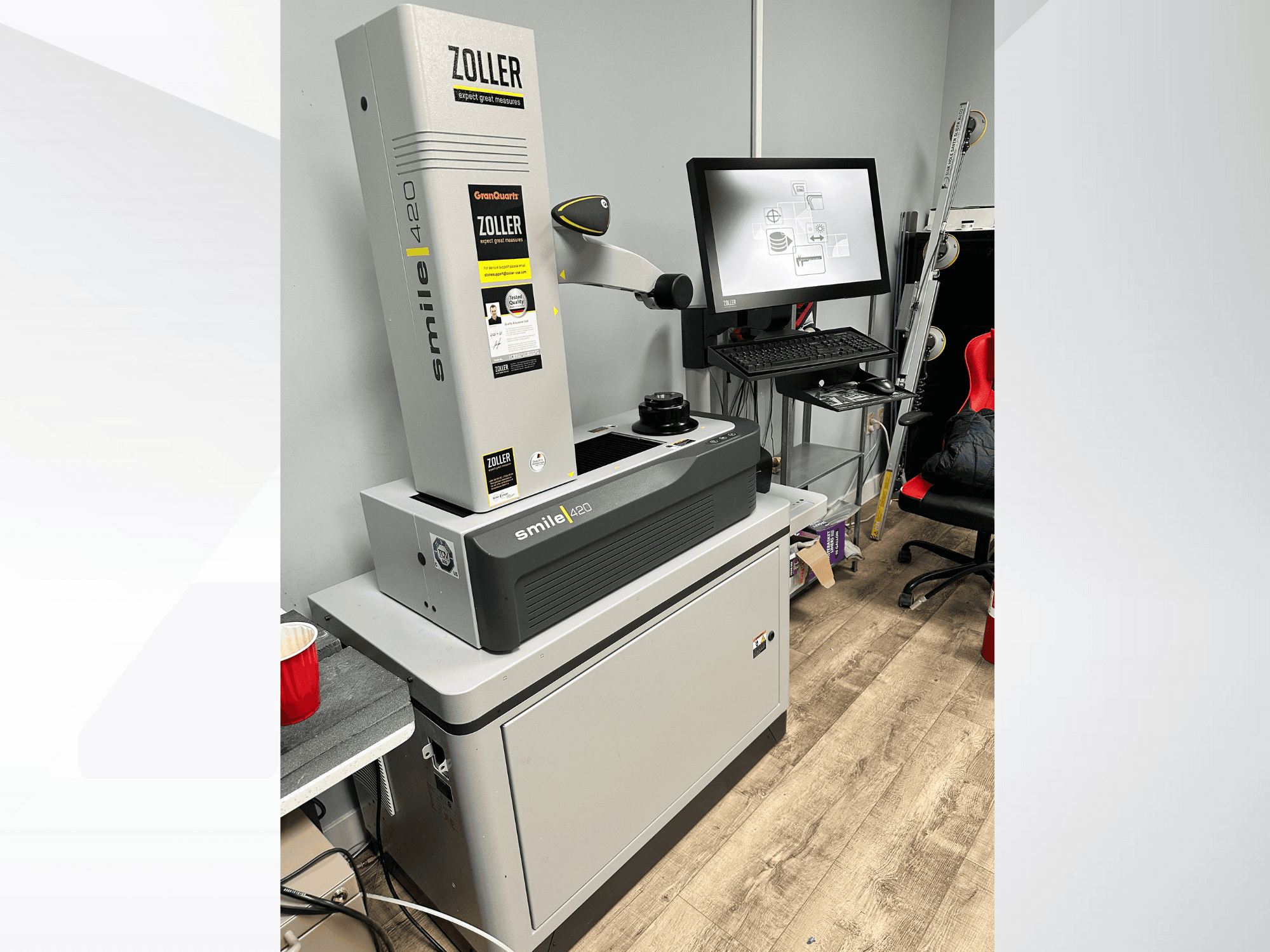

This Zoller Smile 420 was manufactured in 2023. It features image processing technology with a Z-axis length of 400 mm and an X-axis radius of 200 mm. The machine supports a maximum diameter of Ø400 mm and requires a compressed air pressure of 4–6 bar. Ideal for precise optical measurements, consider the opportunity to buy this Zoller Smile 420 optical measurement machine. Contact us for more information about this machine.
Overview
- brand: Zoller
- year: 2023
- MODEL: Smile 420
- application type: Measuring
- Location: United Kingdom
- machine type: Optical Measurement Machine
Technical Information - Zoller Smile 420
Dimensions
- Machine Weight: 175 kg
Additional Information
Measuring system: Image processing technology Pilot 1.0
Z-axis length: 400 mm
X-axis radius: 200 mm
Diameter D: Ø400 mm
Snap gauge D1: Ø100 mm
Concentricity: 2 µm
Setting accuracy: 2 µm
Display accuracy: 1 µm
Repeating accuracy: 2 µm
Compressed Air Required pressure: 4–6 bar, dry and slightly lubricated
Electrical Data:
Voltage: 115–230 V
Frequency: 50/60 Hz ±2%
Power consumption: 230 VA
Power input: 1000–2000 mA
Fuse: F6A (slow)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
