ZIERSCH & BALTRUSCH STARLINE 500E
ZIERSCH & BALTRUSCH - STARLINE 500E
2001
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ZIERSCH & BALTRUSCH STARLINE 500E Grinding Machine

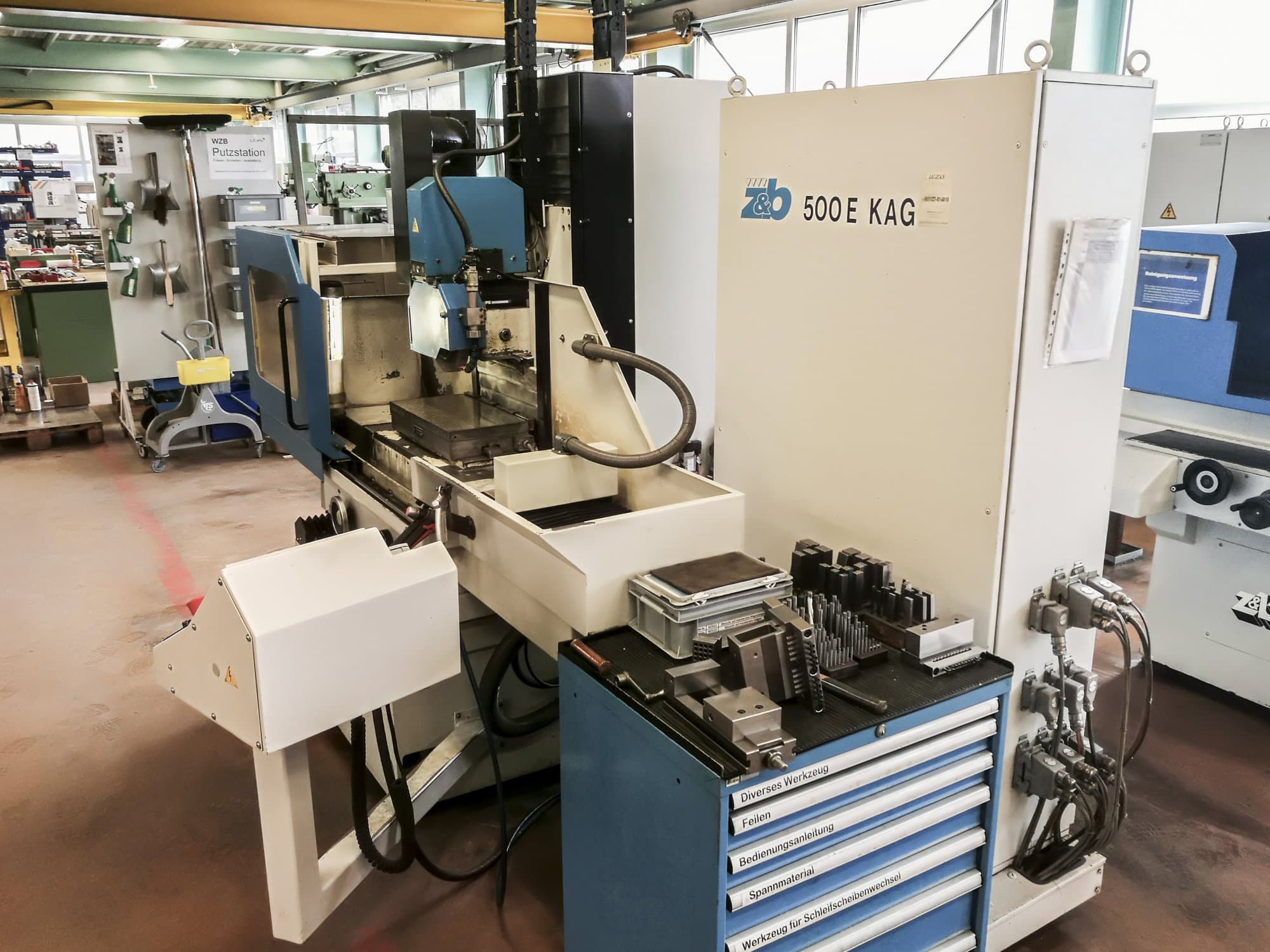

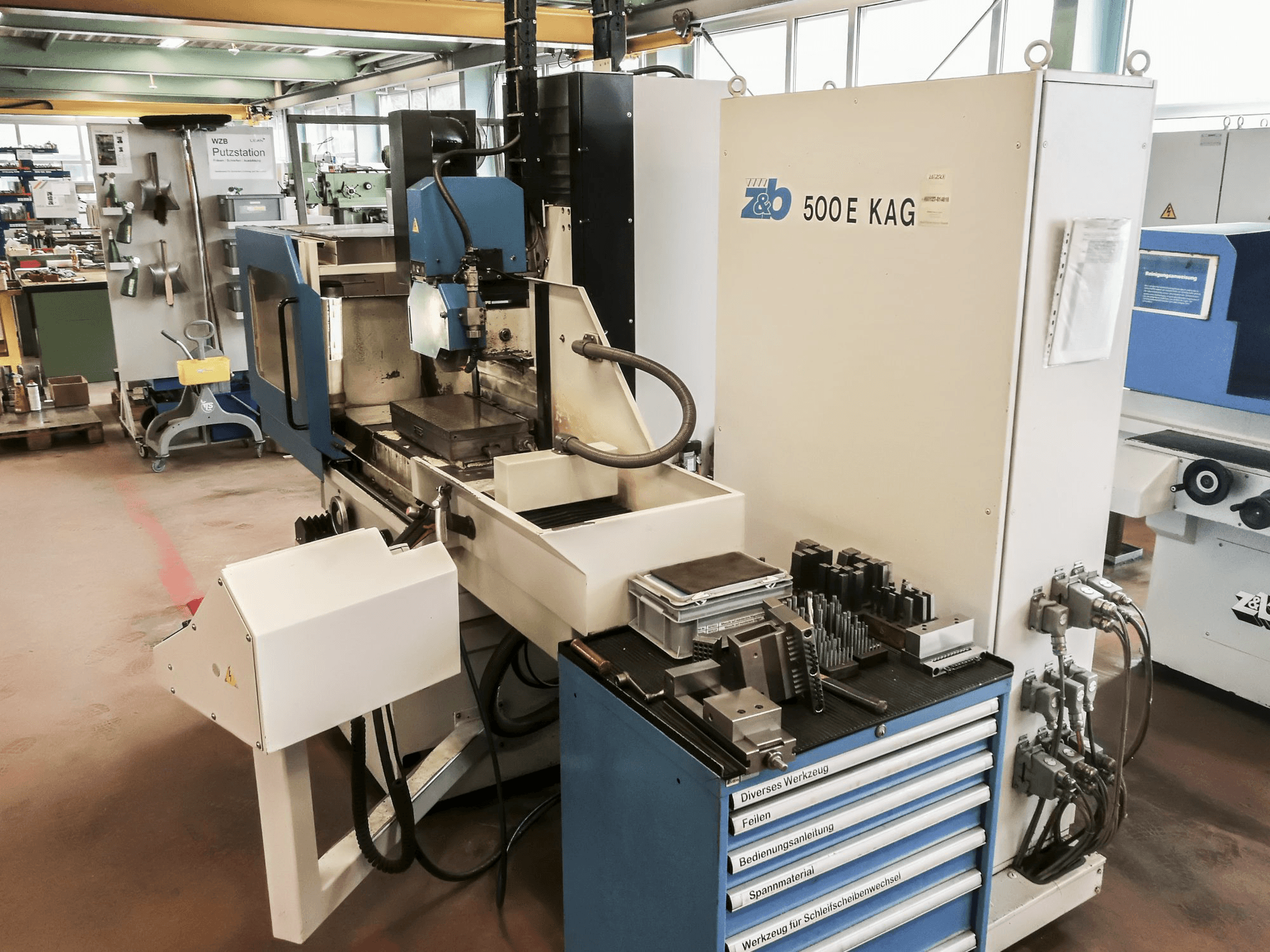

This ZIERSCH & BALTRUSCH STARLINE 500E Grinding Machine was manufactured in Germany in 2001 and has been operative for 8820 production hours since then. Operated through a SIEMENS SIMATIC OP 27 Control unit, this machines prepared workpieces for punching machines out of aluminium and steel during the past. An dust extraction system is included as additional equipment.
Overview
- brand: ZIERSCH & BALTRUSCH
- year: 2001
- MODEL: STARLINE 500E
- production hours: 8820
- application type: Grinding
- Location: Switzerland
- machine type: Grinding machines
- availability: Sold
- control unit brand: SIEMENS
- GINDUMAC ID: CH-GRI-ZIE-2001-00002
Technical Information
General Data
- Measurements width: 2300 mm
- Measurements depth: 1600 mm
- Measurements height: 2100 mm
- Machine weight: 3100 kg
Control Unit
- Brand: SIEMENS
- Model: SIMATIC OP 27
Workpiece
- Workpiece x: 600 mm
- Workpiece y: 300 mm
- Workpiece z: 250 mm
- Workpiece weight: 250 kg
Table
- Outer length: 500 mm
- Outer width: 250 mm
Media
- Main electronic connection: 400 V
- Power consumption: 20 kVA
- Chip conveyor: Yes
- Internal cooling: Yes
Additional equipment
- - Dust extraction system
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
