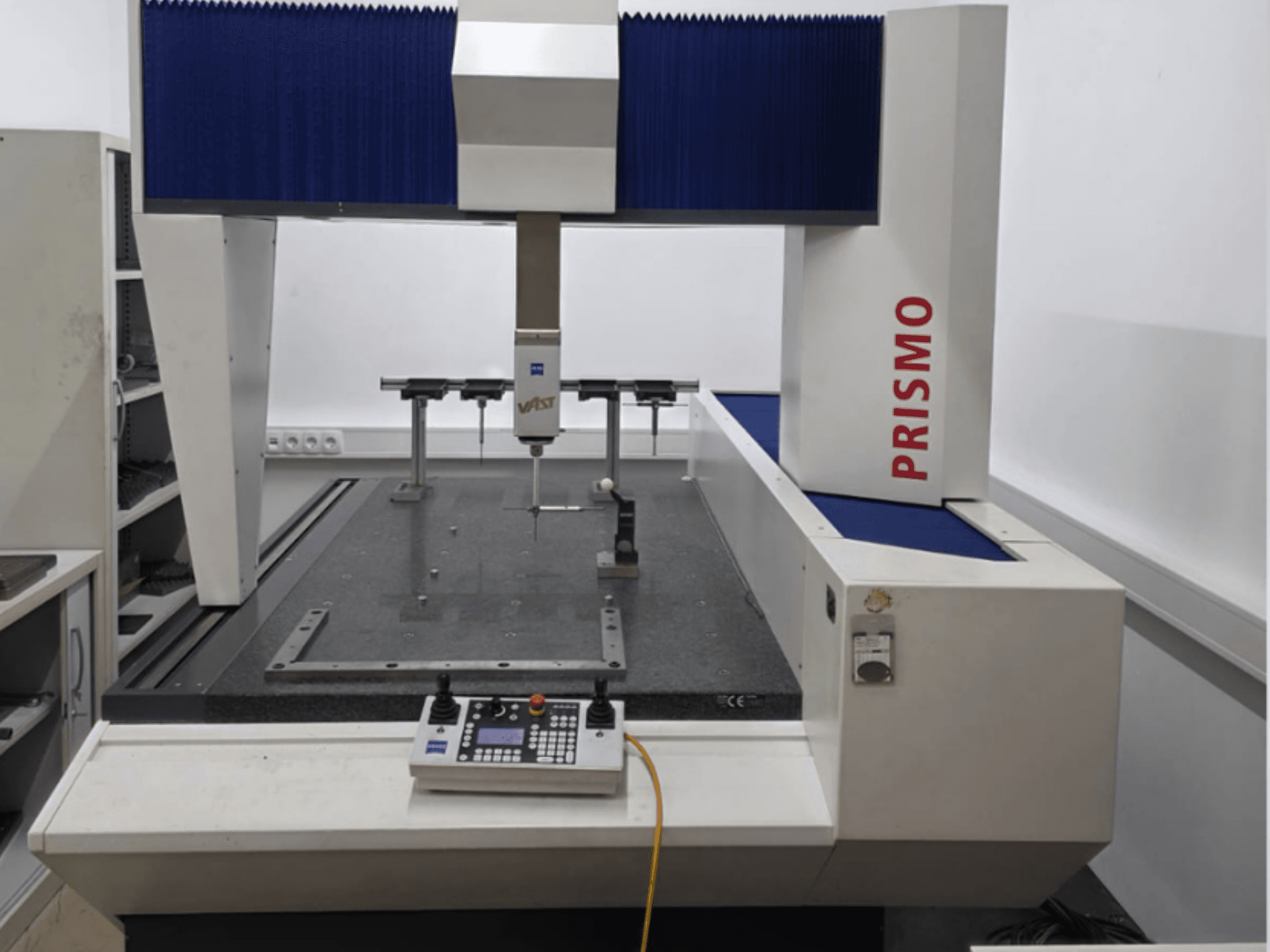

This 3-axis ZEISS prismo 700 was manufactured in 2000. It features a measuring range of 900 mm in the X-axis, 1500 mm in the Y-axis, and 700 mm in the Z-axis. The machine is equipped with Zeiss Calypso 2022 software and an active scanning probing system. If you are looking to get high-quality measurement capabilities, consider the ZEISS prismo 700 CMM machine we have for sale. Contact us for further details.
Overview
- brand: ZEISS
- year: 2000
- MODEL: prismo 700
- application type: Measuring
- Location: Germany
- machine type: Coordinate Measuring Machine (CMM)
Technical Information - ZEISS prismo 700
Movement
- Number of Axes: 3
- X-axis Travel: 900 mm
- Y-axis Travel: 1500 mm
- Z-axis Travel: 700 mm
Additional Information
Controller: Zeiss C99
Control panel: Standard 26 SE
Scale resolution: 0.0002 mm
Display resolution: 0.0001 mm
Linear scales: RSF Robax
Accuracy MPE E0: 2.2 + L/300 µm
Accuracy MPE P: 2.0 µm
Probing deviation P_MPE: 1.5 µm
Repeatability V2: 1.0 µm
Scanning probing deviation P_Form.Sph.Scan: 2.3 µm
Last calibration date: 01.06.2023
Temperature compensation: Automatic (axes and workpiece)
Thermal coefficient: 0.05 µm/m/K
Additional equipment
Measuring software: Zeiss Calypso 2022
Probing system: Zeiss VAST Gold (active scanning)
Computer system: HP Z4
Operating system: Windows 11
Stylus changer: 6-slot magazine
Reference equipment: Reference stylus with plate
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
