- ➤ Used ZEISS GOM ATOS 5 For Sale | gindumac.com

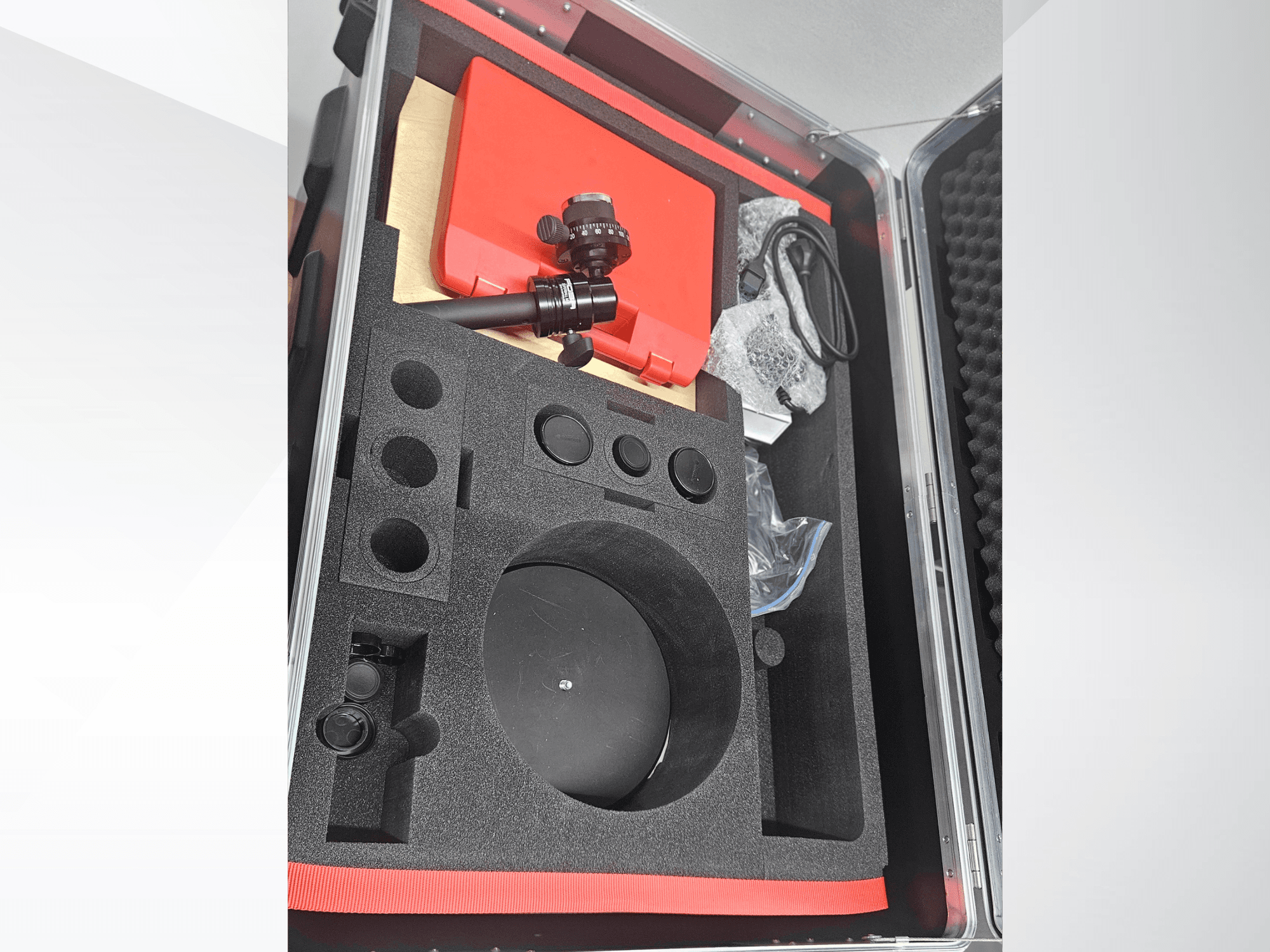

Optical measurement machine manufactured in 2022. This ZEISS GOM ATOS 5 features a scanning principle based on the Triple Scan Principle and utilizes LED structured blue light for precise measurements. It offers a measuring area ranging from 170 × 140 mm to 1000 × 800 mm, with up to 12 million measuring points per scan. If you are looking to get high-quality optical measurement capabilities, consider the ZEISS GOM ATOS 5 machine we have for sale. Contact us for further details.
Overview
- brand: ZEISS
- year: 2022
- MODEL: GOM ATOS 5
- application type: Measuring
- Location: Germany
- machine type: Optical Measurement Machine
Additional Information
Operation: Manual and automated
Light source: LED structured blue light
Scanning principle: Triple Scan Principle
Camera system: 2 high-resolution cameras
Measuring area: 170 × 140 mm up to 1000 × 800 mm
Working distance: 880 mm
Measuring points per scan: 8 million or 12 million
Measurement: Full-field 3D coordinate acquisition, contactless
Resolution: Adjustable depending on measuring area
Operating temperature: +5 °C to +35 °C, non-condensing
Dimensions: approx. 550 × 320 × 200 mm
Software: ZEISS INSPECT
CAD import formats: CATIA, NX, SOLIDWORKS, Pro/E
GD&T analysis: Supported
Digital twin generation: Supported
GPU acceleration: Supported
Data output: Polygon mesh (STL)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
