- ➤ Used WIPOTEC SC 30 Machine Tool For Sale | gindumac.com

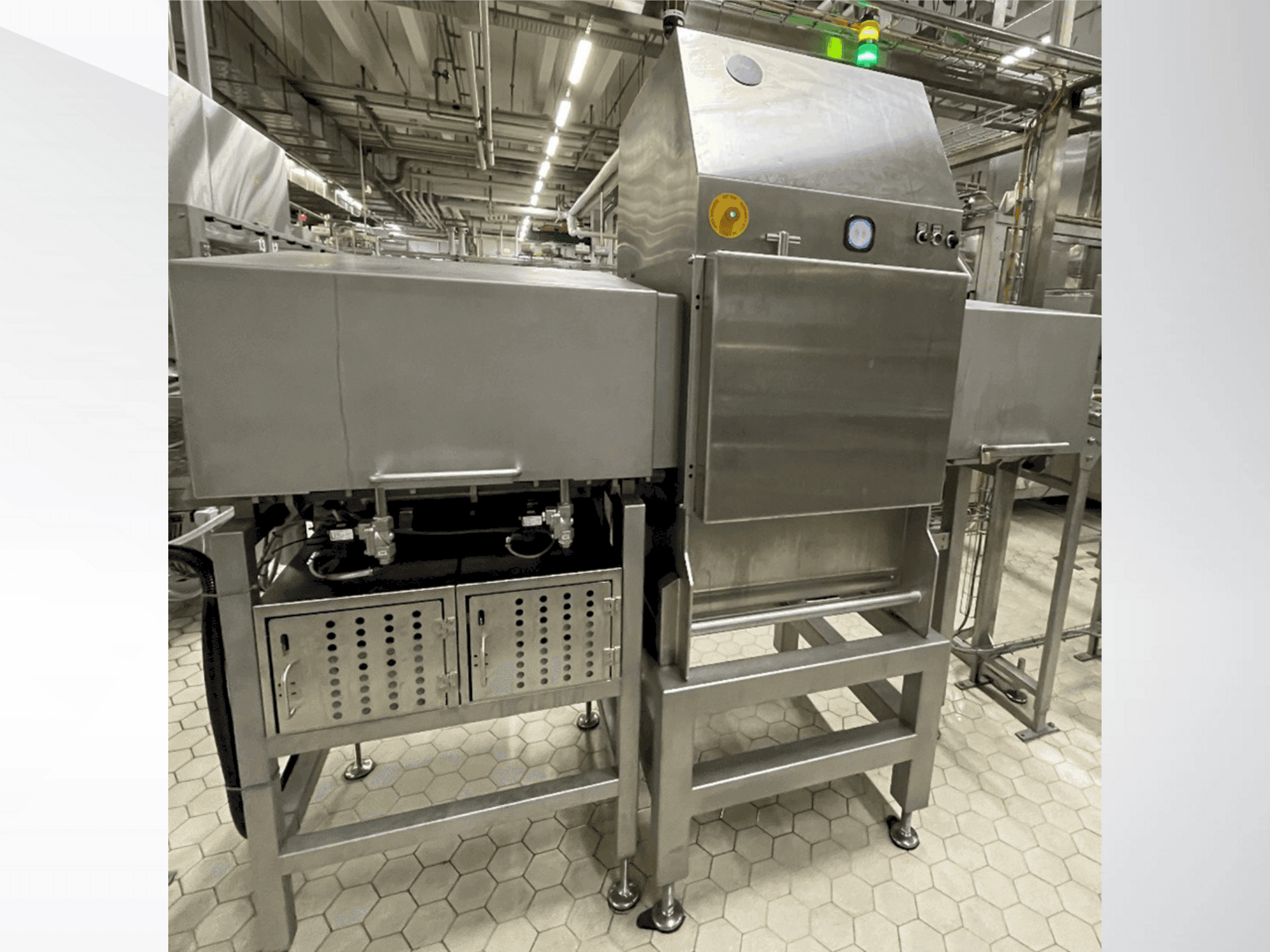

This WIPOTEC SC 30 was manufactured in 2023. It features a high-speed operation with a capacity of up to 240 pieces per minute and a scan width of 320 mm. The system includes stainless steel construction, intuitive touchscreen controls, and an industrial high-performance X-ray unit for precise foreign object detection. Ideal for efficient and accurate sorting operations. Contact us for more information about this machine.
Overview
- brand: WIPOTEC
- year: 2023
- MODEL: SC 30
- application type: Other Machine Tools
- Location: Germany
- machine type: Machine Tool
Additional Information
Additional equipment
- Material: Stainless steel / Mains voltage connection: 230VAC / 50/60Hz/ 1Ph I - approximately 2.4 kVA I - approximately 10 A via separate fused supply line / Temperature range: +5 to +35°C, standard; optional 40°C / General protection class: IP 65 (except switch cabinet door due to cooling) X-ray Technology
Machine Benefits
Technical Machine Benefits
- Speed on customer side: 48 meters per minute/ scan width: 320 mm/ output: minimum 190 pieces per minute, maximum 240 pieces per minute / total length of the system: approximately 2310 mm/ working height: special working height 1027 mm, infinitely adjustable/ working direction: left - right/ sorting method: pneumatic pusher/ sorting direction: against operator side/ operating language: german
- X-ray tube: industrial high-performance x-ray unit / power: max 200 w (80 kv, 3 ma, continuously adjustable)
- Intuitive touchscreen operation / display of all current relevant production data / extensive graphical/numerical displays of production data / high-precision image analysis software uxs for detecting foreign objects
- Intuitive touchscreen operation display of all current relevant production data extensive graphical/numerical displays of production data / high-precision image analysis software uxs for detecting foreign objects
Extra Information
3 units available that are basically brand new, never been put into operation
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
