Windsor - SMC Windor 20LT-OTH-WIN-2005-00001

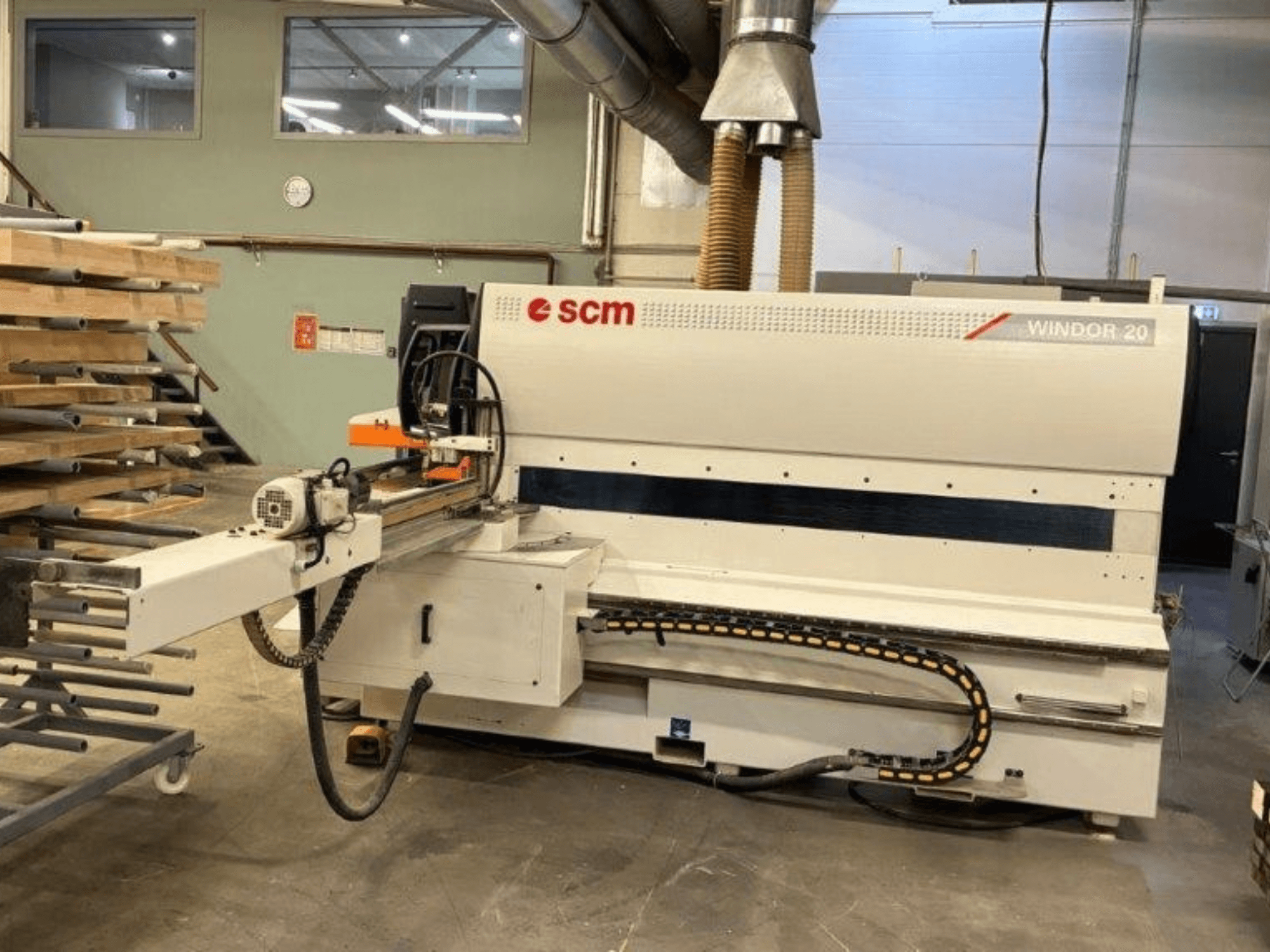

• Machine description: Angle plant machining center for single-sided transversal and lengthwise processing of wooden window and door components

• Status/condition: In working condition, under power; can be seen and tested

• Line: 1088

• Workpiece length: 200–2,800 mm

• Workpiece width: 40–200 mm

• Workpiece thickness: 30–140 mm

• End-cutting/tenoning unit motor: 4 kW

• Tenoning saw blade diameter: 400 mm

• Tenoning spindle length: 620 mm

• Tenoning spindle diameter: 50 mm

• Max. outer tool diameter (tenoning): 320 mm

• Max. tenoning diameter: 370 mm

• Profiling spindles: Minimum 2 spindles (shaft Ø 50 mm, length 320 mm)

• Max. outer tool diameter (profiling): 240 mm

• Profiling power capacity: Typically 10 HP (7.5 kW)

• Auxiliary units: Dedicated shaft for fittings groove milling; integrated glazing bead recovery/trim saw group

• Tenoning carriage speed: 4–25 m/min (electronically controlled automatic two-speed carriage)

• Profiling feed speed: 3–15 m/min

• Angle adjustment: Electronic tilting rule ±60° via automatic SCM “Rotaten” system

• Control & handling: Multi-stroke spindles managed via CNC axes; CNC length stop; powered belt workpiece return system for one-man operation

• Overall dimensions (L × W × H): 6,700–9,500 mm × 4,200–4,500 mm × 2,000 mm

• Total weight: Approx. 4,500–5,500 kg

• Electrical supply: 380 V

Additional equipment

• Full board Euro tool set (2009), very good condition
