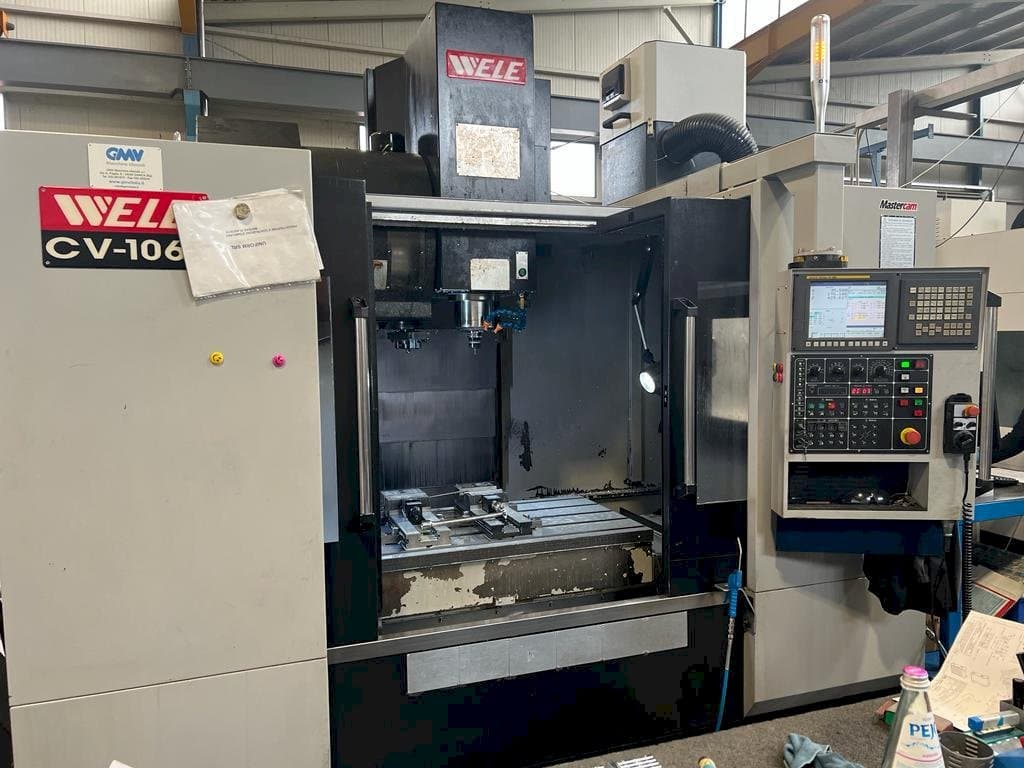

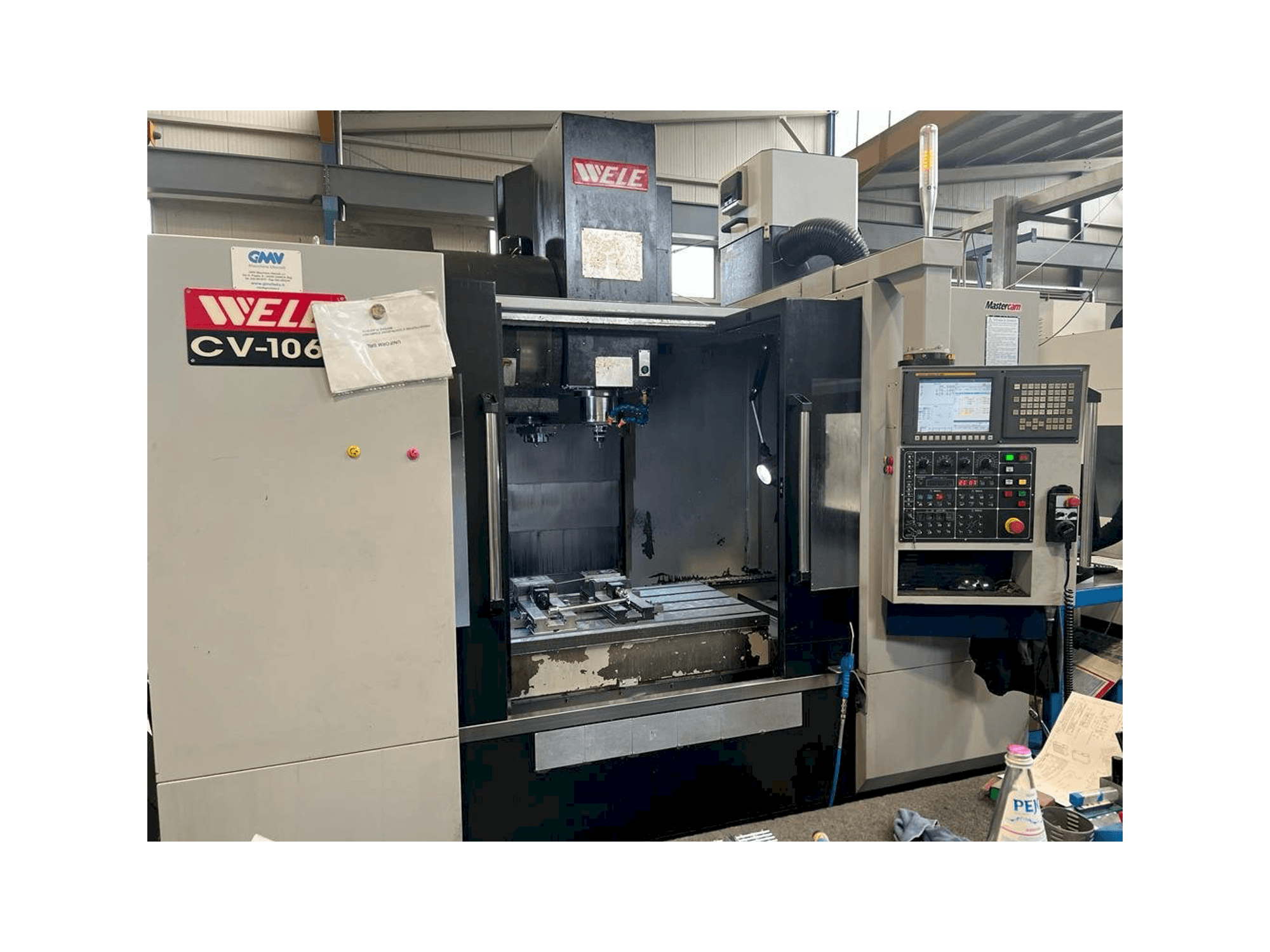

Front view of Wele									 CV 1060  machine

Wele CV 1060

Wele - CV 1060



Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

Click to chat on WhatsApp
Show in original language

This WELE CV 1060 Vertical Machining center was manufactured in the year 2016 in China. It is equipped with a Fanuc Series Oi MD control unit and has 3 axis. The machine has a spindle speed of 10000 rpm.


  • brand: Wele
  • year: 2016
  • MODEL: CV 1060
  • application type: Milling
  • Location: Italy
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: FANUC
  • GINDUMAC ID: IT-MIL-WEL-2016-00001

Technical Information

General Data

  • Measurements width: 3550 mm
  • Measurements depth: 2400 mm
  • Measurements height: 2800 mm
  • Machine weight: 5500 kg

Control Unit

  • Brand: FANUC
  • Model: Series Oi MD

Main drive

  • Spindle speed range: 10000 1/MIN
  • Spindle motor power: 7.5KW
  • Tool taper: BT40
  • Number of axis: 3


  • X-AXIS Movement: 1020 mm
  • Y-AXIS Movement: 600 mm
  • Z-AXIS Movement: 600 mm


  • Outer length: 1150 mm
  • Outer width: 600 mm


  • Slots in storage: 24

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Distance from spindle nose to table: 105 - 705mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Alessandro Martini

Alessandro Martini is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

    (60-120 DAYS)

  • 12 month financing
