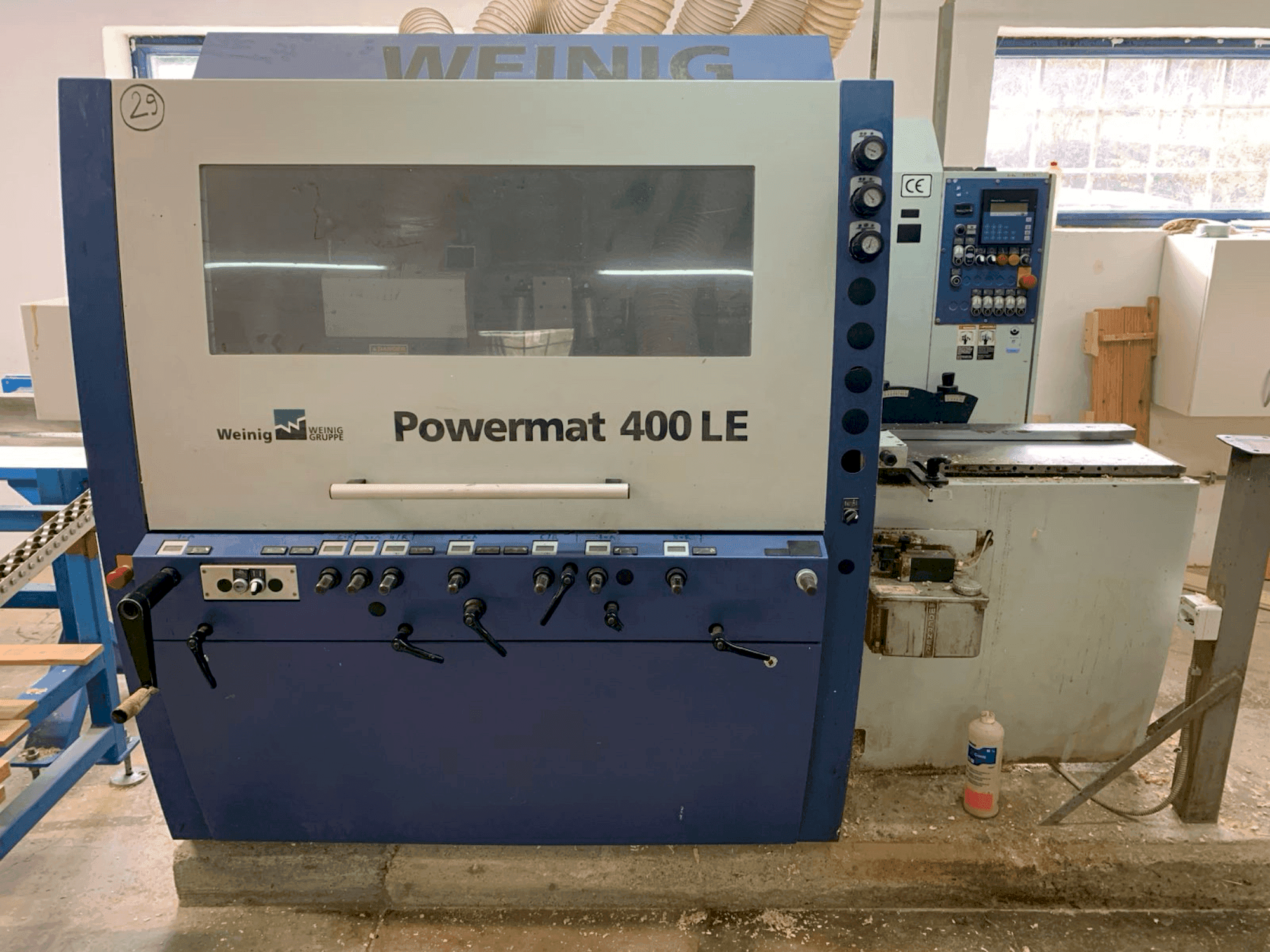

Front view of WEINIG / DIMTER POWERMAT 400LE  machine

WEINIG / DIMTER - POWERMAT 400LESI-PRO-WEI-2007-00001

Rs. 3,387,250
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis WEINIG POWERMAT 400LE wood moulder was manufactured in 2007. It features a robust PowerLock tool mounting system, adjustable feed speeds from 5–30 m/min, and motors up to 10 HP. Ideal for detailed woodworking with maximum tool diameters up to 200 mm and rebate depths up to 35 mm. If you are looking to get high-quality milling capabilities, consider the WEINIG POWERMAT 400LE machine we have for sale. Contact us for further details regarding this machine.

Overview

  • brand: WEINIG / DIMTER
  • year: 2007
  • MODEL: POWERMAT 400LE
  • application type: Profiling
  • Location: Slovenia
  • machine type: Wood Moulder
  • availability: Immediately

Technical Information - WEINIG / DIMTER POWERMAT 400LE

    Additional equipment

    • - PowerLock mounting for all tool holders
    • - Additional set of tool arbor rings: diameter 40 mm, length 170 mm
    • - Electrical system for machine mechanization includes an infeed roller with a freewheel gearbox

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - 1st tool holder (first bottom tool holder): motor with brake: 5. 5 kw (7. 5 hp) powerlock system for tool mounting spindle speed: 6000 rpm tool diameter: 93–160 mm axial adjustment range: 5 mm grooving device with special knife z=2 and grooving cutter for 230 mm working width
        • - 2nd tool holder (first right tool holder): motor with brake (shared with left tool holder): 7. 5 kw (10 hp) powerlock system for tool mounting spindle speed: 6000 rpm tool diameter below table level: 40–55 mm maximum diameter for straight knife heads: 93–200 mm maximum rebate depth: 35 mm axial adjustment range: 55 mm
        • - 3rd tool holder (first left tool holder): shared motor with right tool holder powerlock system for tool mounting spindle speed: 6000 rpm tool diameter below table level: 40–55 mm maximum diameter for straight knife heads: 93–200 mm maximum rebate depth: 35 mm axial adjustment range: 55 mm
        • - 4th tool holder (first top tool holder): motor with brake: 7. 5 kw (10 hp) powerlock system for tool mounting spindle speed: 6000 rpm maximum tool diameter: 200 mm maximum rebate depth: 35 mm axial adjustment range: 40 mm adjustable and retractable pressure shoe
        • - 5th tool holder (second bottom tool holder): motor with brake: 5. 5 kw (7. 5 hp) powerlock system for tool mounting spindle speed: 6000 rpm maximum tool diameter: 200 mm maximum rebate depth: 15 mm axial adjustment range: 35 mm
        • - Beveling unit: mounted at 45° angle on the last top tool holder motor: 1 kw (1. 3 hp) spindle speed: 10600 rpm tool diameter: 61 mm
        • - Feed system: frequency-controlled feed motor: 3 kw (4 hp) adjustable speed: 5–30 m/min infeed rollers with patented system
        • - Operating voltage: 400 v (range 380–420 v), 50 hz
        • - Electrical equipment compliant with din vde 0113 and en 60204 standards
        • - Operating hours counter

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
