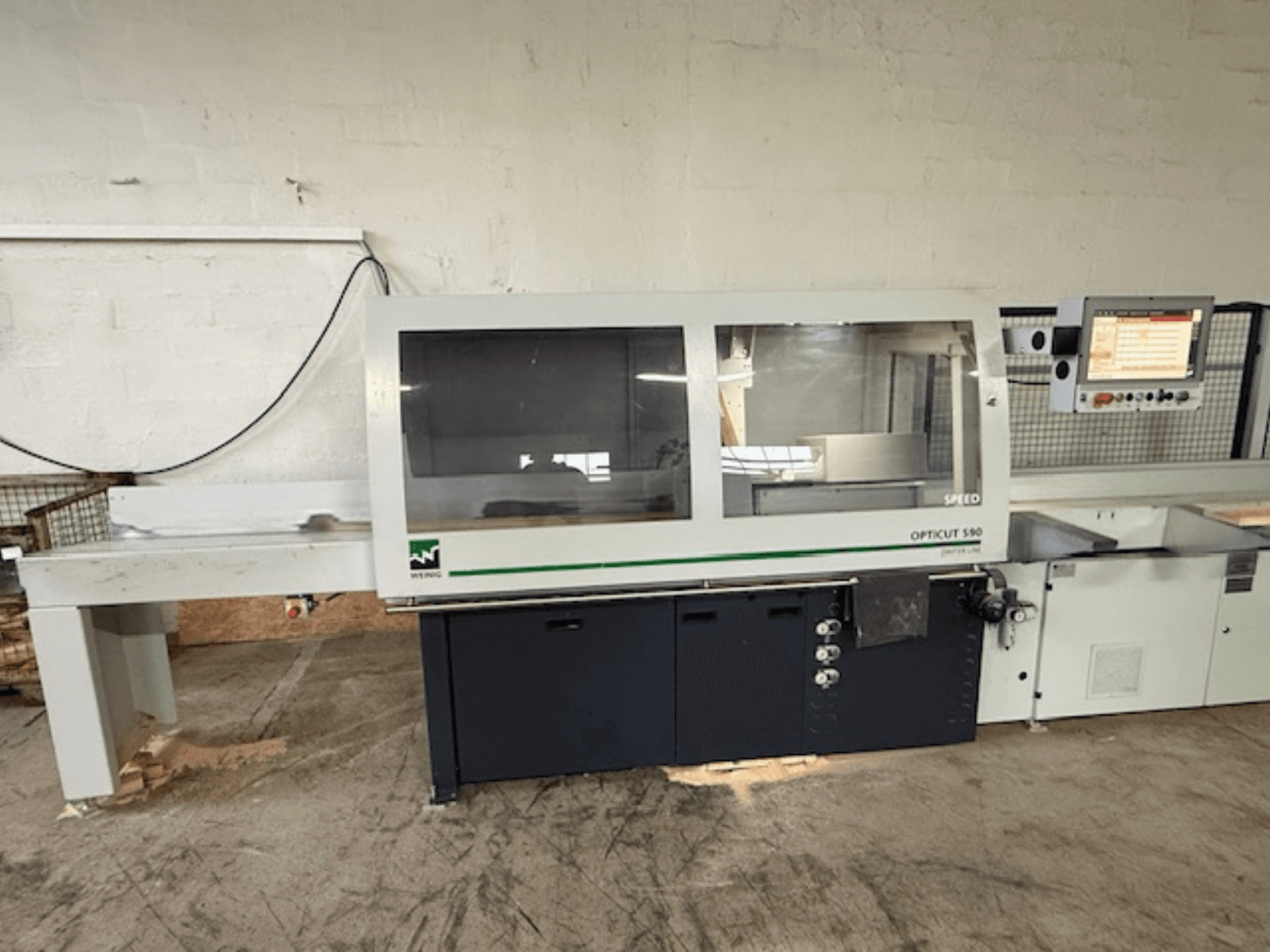

WEINIG / DIMTER - Opticut S90DE-SAW-WEI-2018-00001

Saw blade

• Diameter: 500 mm

• Bore: 30 mm

• Adjustable saw blade speed: 40–100% via frequency converter

Workpiece capacity

• Input length (min/max): 400–6,300 mm

• Width (min/max): 20–300 mm

• Thickness (min/max): 10–120 mm

• Maximum cutting height: 120 mm

• Minimum cross-section: 20 x 10 mm

• Maximum cross-section 1: 215 x 120 mm

• Maximum cross-section 2: 300 x 40 mm

• Permissible timber curvature: max 2 mm/m or 8 mm over entire length

• Table inclination: 10°

Motion and accuracy

• Positioning speed (reverse stroke): max approx. 180 m/min

• Positioning speed (forward stroke): max approx. 60 m/min

• Positioning accuracy: +/- 0.1 mm

Motors and power

• Pusher motor power: 5.1 kW

• Saw motor power: 7.5 kW

• Total electrical load: approx. 15 kW

Control and interface

• Control unit: OptiCom Pro with 18.5" touch screen

• Screen resolution: 1366 x 768 pixels

• Protection class (front): IP65

• Interface: USB port and Ethernet network connection

• Data format: CSV (ASCII) for import/export

Utilities and environment

• Voltage: 400 V / 50 Hz

• Operating pressure: 6–8 bar (min.)

• Air consumption: approx. 250 NL/min

• Extraction connection: diameter 125 mm

• Required extraction performance: speed approx. 30 m/s; volume approx. 1,300 m³/h

• Noise level (idling): ≤ 85 dBA
