- ➤ Used WEINIG / DIMTER WEINIG QUATTROMAT 23 P | Wood Mill

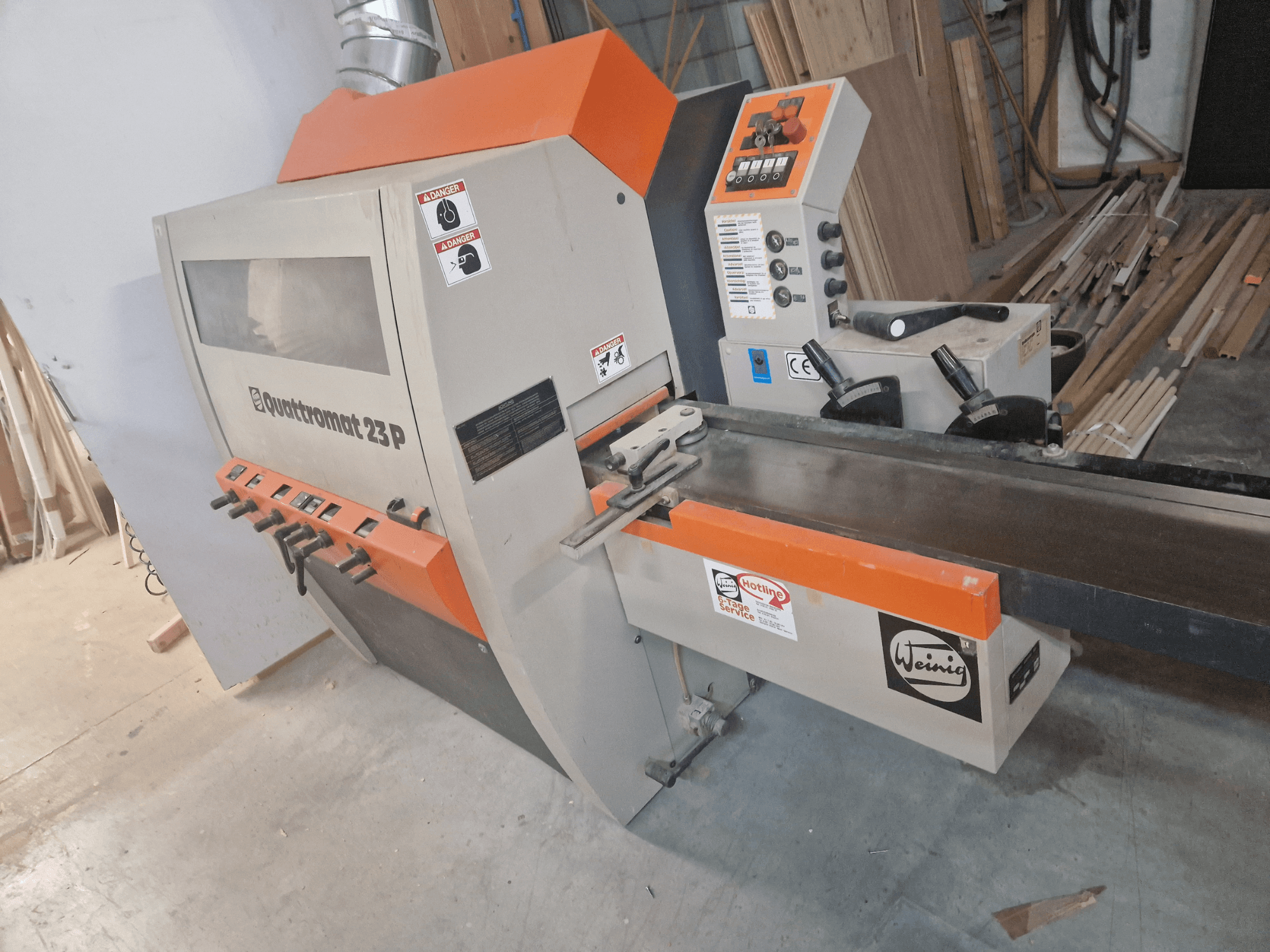

This WEINIG QUATTROMAT 23 P was manufactured in 1999. A robust wood mill, it features a working width of 13-230 mm and height of 6-120 mm. It includes four spindles with motor powers ranging from 4 to 11 kW, ensuring efficient operation. The feed speed is 8 m/min, and the spindle speed reaches 6000 rpm. Consider the opportunity to buy this WEINIG QUATTROMAT 23 P wood mill. Contact us for more information.
Overview
- brand: WEINIG / DIMTER
- year: 1999
- MODEL: WEINIG QUATTROMAT 23 P
- application type: Milling (Wood)
- Location: Germany
- machine type: Wood Mill
Technical Information - WEINIG / DIMTER WEINIG QUATTROMAT 23 P
Technical Specification
- Spindle Power: 11 kW
- Spindle Speed: 6000 RPM
Additional Information
Working width: 13–230 mm
Working height: 6–120 mm
Number of spindles: 4
Motor power (planing spindle): 4–7.5 kW (5.5–10 hp)
Motor power (vertical spindles): 5.5–11 kW (7.5–15 hp)
Motor power (upper spindle): 4–11 kW (5.5–15 hp)
Motor power (feed): 1.5 kW (2 hp)
Spindle diameter: 40 mm
Tool swing of throat spindles: 125–200 mm
Spindle adjustment range (axial): 30 mm
Dressing spindle adjustment range: 5 mm
Feed speed: 8 m/min
Feed roller diameter: 140 mm
Feed roller width: 2 × 50 mm
Outfeed table roller width: 50 mm
Adjustment range for dressing table and jointing ruler: 10 mm
Right stop height: 60 mm
Planing table length: 2 m
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
