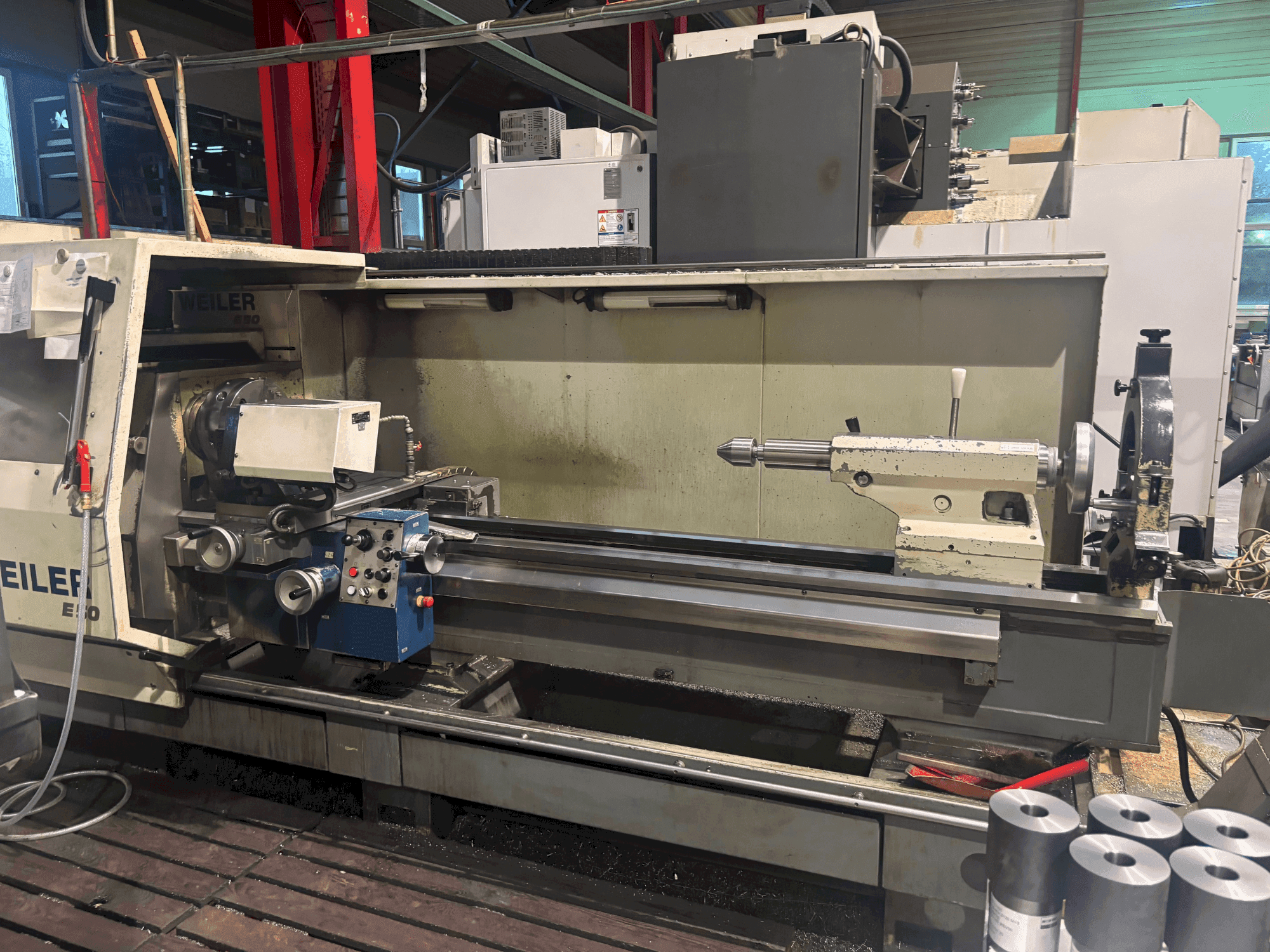

Weiler - E50 AT-TUR-WEI-2009-00001

Machine Benefits

Qualitative Machine Benefits

• Spindle diameter in the front bearing: 120 mm
• Spindle bore: 83 mm
• Inner taper of the main spindle: metric 90
• Feed range longitudinal and planar: 0-20 mm/rev
• Feed force longitudinal: 10000 n
• Feed force planar: 7000 n
• Input speed longitudinal/planar: 10/7 m/min or 5/3. 5 m/min
• Metric threads: 0. 1-400 mm
• Inch threads: 1/4" - 56 g/1"
• Module threads: 0. 125 - 28

Technical Machine Benefits

• Drive power (60% / 100% ed): 20/17 kw
• Max. Torque at the turning spindle: 1600 nm
• Gear stage i: 1-625 min-¹
• Gear stage ii: 4-2500 min-¹
• Bed width: 350 mm
• Quill diameter: 80 mm
• Quill stroke: 200 mm
• Inner taper of the quill: mk 5
• Turning tool cross-section (height/width): 32 x 25 mm
• Spindle head according to din 55027: size 8

Extra Information

Machine still under power/ DP threads: 1 - 224/ Fixed steady rest clamping range: 12-150 mm / 120-270 mm/ Moving steady rest clamping range: 12-125 mm/ The machine has been working effectively in 1-shift operation since it was purchased/ The chuck incl. hard & several sets of soft jaws and the tailstock can be supplied as accessories/ Any associated tools could be discussed in the event of an order/ The footprint of the machine is 2.8m x 5.2m, the 2.8m already includes 600mm as a workstation/ All manuals are available.
