- ➤ Used WALDRICH KLEINKNECHT WS III C 6.00 X 5000 CNC For Sale

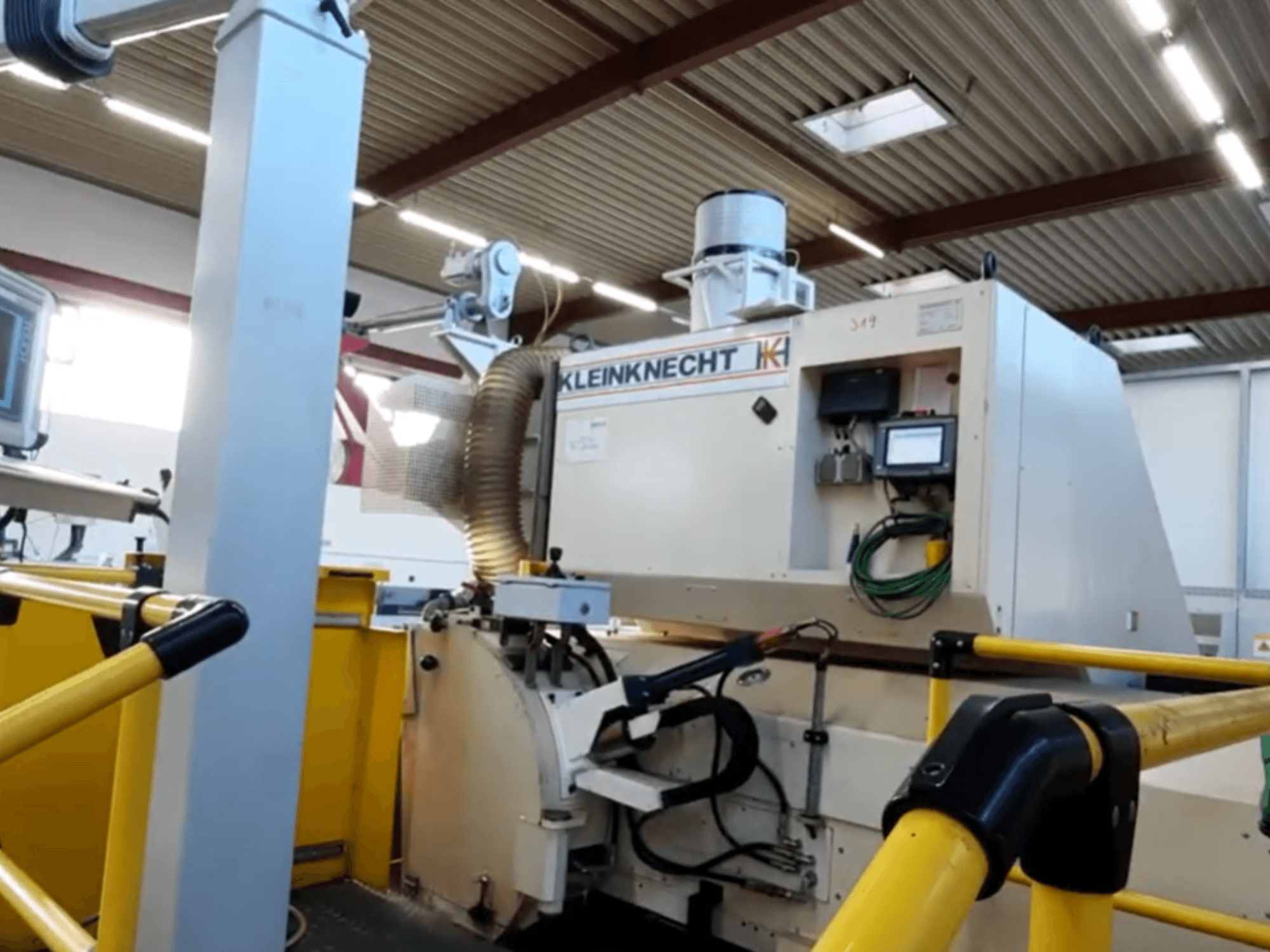

This 4-axis WALDRICH KLEINKNECHT WS III C 6.00 X 5000 CNC was manufactured in 2017. It features a maximum grinding length of 5,000 mm and a roll diameter capacity of approximately 600 mm. The machine is equipped with a modern CNC control system and includes essential safety equipment. If you are looking to get high-quality grinding capabilities, consider the WALDRICH KLEINKNECHT WS III C 6.00 X 5000 CNC cylindrical grinding machine we have for sale. Contact us for further details.
Overview
- brand: WALDRICH KLEINKNECHT
- year: 2017
- MODEL: WS III C 6.00 X 5000 CNC
- application type: Grinding
- Location: Germany
- machine type: Cylindrical Grinding Machine
- control unit brand: SIEMENS
Technical Information - WALDRICH KLEINKNECHT WS III C 6.00 X 5000 CNC
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIC TOUCH DITTLE control
Dimensions
- Machine Weight: 40000 kg
Movement
- Number of Axes: 4
- X-axis Travel: 5000 mm
Technical Specification
- Spindle Power: 31 kW
- Spindle Speed: 2000 RPM
Additional Information
- Maximum Workpiece Length: 5,450 mm
- Maximum Grinding Diameter: 1,100 mm
- Center Height: 750 mm
- Maximum Workpiece Weight: 6,500 kg
- Main Motor Power: 22 kW
- Grinding Spindle: Siemens, 31 kW
- Control System: Siemens Sinumerik Touch with Dittel balancing/monitoring control
- Measuring System: WMG model WMG 9900 integrated 2-point online roll measuring system (range 200–1,000 mm)
- Safety Equipment: Perimeter industrial safety fencing (yellow/black posts and mesh panels) surrounding the operational zone
- Workpiece Support: Hydrostatic/journal steady rests included
- Cooling/Extraction: Dedicated dust and oil mist extraction filtration unit connected via flexible ducting directly above the grinding head
- Auxiliary Equipment: Separate hydraulic power unit, floor-mounted electrical control cabinets with active cooling units, and high-flex cable carrier tracks (drag chains) along the axis travel path
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
