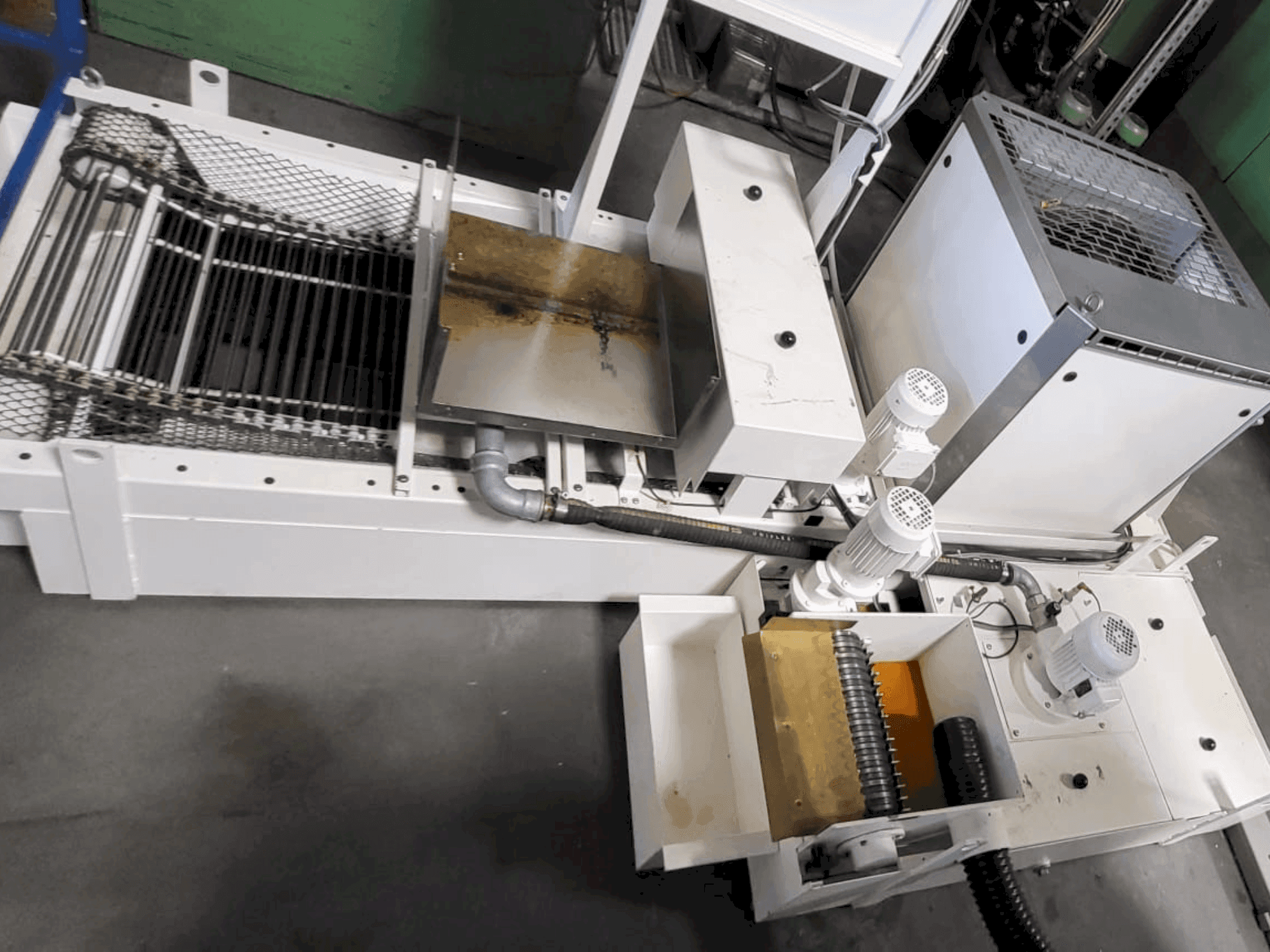

This VOUMARD VM 110 CNC T was manufactured in 2008. A robust internal grinding machine, it features a GE FANUC Series 31i-Model A control, a maximum grinding diameter of 150 mm, and a depth of 80 mm. It supports a longitudinal travel (Z-axis) of 300 mm and a cross travel (X-axis) of 220 mm. Consider the opportunity to buy this VOUMARD VM 110 CNC T internal grinding machine. Contact us for more information.
Overview
- brand: VOUMARD
- year: 2008
- MODEL: VM 110 CNC T
- application type: Grinding
- Location: Romania
- machine type: Internal Grinding Machine
- control unit brand: FANUC
Technical Information - VOUMARD VM 110 CNC T
Control Unit
- Control Brand: FANUC
- Control Model: 31i-Model A
Dimensions
- Machine Depth: 2000 mm
- Machine Height: 2100 mm
- Machine Weight: 3000 kg
Movement
- X-axis Travel: 220 mm
- Z-axis Travel: 300 mm
Additional Information
Additional equipment
- Workpiece spindle motor: 2 kW
Machine Benefits
Technical Machine Benefits
- Max. Grinding diameter: 150 mm
- Max. Grinding depth: 80 mm
- Centre height: 245 mm
- Centre height over slide: 130 mm
- Number of positions: 4
- Air connect: 5 bar
- Voltage: 50 hz 3x 400 volt
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
