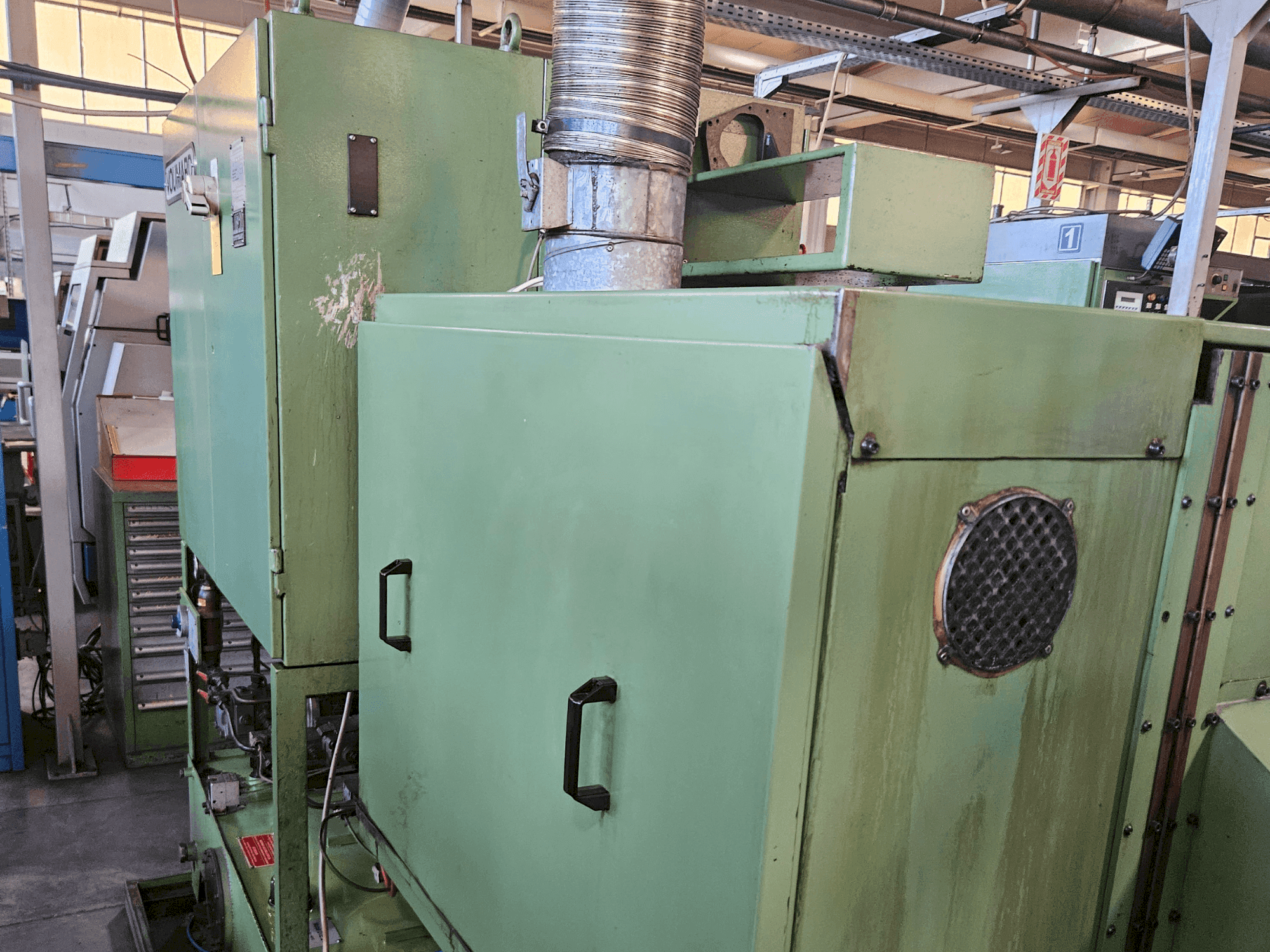

VOUMARD - 203 C 31RO-GRI-VOU-1985-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used VOUMARD 203 C 31 For Sale | gindumac.com
This VOUMARD 203 C 31 was manufactured in 1985. It features a swing diameter of up to 380 mm, internal grinding capacity ranging from 5 mm to 120 mm, and a grinding depth of 160 mm. The spindle speed reaches up to 6,000 RPM, supported by a powerful 9-15 kW motor. Ideal for precise internal grinding tasks. Contact us for more information.
Overview
- brand: VOUMARD
- year: 1985
- MODEL: 203 C 31
- application type: Grinding
- Location: Romania
- machine type: Internal Grinding Machine
Technical Information - VOUMARD 203 C 31
Dimensions
- Machine Depth: 2200 mm
- Machine Height: 1800 mm
- Machine Weight: 4500 kg
Technical Specification
- Spindle Power: 9 kW
- Spindle Speed: 6000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Table travel longitudinal (z): 300–550 mm
- Table travel transverse (x): 100 mm
- Swing diameter over table: 380 mm
- Swing over ways: 380 mm
- Spindle through-hole: 30 mm
- Internal grinding capacity min: 5 mm
- Internal grinding capacity max: 120 mm
- Grinding depth: 160 mm
- Electrical supply: 3-phase, 380 v, 50 hz; plate rated 35 a
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
