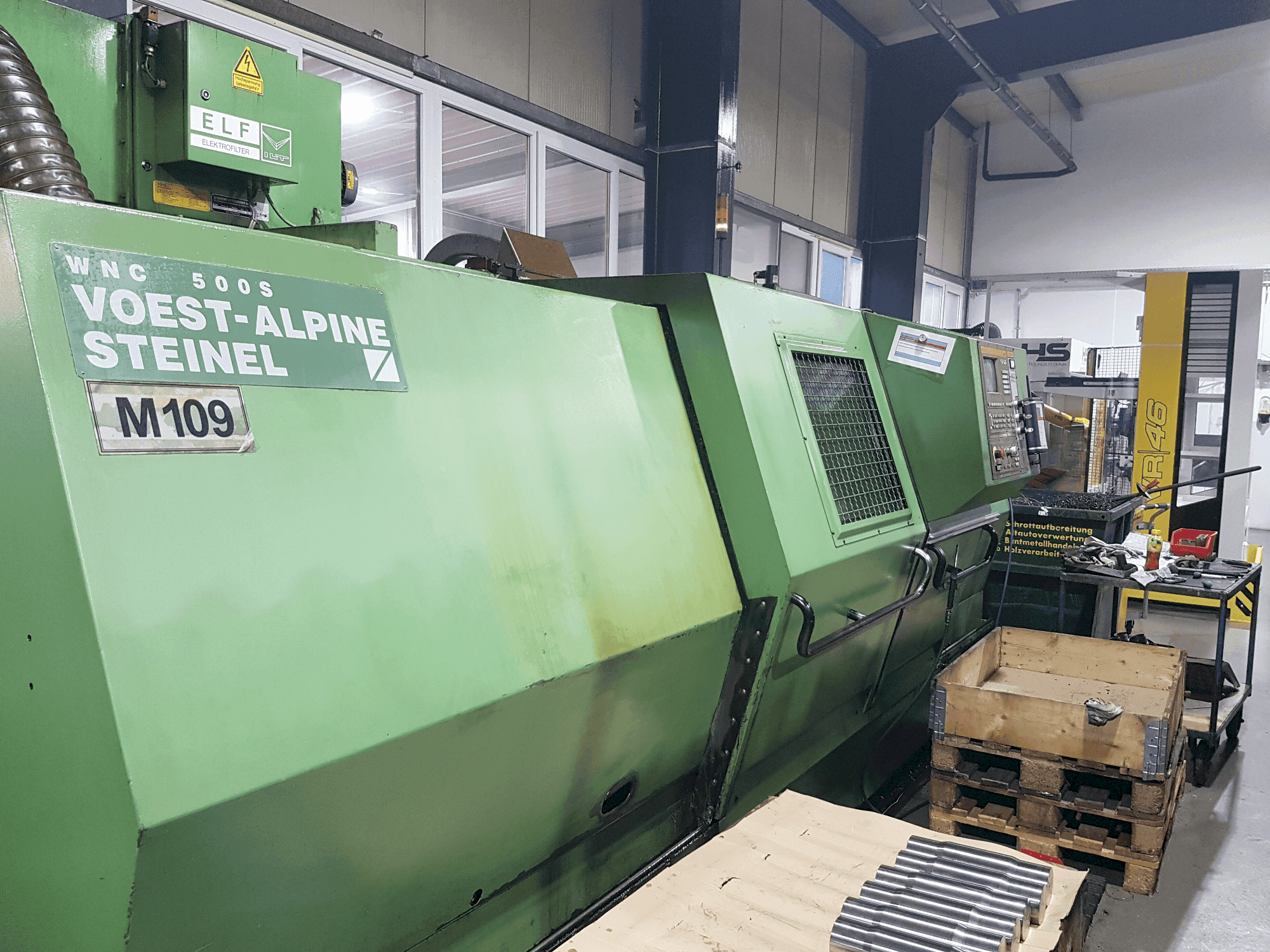

Front view of Voest Alpine WNC 500 S/1.6  machine

Voest Alpine WNC 500 S/1.6

Voest Alpine - WNC 500 S/1.6

1992

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This VOEST ALPINE WNC 500 S/1.6 Lathe was manufactured in 1992 in Austria. It is equipped with 2-axis (Z-travel 1715mm, X-travel 305mm), a SIEMENS SINUMERIK control. This machine stands out for its stability and is in well maintained condition with direct availabilty. See original tech specs attached.

Overview

  • brand: Voest Alpine
  • year: 1992
  • MODEL: WNC 500 S/1.6
  • application type: Turning
  • Location: Germany
  • machine type: Lathe
  • availability: Sold
  • control unit brand: SIEMENS
  • GINDUMAC ID: DE-TUR-VOE-1992-00001

Technical Information

General Data

  • Machine weight: 10000 kg

Control Unit

  • Brand: SIEMENS
  • Model: SINUMERIK

Main drive

  • Spindle speed range: 4000 rpm 1/MIN
  • Spindle motor power: 37.5 kW
  • Spindle bore: 77 mm

Movement

  • X-AXIS Movement: 1715 mm
  • Z-AXIS Movement: 305 mm

Turret

  • Number of tool slots: 12
  • Tool taper: VDI 3425

Tail Stock

  • Pinol diameter: 100 mm
  • Pinol force: 3000 - 12500 (adjustable)
  • Pinol way: 60 mm/s
  • Pinol tool taper: SK 30

    Additional equipment

    • - Hydraulic power clamping device Type: OZRJ 175, FORKARDT (50mm / 5500 min -1)
    • - Power-operated three-jaw chuck from SMW Type KNCS 315 65 3A 8 (315mm / 18800 daN)
    • - Hydraulic steady rest SMW Type SLK 212 Z 80 V (20-120mm)
    • - Face driver from NEIDLEIN
    • - Chip transport and coolant device (1100 mm / 250l)

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Tip width: 160 mm
        • - Max. Turning diameter between centers: 360 mm
        • - Turning diameter over bed: 540 mm
        • - Turning diameter over carriage: 450 mm
        • - Spindle diameter in front bearing: 120 mm
        • - Spindelkopf: din/gr. 55026 / 8
        • - Shank diameter vdi holder: 40 mm

      Extra information

      • - Height of turning spindle above floor: 1100 mm

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
