Victor Vturn-A26

Photo Gallery

Victor - Vturn-A26SK-TUR-VIC-2011-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

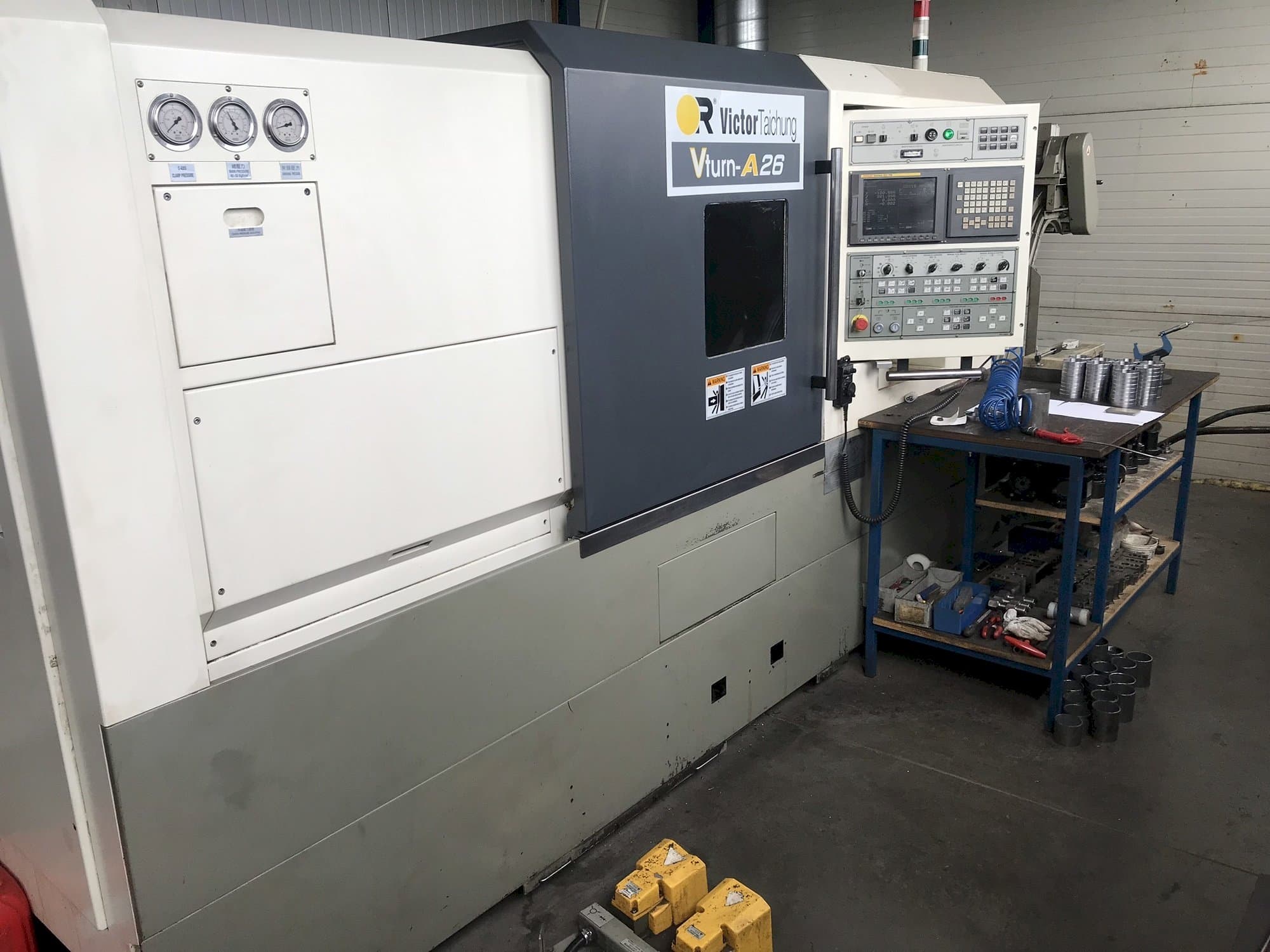

Victor Vturn-A26 Lathe

Show in original language

This Victor Vturn-A26 Lathe was built in 2011 in Taiwan. It has been working for only 2230 hours. It is equipped with a Fanuc Series 21i-TB control unit. This machine incorporates 1 spindle and can operate with a spindle speed up to 3500 rpm. It includes 3 sets of jaws, 24 pcs of tool holders (5 driven), and a 12“ hydraulic chuck.

Overview

brand: Victor
year: 2011
MODEL: Vturn-A26
production hours: 2230
application type: Turning
Location: Slovakia
machine type: Vertical Turning Machine
control unit brand: FANUC

Technical Information - Victor Vturn-A26

Control Unit

Model: Series 21i-TB
CNC main language: Czech
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 3500 1/MIN
Spindle motor power: 15/22 kW

Movement

X-AXIS Movement: 142,5 mm + 117,5 mm
Z-AXIS Movement: 850 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12
Max tool diameter: 40 mm
Max tool length: 25 mm

Media

Main electronic connection: 380 V
Power consumption: 44 kVA
Chip conveyor: Yes

Additional Information

Additional equipment

12“ hydraulic chuck
3 sets of soft jaws
24 pcs of tool holders (5 driven)

Machine Benefits

Technical Machine Benefits

Swing over bed 900 mm
Max. Turning diameter 351 mm
Turning length 950 mm
Spindle bore diameter 86 mm
Vdi 40 victor turret with 12 positions (all for live tools)
Spindle dds with c axis indexed by 0. 001 degree with a brake
High-pressure cooling grundfos spk 2-3
Manual arm with renishaw tool probe
Programmable tailstock

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
