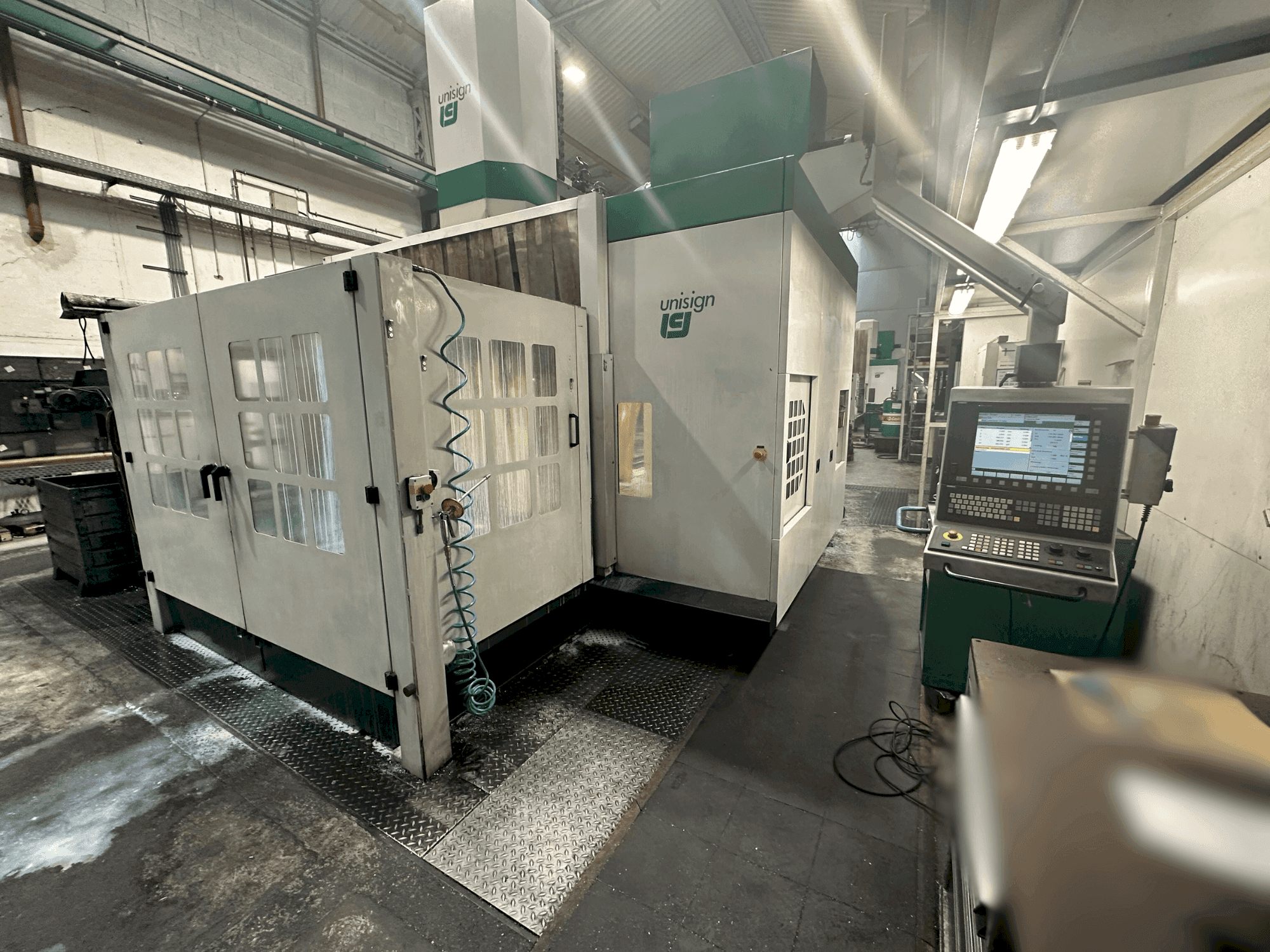

Unisign - UNIPORT 6000DE-MIL-UNI-2005-00001

Additional equipment

• Switch cabinet: 98276h /Program active: 51778h/ Spindle, feed or tool change: 12808h /Spindle and feed without tool change: 10690h

Machine Benefits

Qualitative Machine Benefits

• Positioning accuracy: ±0. 001° (c-axis drive)
• Repeatability: ±0. 0005° (c-axis drive)
• Measurement system: direct (presumably rod type)
• Maximum speed: 10 min⁻¹

Technical Machine Benefits

• Max torque: 720 nm
• Max drilling pressure: 16000 n
• Tool change time: 10 seconds
• Positioning tolerance: ±12 µm
• Repeatability: ±8 µm
• Electrical connection: 400 v / 3 ph / 50 hz
• Power consumption: 55 kva
• Compressed air: 6 bar, 20 l/min
• Interference circle: 2500 mm
• Max. Load on the faceplate: 10 tons

Extra Information

Turning package on Uniport 6000, consisting of: Vertical turning station 70 kW / 250 rpm / 33,000 Nm High-precision C-axis operation Turning attachment head with HSK 100 tool holder Pick-up station for turning attachment head Enclosure with access doors (open at the top), partition wall 2,000 mm faceplate® with 12 T-slots, 8 T-slots (half-length and star-shaped), and 4 locking slots for the claw box (claw box not included) Column longitudinal travel X: from 3,000 to 12,000 mm • Column passage width: from 1,500 to 3,000 mm • Cross slide travel Y: from 1,500 to 3,000 mm 0 0 0 m m • Table width: from 1,170 to 2,670 mm • Column clearance: 1 , 1 0 0 or 1 , 3 0 0 m m • Spindle slide stroke Z: 8 0 0 or 1 , 0 0 0 m m
