CNC punching machine manufactured in 2016. This TRUMPF TruPunch 5000 S12 features a working range of 3050 x 1550 mm and a maximum material thickness of 8 mm. It has a maximum punching force of 220 kN and can handle workpieces weighing up to 280 kg. If you are looking to get high-quality punching capabilities, consider the TRUMPF TruPunch 5000 S12 machine we have for sale. Contact us for further details.
Overview
- brand: TRUMPF
- year: 2016
- MODEL: TruPunch 5000 S12
- production hours: 46061
- application type: Punching
- Location: Czech Republic
- machine type: CNC Punching Machine
Technical Information - TRUMPF TruPunch 5000 S12
Movement
- X-axis Travel: 3050 mm
- Y-axis Travel: 1550 mm
Technical Specification
- Max. Sheet Thickness: 8 mm
- Punching Force: 220 Kn
Additional Information
Max. workpiece weight: 280 kg
Max. stripper force: 20 kN
Programmable stripper force: approx. 4.5–20 kN
Active die (optional equipment) max. lifting force: 220 kN
Active die (optional equipment) Z2 acceleration: 14 m/s²
Active die (optional equipment) max. speed: 4 m/min
Max. stroke rate (punching, hole spacing 1 mm): 1350 1/min
Max. stroke rate (marking): 3000 1/min
Max. axis speed X axis: 100 m/min
Max. axis speed Y axis: 60 m/min
Max. axis speed X/Y simultaneous: 116 m/min
Max. acceleration X axis: 22 m/s²
Max. acceleration Y axis: 10 m/s²
Rotation C axis, tapping/thread forming: 500 1/min
Number of slots in linear magazine: 25
Number of tools/grippers: 21/4
Number of MultiTool tools/grippers: 21–210/2
Number of grippers, standard/maximum: 4/4
Part removal max. part size – part chute, punching (standard): 500 x 500 mm
Part removal max. part size – fixed chute, punching with support table: 80 x 50 mm
Cycle times tool change time, standard tool (from station to station): 2.8 s
Cycle times MultiTool tool change time: 0.3 s
Accuracy position deviation Pa: ±0.1 mm
Accuracy mean position dispersion Ps: ±0.03 mm
Control color monitor, TFT: 17"
Control touchscreen: Yes

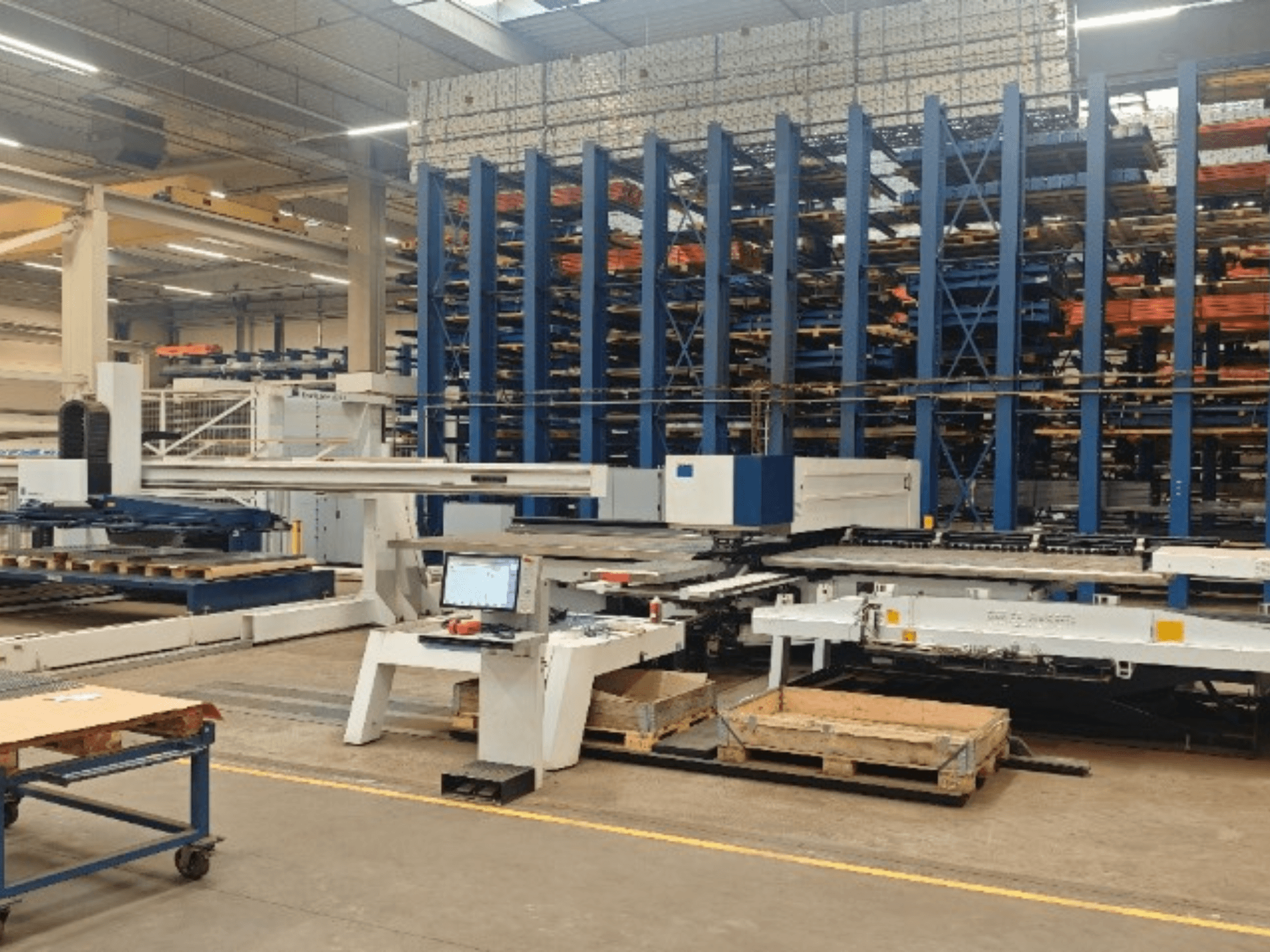

Additional equipment
Storage system
Tooling set (details not specified)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
