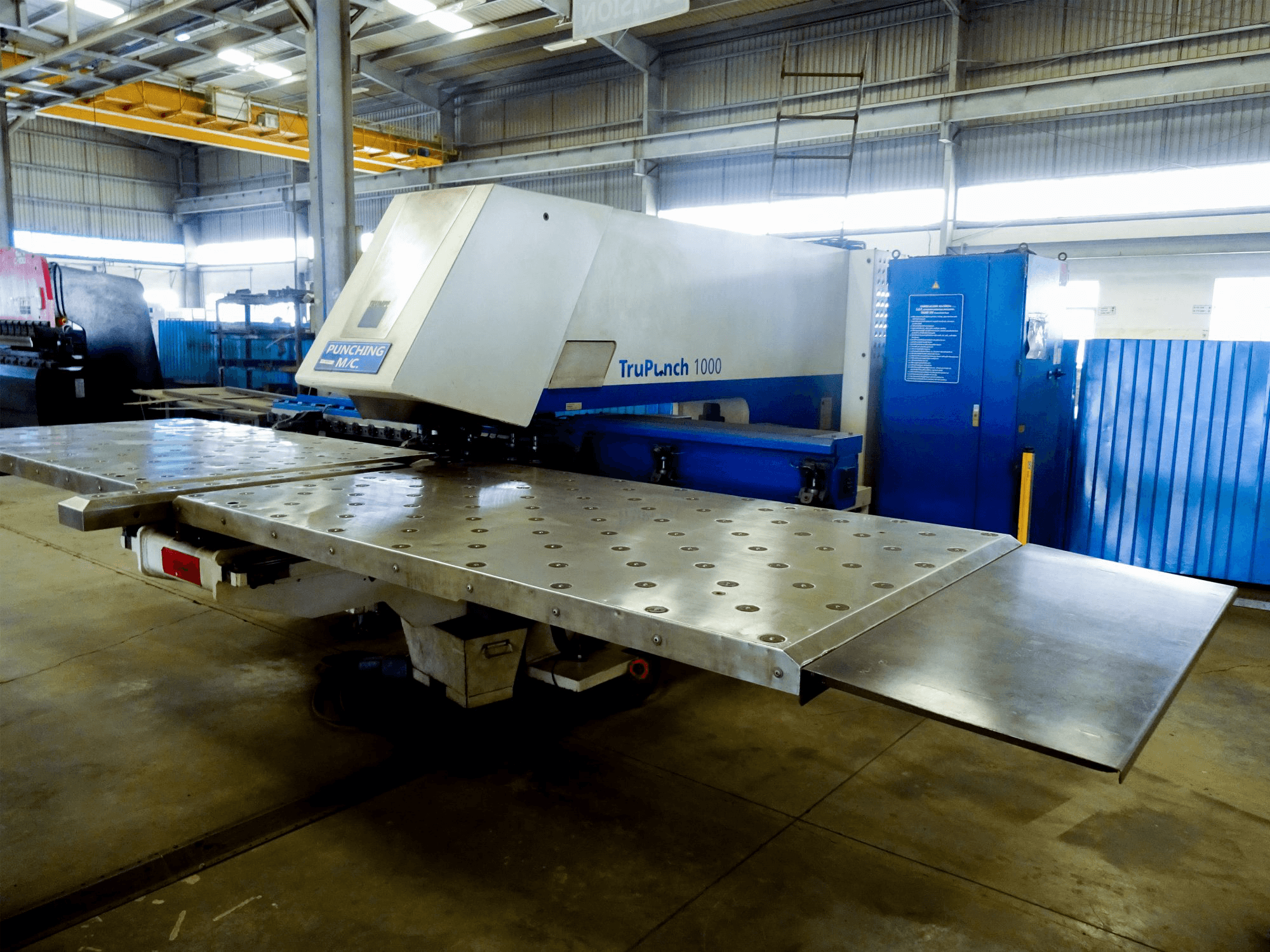

Right view of Trumpf TruPunch 1000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TruPunch 1000

Photo Gallery

TRUMPF - TruPunch 1000IN-PUN-TRU-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Trumpf TruPunch 1000 Turret Punching Machine

Show in original language

This Trumpf TruPunch 1000 Turret Punching Machine was manufactured in 2007 and has been productive for 24000 hours ever since. Operated by a Bosch PNC-P Control unit with advanced software, its small print and compact design deliver more functionality in less space. In the past, this equipment has handled mostly mild steel of up to 2 mm and was utilized for Job Shop tasks, mainly for the Automotive industry. The Trumpf TruPunch 1000 is, indeed, a smart solution for quick start production.

Overview

brand: TRUMPF
year: 2007
MODEL: TruPunch 1000
production hours: 24000
application type: Punching
Location: India
machine type: CNC Punch Press
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF TruPunch 1000

General Data

Measurements width: 6300 mm
Measurements depth: 7000 mm
Measurements height: 2200 mm
Machine weight: 8000 kg

Control Unit

Model: PNC-P
Brand: BOSCH

Main drive

Punching force: 165 kN

Movement

X-AXIS Movement: 2070 mm
Y-AXIS Movement: 1280 mm

Tools

Number of index: 15
Number of stations: 15
Max tool diameter: 76.2 mm

Media

Main electronic connection: 400 V
Air pressure: 6 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
