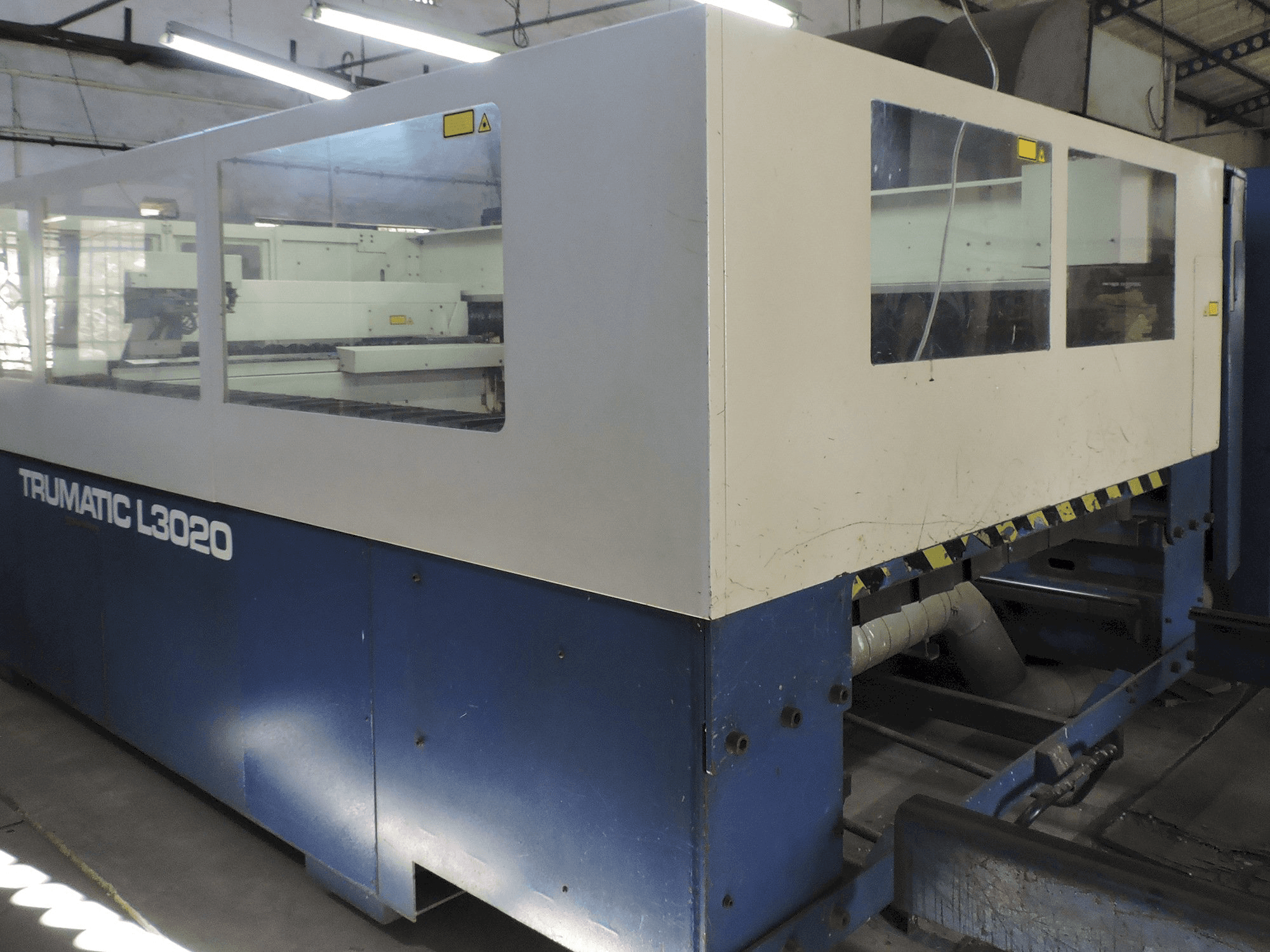

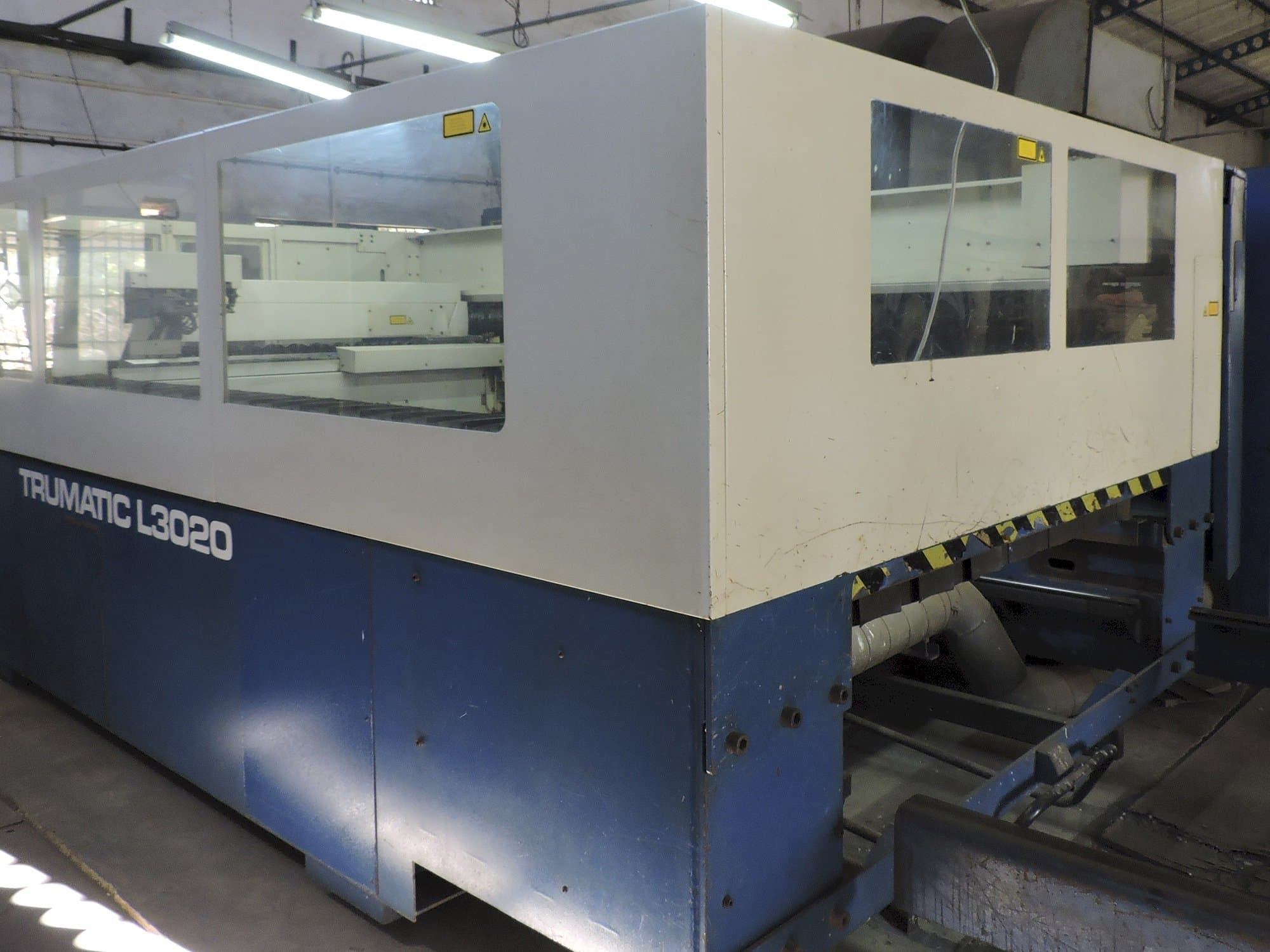

Right view of Trumpf Trumatic L3020 Machine
Right view of Trumpf Trumatic L3020 Machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

TRUMPF - Trumatic L3020IN-LAS-TRU-2006-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Trumpf Trumatic L3020 Laser Cutting Machine was built in 2006 and has a production record of 12956 hours. Equipped with a SIEMENS 84TD Control unit, this CO2 machine incorporates a laser power of 3.2 kW.

Overview

  • brand: TRUMPF
  • year: 2006
  • MODEL: Trumatic L3020
  • production hours: 12956
  • application type: Cutting
  • Location: India
  • machine type: CO2 Laser Cutting Machine
  • availability: Sold
  • control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic L3020

General Data

  • Measurements width: 7000 mm
  • Measurements depth: 9000 mm
  • Measurements height: 2000 mm
  • Machine weight: 11000 kg

Control Unit

  • Model: 84TD
  • CNC main language: English
  • CNC language customizable: Yes
  • Brand: SIEMENS

Main drive

  • Laserpower: 3.2 kW
  • Laser type: CO2
  • Laser brand: Trumpf

Movement

  • X-AXIS Movement: 3050 mm
  • Y-AXIS Movement: 1150 mm
  • Z-AXIS Movement: 115 mm

Max Material thickness

  • Steel: 20 mm
  • Stainless steel: 12 mm
  • Aluminum: 6 mm

Media

  • Main electronic connection: 400 V / 50 Hz
  • Power consumption: 73 kVA

    Additional equipment

    • - Pallet Changer

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
