- ➤ Used TRUMPF TrumaBend V85 S For Sale | gindumac.com

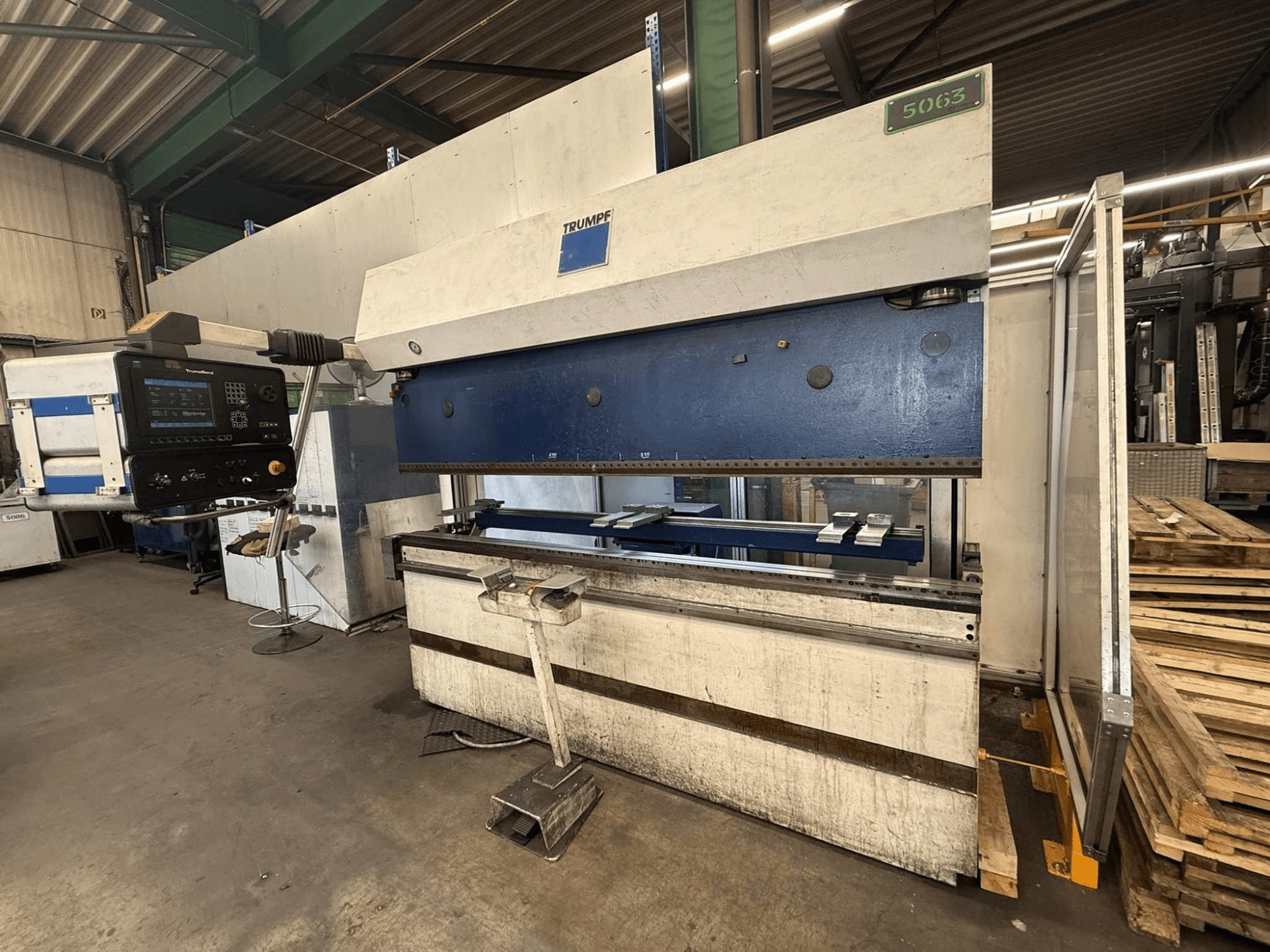

This 4-axis TRUMPF TrumaBend V85 S was manufactured in 1995. It features a press force of 850 kN and a stroke of 215 mm, making it suitable for various bending applications. With a machine weight of 9,450 kg, it offers stability and durability. If you are looking to get high-quality bending capabilities, consider the TRUMPF TrumaBend V85 S press brake we have for sale. Contact us for further details.
Overview
- brand: TRUMPF
- year: 1995
- MODEL: TrumaBend V85 S
- production hours: 85000
- application type: Bending
- Location: Germany
- machine type: Press Brake
Technical Information - TRUMPF TrumaBend V85 S
Dimensions
- Machine Weight: 9450 kg
Movement
- Number of Axes: 4
Technical Specification
- Bending Length: 2050 mm
- Max. Stroke: 215 mm
- Pressing Force: 850 Kn
Additional Information
Max operating pressure: 335 bar
Stopping time: approx. 97 ms
Safety distance: approx. 170 mm
Power supply: 3 × 400 V
Rated current: 22.5 A
Frequency: 50 Hz
Total connected load: 14 kVA
Control voltage: 24 V
Compressed air connection: 6 bar
Axis configuration: 4 axes (Y1 / Y2 / X / R)
Operating hours: approx. 85,000 h
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
