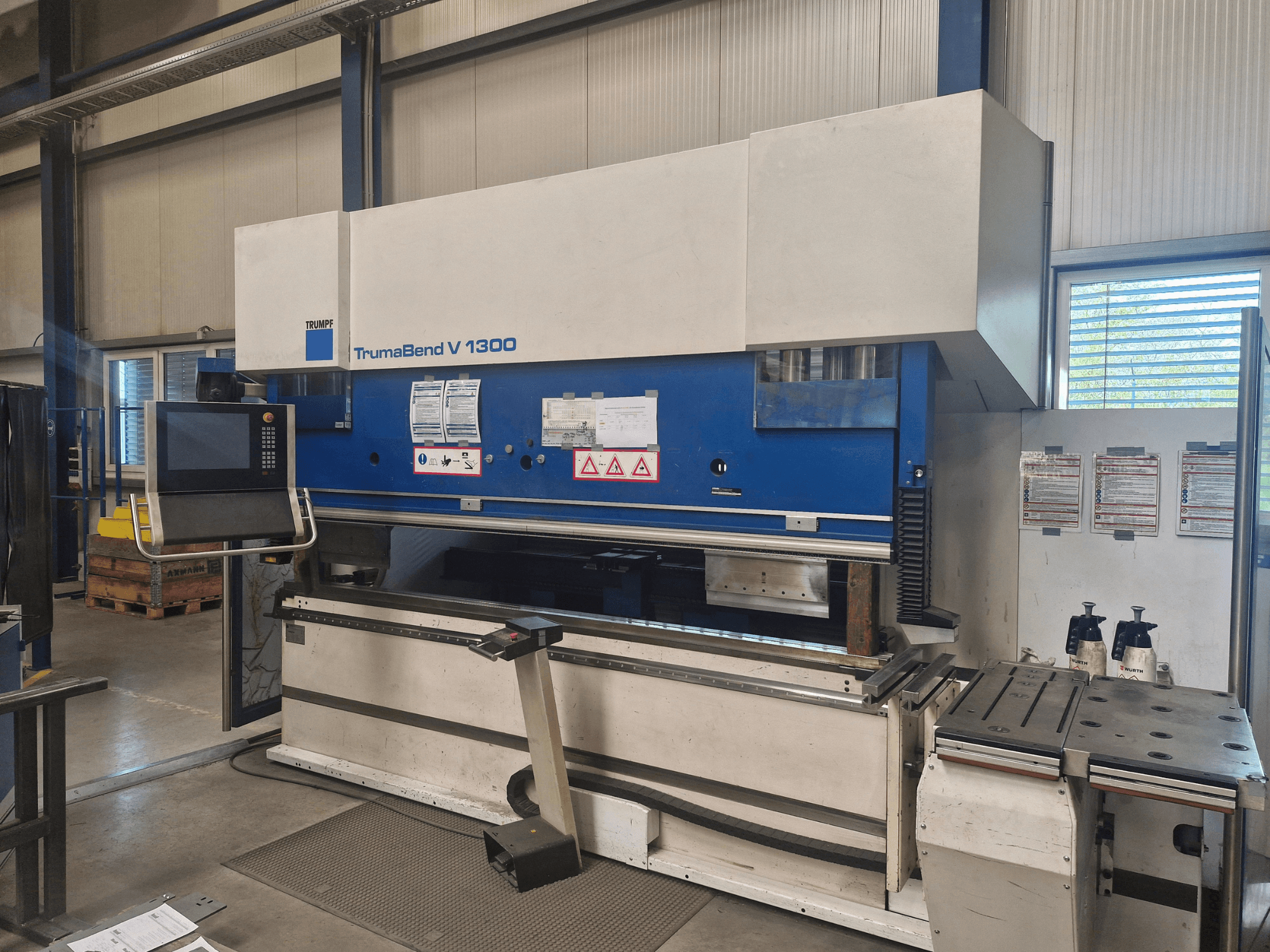

This 6-axis TRUMPF TrumaBend V 1300 was manufactured in 2005. It features a press force of 1300 kN and a bending length of 3230 mm, making it suitable for various bending applications. The machine has a robust weight of 10,200 kg and offers a maximum backgauge range of 860 mm. If you are looking to get high-quality bending capabilities, consider the TRUMPF TrumaBend V 1300 press brake we have for sale. Contact us for further details.
Overview
- brand: TRUMPF
- year: 2005
- MODEL: TrumaBend V 1300
- production hours: 30627
- application type: Bending
- Location: Germany
- machine type: Press Brake
Technical Information - TRUMPF TrumaBend V 1300
Dimensions
- Machine Height: 2840 mm
- Machine Weight: 10900 kg
- Machine Width: 4060 mm
Movement
- Number of Axes: 6
- X-axis Travel: 600 mm
Technical Specification
- Bending Length: 3230 mm
- Pressing Force: 1300 Kn
Additional Information
Free pillar passage: 2690 mm
Throat depth: 420 mm
Table width: 120 mm
Installation height: 385 mm (Standard) / 615 mm (Extended Height)
Working height (with 100 mm die): 1050 mm
Beam stroke: 215 mm (Standard) / 445 mm (Extended Height)
Beam positioning accuracy: 0.005 mm
Beam inclination: ±10 mm
Y-axis rapid/working/return speed: 220 / 0.1–10 / 220 mm/s
X-axis travel: 600 mm; positioning accuracy: 0.04 mm; speed: 0–1000 mm/s; max backgauge range (X): 860 mm
R-axis travel: 250 mm; positioning accuracy: 0.08 mm; speed: 0–330 mm/s
Z-axis travel: 2400 mm; positioning accuracy: 1.00 mm; speed: 0–1000 mm/s
I-axis: Lower tool displacement (pneumatic or CNC-controlled)
V-axis (crowning): Manual or CNC-controlled
Control: TASC 6000 with 15" TFT screen
Storage: 2 × 40 GB hard drives
Interfaces: Parallel, RS232, USB, Ethernet
Electrical connection (connected load): 23 kVA
Pneumatic connection: 6 ± 1 bar
Hydraulic oil volume: 208 liters
Input voltage (measured): 401 V (target 400 V)
Control voltage (measured): 25.70 V (target 24 V)
After-run travel/time: 5 mm (at 220 mm/s) / 33 ms
Total machine hours (05.03.2026): 57,547 h
Total hydraulic hours (05.03.2026): 30,627 h
Additional equipment
BendGuard safety system
Foot switch included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
