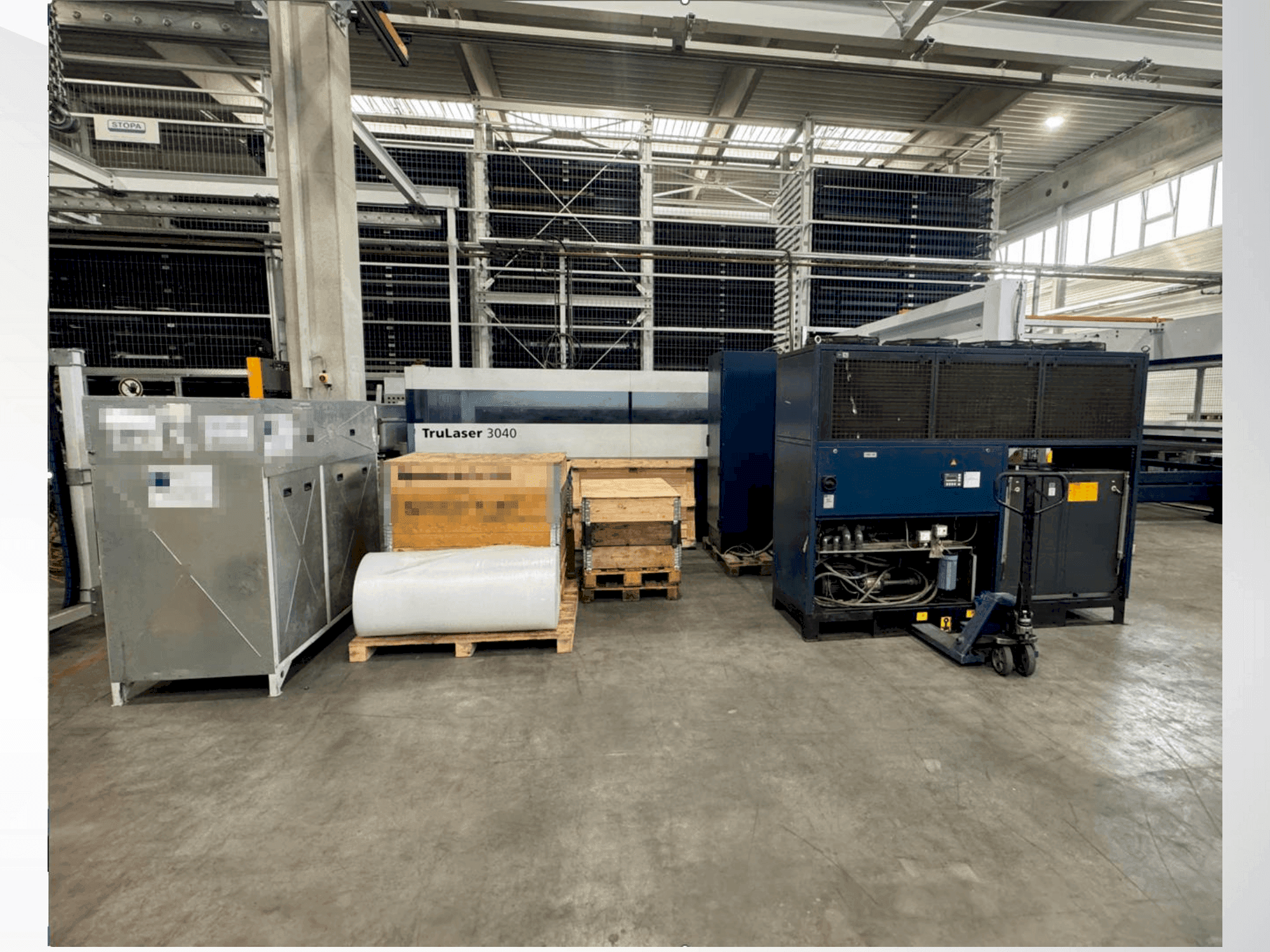

TRUMPF - TruLaser 3040DE-CUT-TRU-2015-00001

Additional equipment

• Platform installation possible

• Machine was connected to STOPA Universal large-scale storage system (4x2 metres)

• Working area 4000x2000mm

• Closed machine frame with integrated laser unit / Movement unit for high-precision processing / Torque drive in combination with linear direct drives / Closed beam guidance / Single cutting head strategy / Cooling unit

• Automatic pallet changer in longitudinal direction with extended pallet pull-out / 17” touch factory screen / ergonomic control panel with touch.color screen / Work area lighting / Position laser diode

• spraying device / PierceLine, FocusLine, NitroLine, PlasmaLine

• Co2 laser TruFlow 5000 with optimized standby mode / Maintenance-free turbo radial blower / High-frequency excitation / TASC laser control, laser power control, laser logbook function

• Lens cutting head with 250mm lens / Universal quick-change device (UTI) with bus connection / LensLine with status check / ControlLine: Height control and sheet outer edge detection / Lens with RFID chip

• Laser ON / beam on 78187h/26610h

Machine Benefits

Technical Machine Benefits

• Annual maintenance by trumpf

• Sinumerik 840d sl

• Simple operation and workshop programming / acquired workshop programming

• Fast post-production / integrated technology data / automatic switch-off, contourline, fastline, flyline, microweld, production plan, adjustline, teleservice via internet

• Data transmission: usp interface, rj-45 network connection

• Transmitter tube was replaced in mid-2022

Extra Information

With BrightLine, automatic lens and nozzle technology package, wide cross conveyor belt with tilting container, cleaning brush, platform design machine,Discharge line connection, more powerful compact dust extractor, third position without unloading platform, Liftmaster, bar spacing 33mm / Important: Pallet change is no longer possible due to the STOPA conversion to auxiliary pallet operation. Interface for STOPA is installed.

The machine was connected to STOPA and the safety technology was adapted accordingly. If the machine is used as a STAND ALONE, it must be reset and light barriers installed. These are not included in the scope of delivery.
