➤ Used TRUMPF TruBend 3120, Press For Sale | gindumac.com

Show in original language

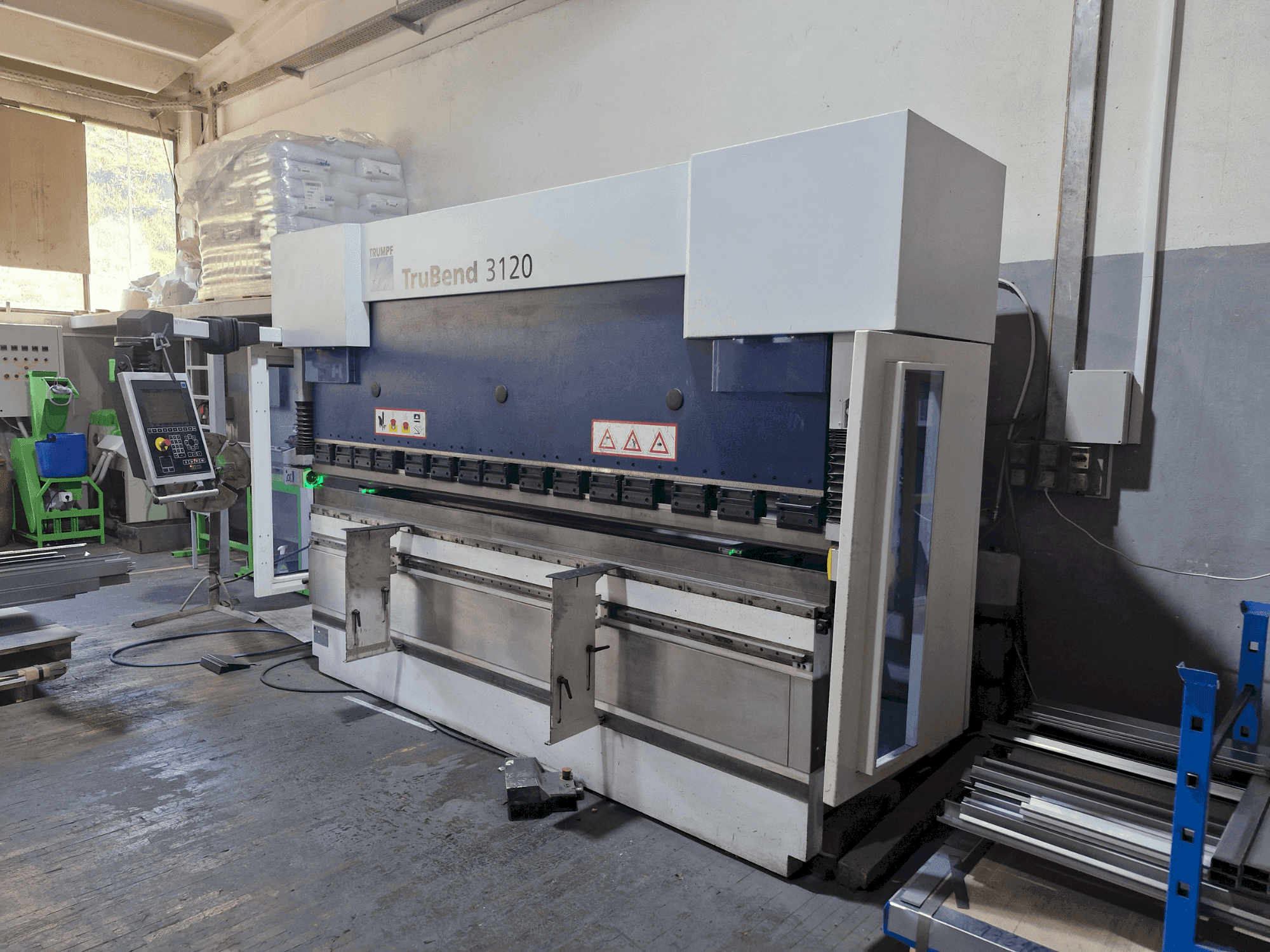

This 6-axis TRUMPF TruBend 3120 press brake was manufactured in 2012. It features a press force of 120 tons, a bending length of 3060 mm, and a stroke of approximately 365 mm. With a throat depth of 420 mm and a table height of about 900 mm, it offers robust performance for precise bending tasks. If you are looking to get high-quality bending capabilities, consider the TRUMPF TruBend 3120 machine we have for sale. Contact us for more information.

Overview

brand: TRUMPF
year: 2012
MODEL: TruBend 3120,
application type: Bending
Location: Slovenia
machine type: Press Brake

Technical Information - TRUMPF TruBend 3120,

General Data

Machine weight: 8000–9000 kg

Main drive

Pressing force: 120 t KN
Bending length: 3060 mm
Stroke: 365 mm
Number of axis: 6

Clamping unit

Max open daylight: 615 mm

Additional Information

Distance between uprights: 2,690 mm
Throat depth: 420 mm
Table height: approx. 900 mm
Speeds:
- Rapid approach: ~180 mm/s
- Working: ~10 mm/s
- Return: ~180 mm/s
Number of axes: up to 6 (Y1, Y2, X, R, Z1, Z2)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
